Remove driver's airbag unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ignition key.
  2. Disconnect the battery and cover terminal or battery.
  3. Undo the -fastening screws-  (2 ea.) with a socket wrench insert for inside Torx T 30 (at least 50 mm long).

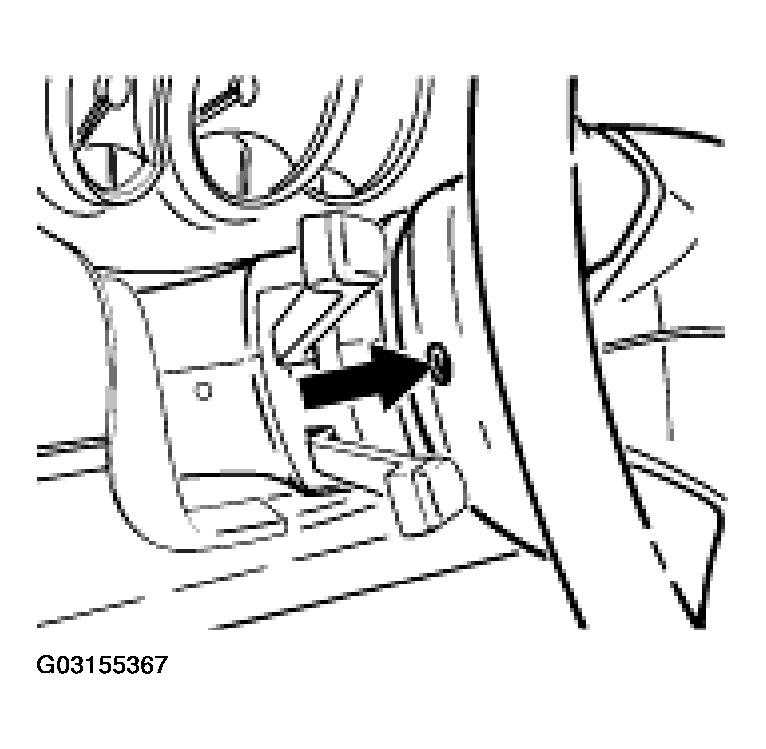

    Fig 1: Undoing Driver's Airbag Unit Fastening Screws
    G03155367Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:
    • The self-locking screws must be replaced every time they are undone!
    • To do this, undo the retaining bracket of the airbag unit (3 screws) in the steering wheel!
  4. Disconnect the electrical plug connection.
WARNING: Danger of injury and damage to property as a result of incorrect handling of airbag units!
Please observe the following points:
  • The airbag unit must always be deposited so that the airbag opening faces upwards!
  • If removed for an extended period, the airbag unit must be kept in a locked place!
  • Observe the safety regulations!
