Installing belt tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

See SAFETY REGULATIONS FOR VEHICLES WITH AIRBAG AND BELT TENSIONER .

Install belt tensioner. Observe the direction of travel -arrow 3-
Position the belt on the roll-over bar with the aid of the guide pin -D-.
Tighten fastening screw -C-, tightening torque: 50 Nm (37 ftlb.).
Insert electrical plug -A- in the belt tensioner.
Insert lead -B- into the lead mount.

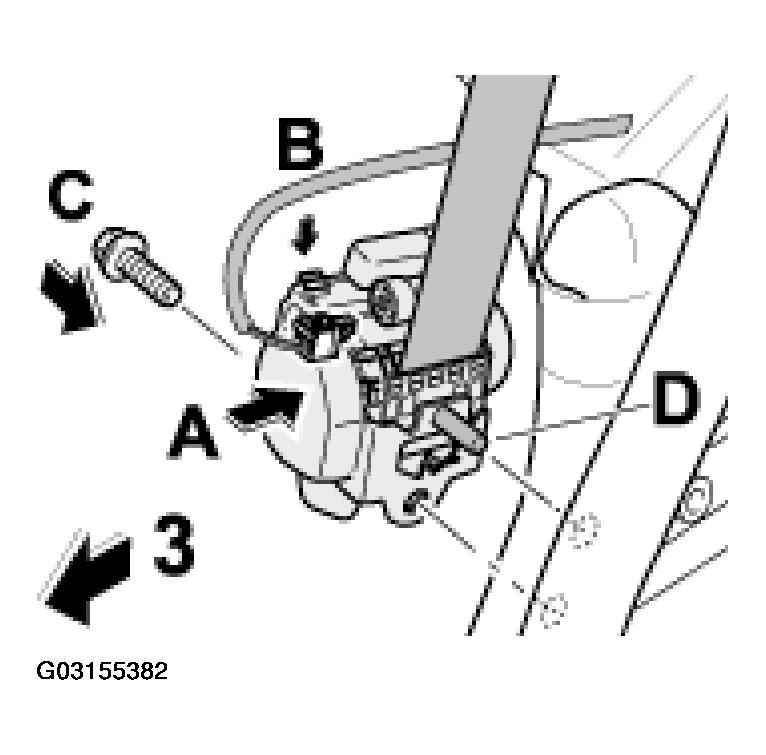

Fig 1: Installing Belt Tensioner

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Push in fuse -1- with a screwdriver in the -direction of travel- until the fuse engages.
By gently pulling on the belt -arrow 2- , check the winding ability of the belt strap.

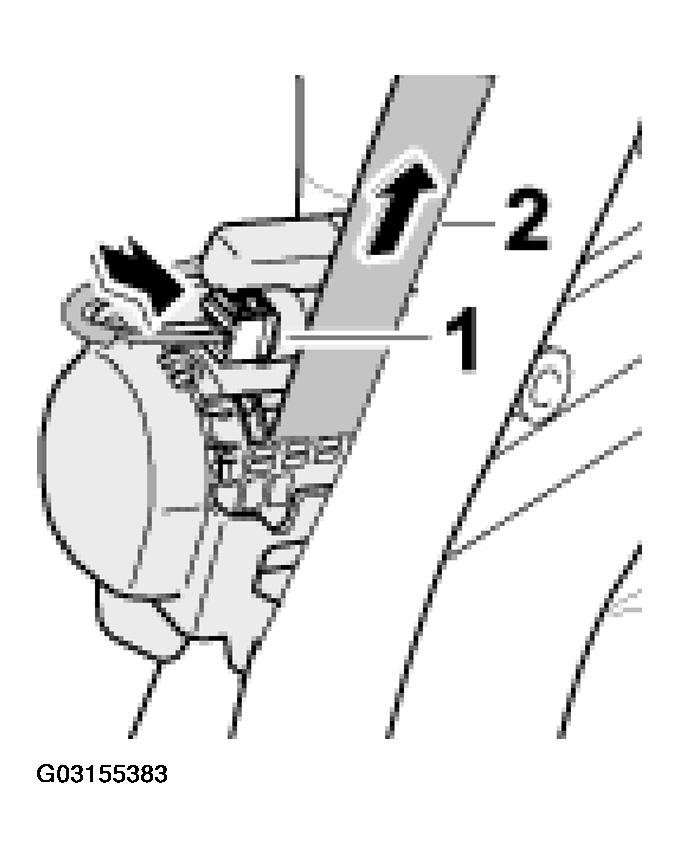

Fig 2: Pushing In Fuse

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Read out the fault memory with the Porsche System Tester.

See REMOVING AND INSTALLING FRONT THREE-POINT BELT .
