Disposal of airbag and belt tensioner units: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

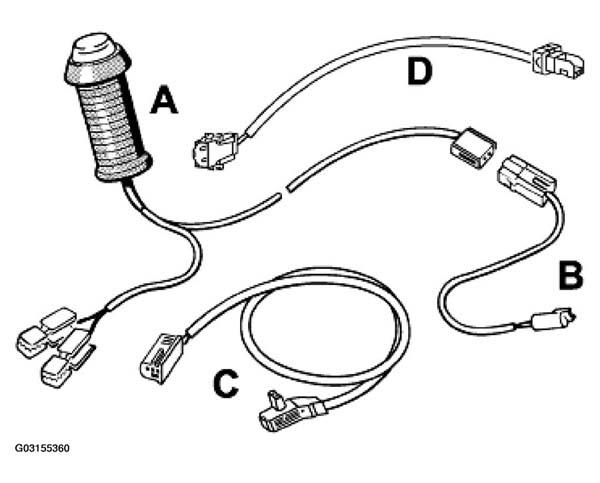

Fig 1: Identifying Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Ignition cable for belt tensioner

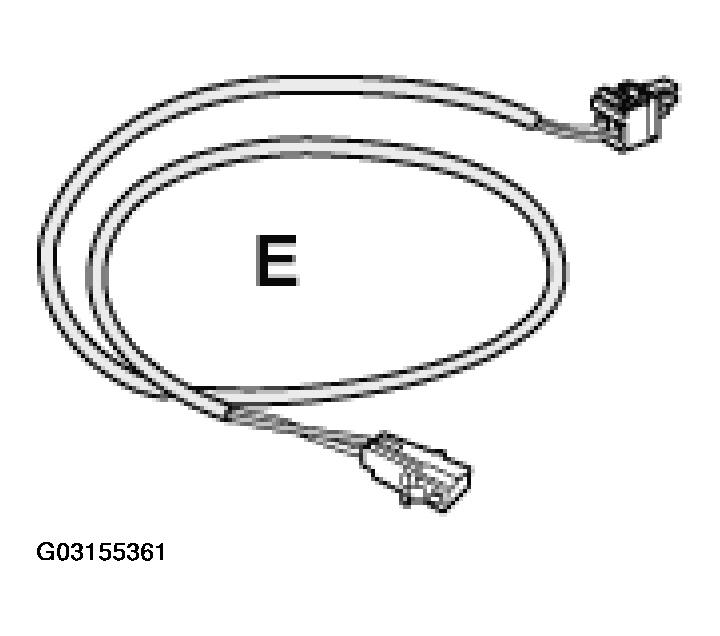

Fig 2: Identifying Ignition Cable For Belt Tensioner

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL

Item

Designation

Special tool

Remarks

Ignition device

9257⁽¹⁾

Ignition cable

9567

For driver's airbag

Ignition cable

9566

For passenger's airbag

Ignition cable

9257/2

For side airbag

Ignition cable

9257/3

For belt tensioner

⁽¹⁾	Order if required
