Checking belt strap

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Pull out the belt strap on the automatic belt device fully.
Check the belt strap for soiling; clean, if necessary, with mild soap suds. When drying, avoid direct sunshine.

Damage type 1
If one of the damage types shown below -damage types 1 and 2- is found on an accident vehicle, the seat belt and belt buckle must be replaced.

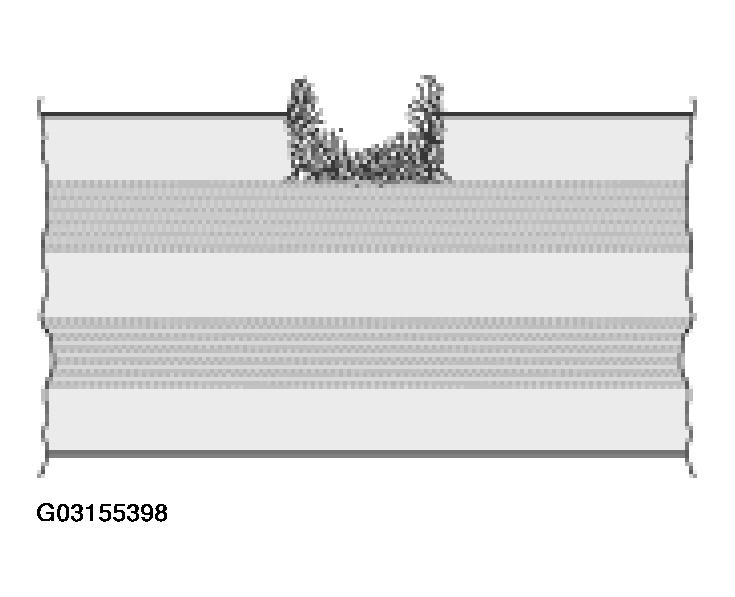

Fig 1: Identifying Belt Damage Type 1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Damage type 2
If damage such as -damage type 1,2, 3- is found on a vehicle not involved in an accident, it is sufficient to replace the damaged seat belt.

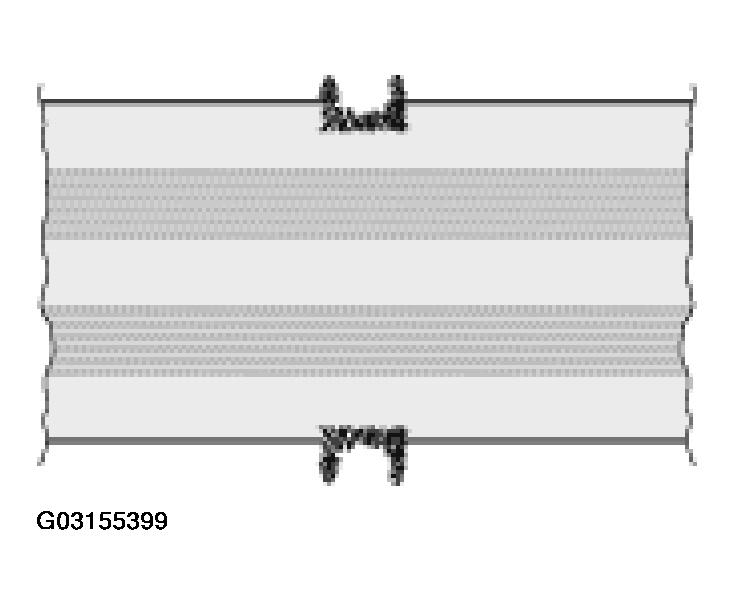

Fig 2: Identifying Belt Damage Type 2
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Damage type 3
Burn marks from cigarettes, or similar.

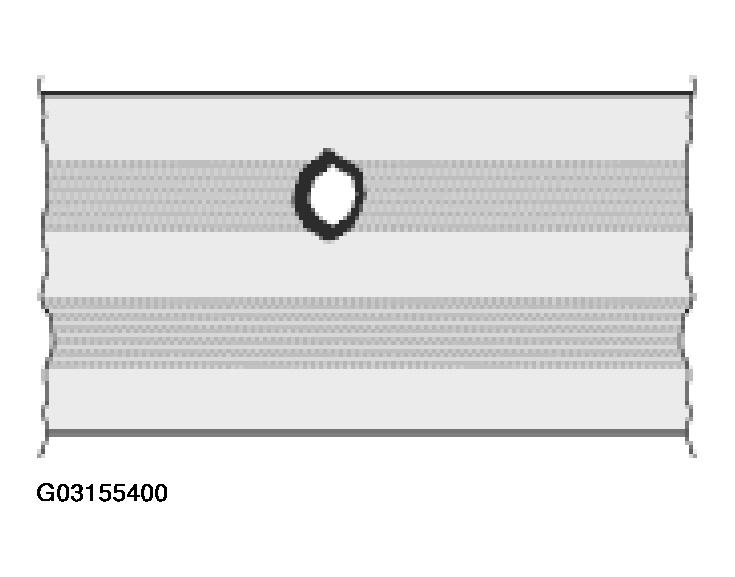

Fig 3: Identifying Belt Damage Type 3
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Damage type 4
The belt tensioner must always be replaced if it has been triggered. The seat belt is damaged by the deflector -damage type 4-.

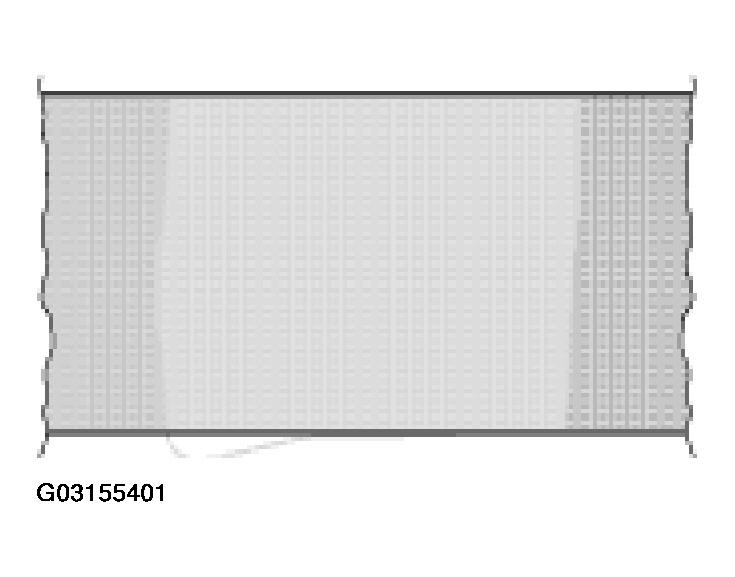

Fig 4: Identifying Belt Damage Type 4
Courtesy of PORSCHE OF NORTH AMERICA, INC.
