Removing and installing windstop: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

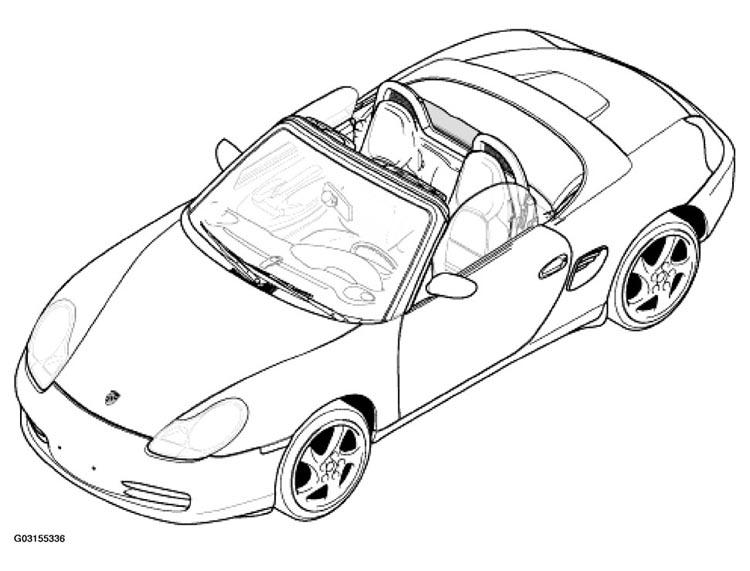

Fig 1: Identifying Windstop

Courtesy of PORSCHE OF NORTH AMERICA, INC.

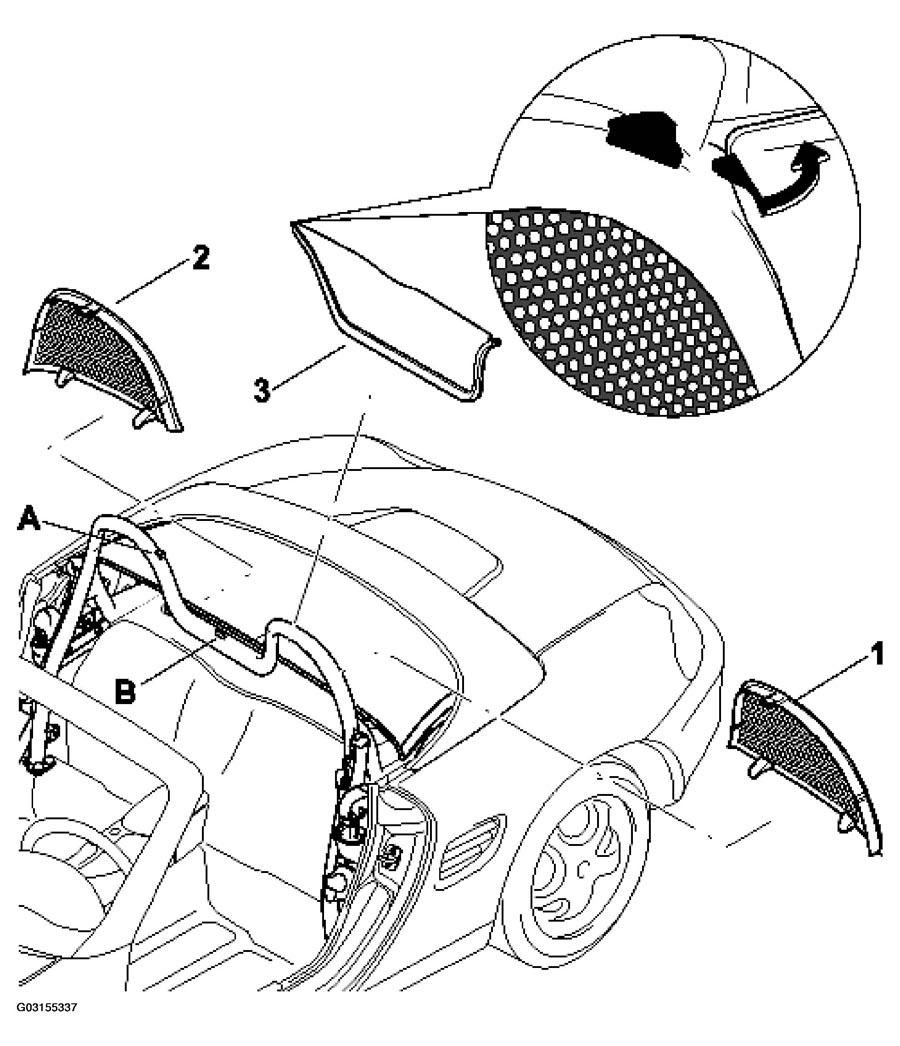

Fig 2: Exploded View Of Windstop Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION: Danger of damage if windstop parts are not fitted correctly.

Windstop parts must always be fitted or engaged correctly, especially when driving with the convertible-top open.

REMOVING & INSTALLING WINDSTOP

No.	Designation	Qty.	Removal	Installation
1	Left outer windstop part	1	Press outer windstop parts -1- . See Fig 2 .	Insert outer windstop parts -1- . See Fig 2 .
2	Right outer windstop part	1	Press outer windstop parts -2- . See Fig 2 .	Insert outer windstop parts -2- . See Fig 2 .
3	Centre windstop part	1	Open one of the two locking levers on the windstop -3-arrow--3- . See Fig 2 .	First insert into the central mount, then engage the two upper fastening points.
