Removing sun visors

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detaching sun visor
    1. Unclip cover -1-  with a screwdriver and unscrew the fastening screw -2-  .
    2. Pull off the sun visor -3-  from the bearing pedestal towards the centre of the car.

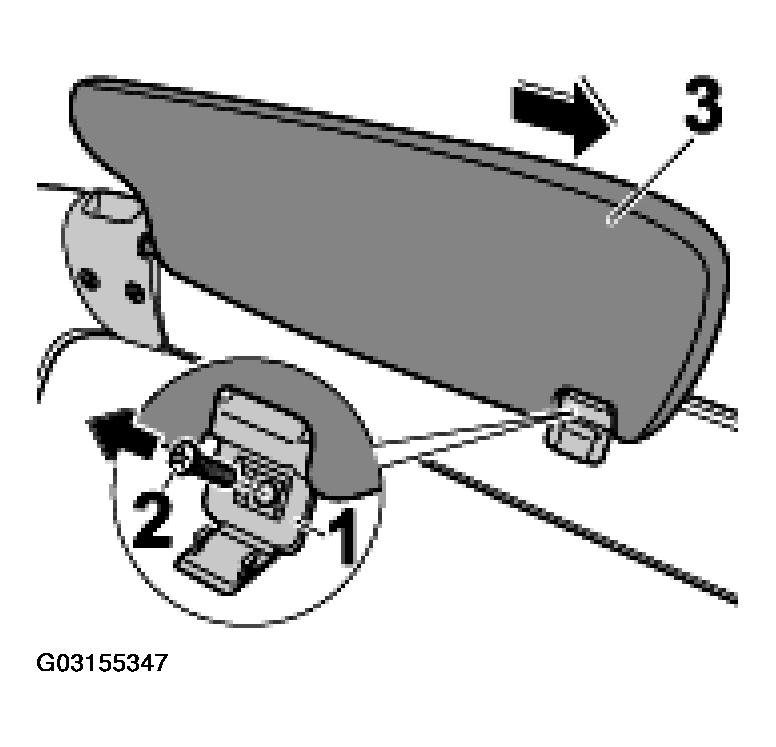

Fig 1: Removing Sun Visors
G03155347Courtesy of PORSCHE OF NORTH AMERICA, INC.
