Replacing pneumatic shock absorber

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removing the pneumatic shock absorber

    Press the pneumatic shock absorber -1-  out of the fastening tab -arrow B-.  Turn the pneumatic shock absorber by 90° anti-clockwise in the direction of arrow -A-  and guide it out of the glove compartment. See Fig 1 .

    2 - Installing the pneumatic shock absorber

    Insert the pneumatic shock absorber -1-  and turn it 90° clockwise in the direction of arrow -A-  . Insert the pneumatic shock absorber into the fastening tab towards the -direction of arrow B-  . See Fig 1 .

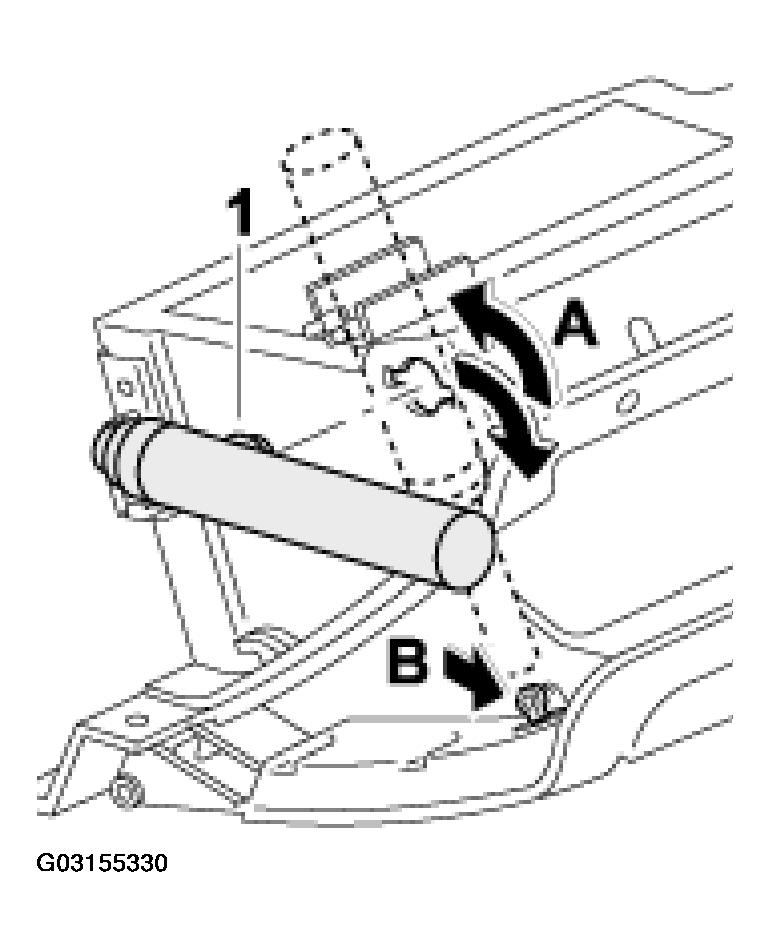

Fig 1: Replacing Pneumatic Shock Absorber
G03155330Courtesy of PORSCHE OF NORTH AMERICA, INC.
