Installing lid for glove compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

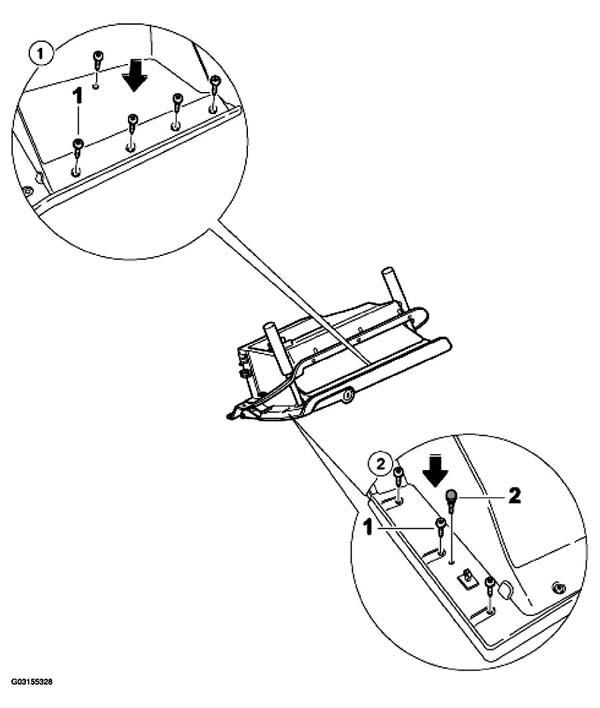

Fig 1: Installing Lid For Glove Compartment Components
G03155328Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING LID FOR GLOVE COMPARTMENT INSTRUCTIONS

No. Procedure Instructions
  Checking rubber stop Before installing the glove compartment lid, check the rubber stop -2-  . See Fig 1 .
1 Screwing in the front fastening screws Screw in front fastening screws -1-  . See Fig 1 .
2 Screwing in fastening screws at the side Screw in fastening screws -1-  . See Fig 1 .
