Disassembling sun visor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

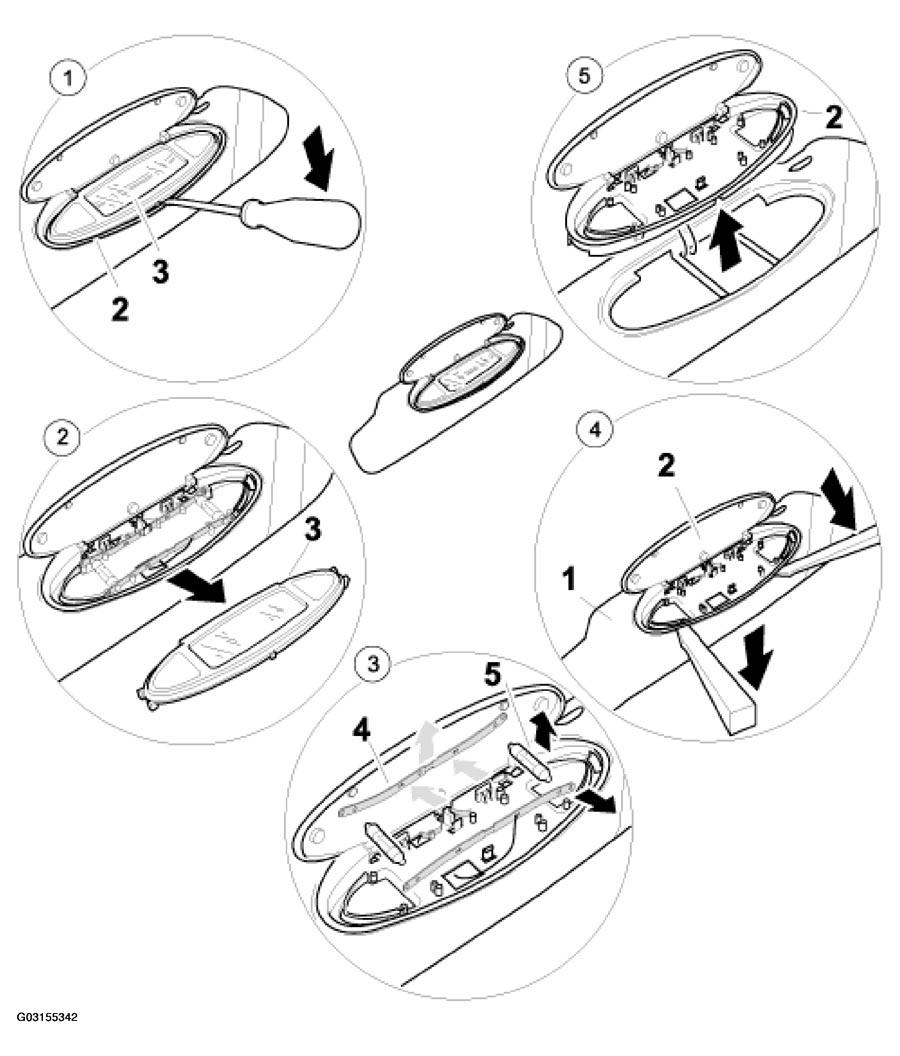

Fig 1: Disassembling Sun Visor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DISASSEMBLING SUN VISOR INSTRUCTIONS

No.	Procedure	Instructions
1	Unclip mirror insert -3- . See Fig 1 .	Insert a narrow screwdriver between the mirror insert -3-2- . See Fig 1 .
2	Remove mirror insert -3- . See Fig 1 .	Pull the mirror insert -3-2- . See Fig 1 .
3	Remove bulb -5-4- . See Fig 1 .	Remove the Sofitte 12V/3W bulb -5-4- . See Fig 1 .
4	Unclip mirror housing -2- . See Fig 1 .	Insert a narrow plastic spatula between the mirror housing -2-1- . See Fig 1 .
5	Remove mirror housing -2- . See Fig 1 .	Take the electric lead out of the mirror housing -2- . See Fig 1 .
