Assembling sun visor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

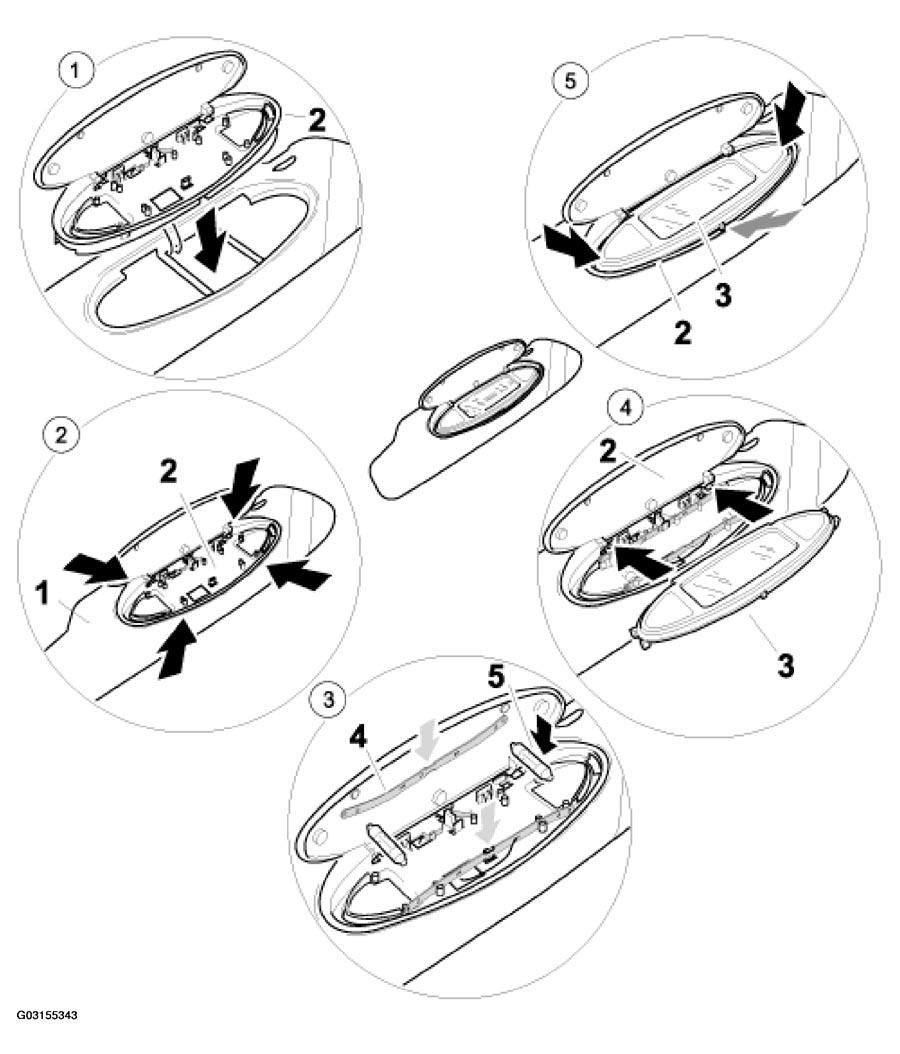

Fig 1: Assembling Sun Visor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ASSEMBLING SUN VISOR INSTRUCTIONS

No.	Procedure	Instructions
1	Insert mirror housing -2- . See Fig 1 .	Insert electric lead into the mirror housing -2- . See Fig 1 .
2	Press in mirror housing -2- . See Fig 1 .	Press the mirror housing -2- . See Fig 1 .
3	Insert contact clips -4-5- . See Fig 1 .	Position the contact clips -4-5- . See Fig 1 .
4	Position mirror insert -3- . See Fig 1 .	Position the lugs on the left and right of the mirror insert -3-2- . See Fig 1 .
5	Clip in mirror insert -3- . See Fig 1 .	Clip the mirror insert -3-2- . See Fig 1 .
