Disassembling and assembling centre console - as of MY 1996: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

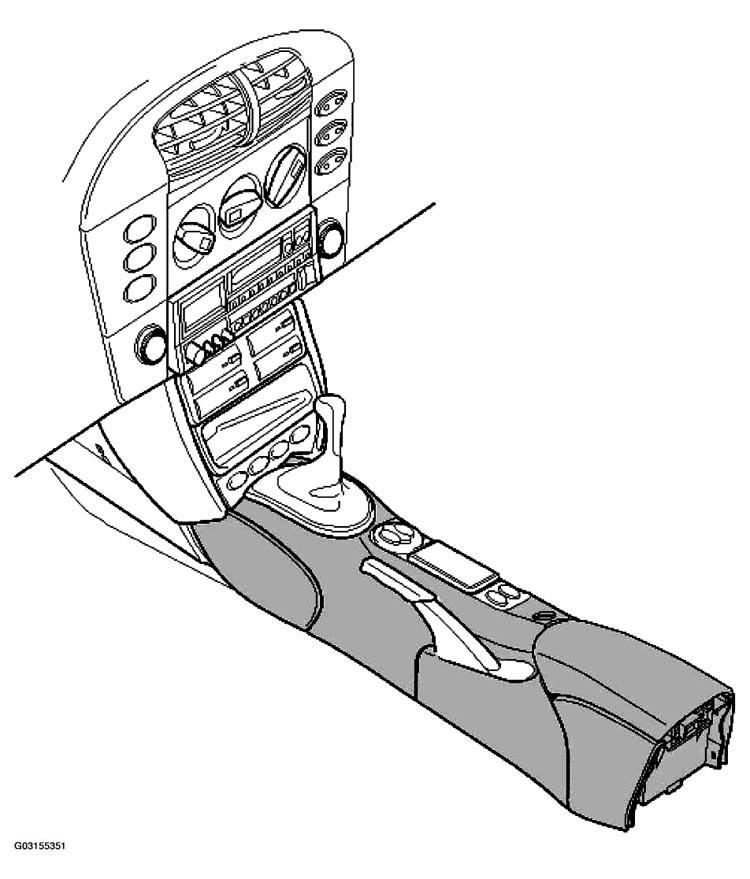

DISASSEMBLING & ASSEMBLING CENTRE CONSOLE - AS OF MY 1996

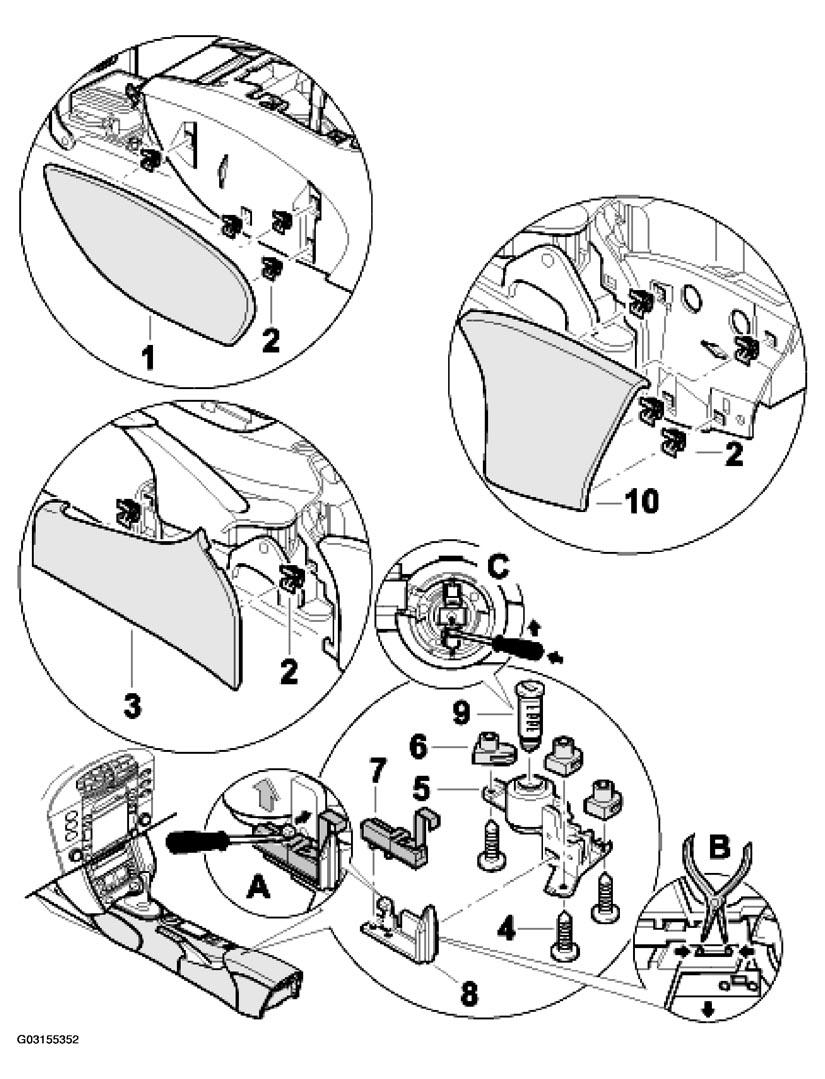

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Cover, front left | 1 | Unclip. | Clip in. |
| 2 | Clip | 28 | Inspect and replace if necessary | |
| 3 | Cover, centre left | 1 | Unclip. | Clip in. |
| 4 | Fastening screws | 3 | ||
| 5 | Lock support | 1 | ||
| 6 | Plastic nuts | 7 | ||
| 7 | Microswitch | 1 | From the console -8-inset A--7- . See Fig 2 . | Clip the microswitch -7-8- . See Fig 2 . |
| 8 | Console | 1 | Press the locking tabs of the console -8-inset B--5- . See Fig 2 . | Position console -8-5- . See Fig 2 . |
| 9 | Lock barrel | 1 | Press in the locking tabs in -inset C--9-5- . See Fig 2 . | Press the lock barrel -9-5- . See Fig 2 . |
| 10 | Cover, rear left | 1 | Unclip. | Clip in. |
