Disassembling and assembling cover for the oddments tray
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
DISASSEMBLING & ASSEMBLING COVER FOR ODDMENTS TRAY

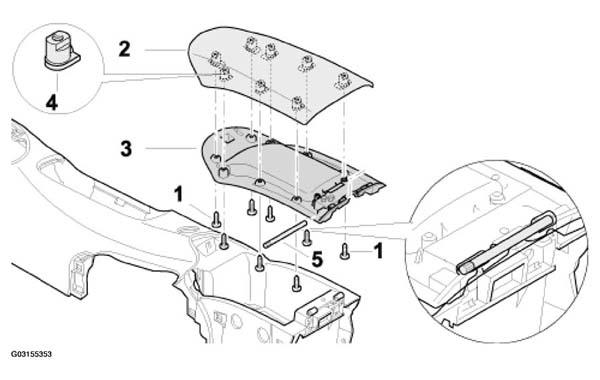

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screws | 8 | Unscrew tightening torque (Torx): 0.9 Nm (0.5 ftlb.). | |
| 2 | Cover, oddments tray | 1 | ||
| 3 | Lower section of oddments tray cover | 1 | ||
| 4 | Plug-in nut | 8 | Inspect and replace if necessary. | |
| 5 | Hinge pin | 1 | Press the hinge pin out -5-3- . See Fig 1 . | Position lower section of oddments tray cover -3-5- . See Fig 1 . |
