Replacing elevating element

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replacing elevating element

    Removing elevating element

    1. See REMOVING AND INSTALLING MOTOR FOR REAR SPOILER
    2. Unscrew fastening screws -4-  from the elevating element -3-  . See Fig 1 .
    3. Remove cover -1-  , sealing ring -2-  and water drain hose -4-  . See Fig 1 .

      Installing elevating element

    4. Push on cover -1-  , sealing ring -2-  and water drain hose -4-  . See Fig 1 .
    5. Position elevating element -3-  on the carrier and tighten fastening screws -4-  . See Fig 1 .
    6. See REMOVING AND INSTALLING MOTOR FOR REAR SPOILER

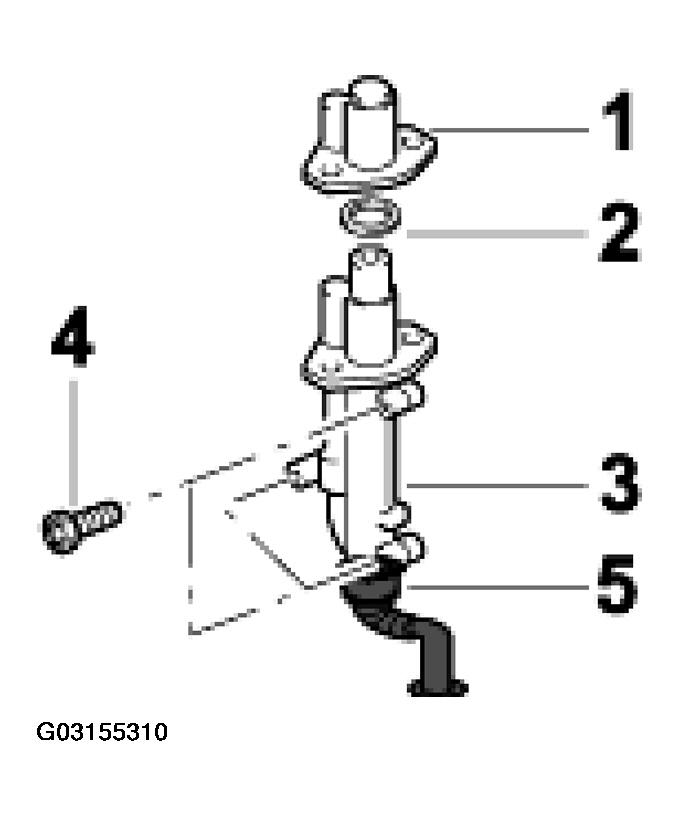

    Fig 1: Replacing Elevating Element For Rear Spoiler
    G03155310Courtesy of PORSCHE OF NORTH AMERICA, INC.
