Checking with the temperature probe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the tip of the sensor to measure from the outside on the centre of the mirror glass.

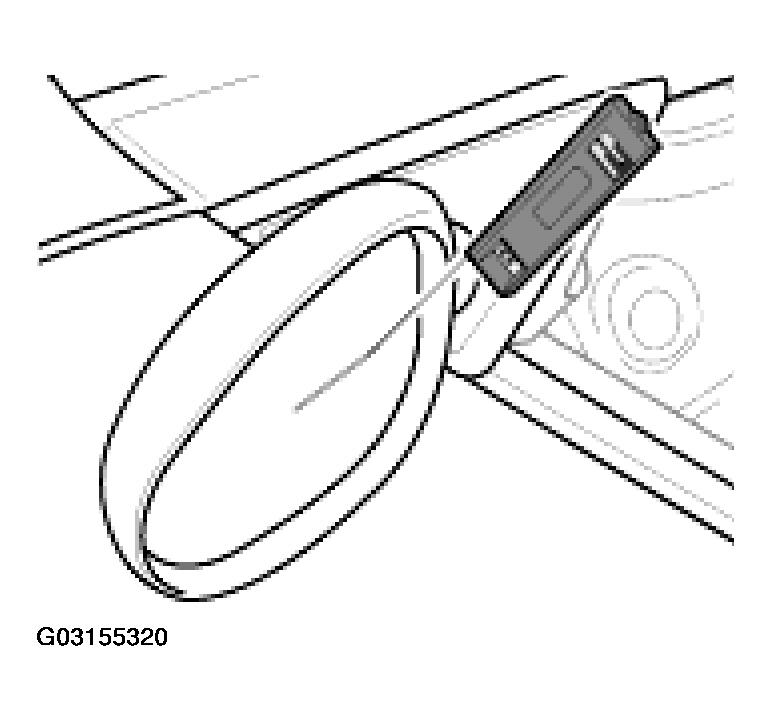

    Fig 1: Checking Mirror Glass With Temperature Probe
    G03155320Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. After switching on at room temperature and a period of 1 minute, the temperature must increase by approx. 2 degrees.
  3. If no temperature increase is determined, the fault must be detected on the basis of the wiring diagram.
