Overview of tools and materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

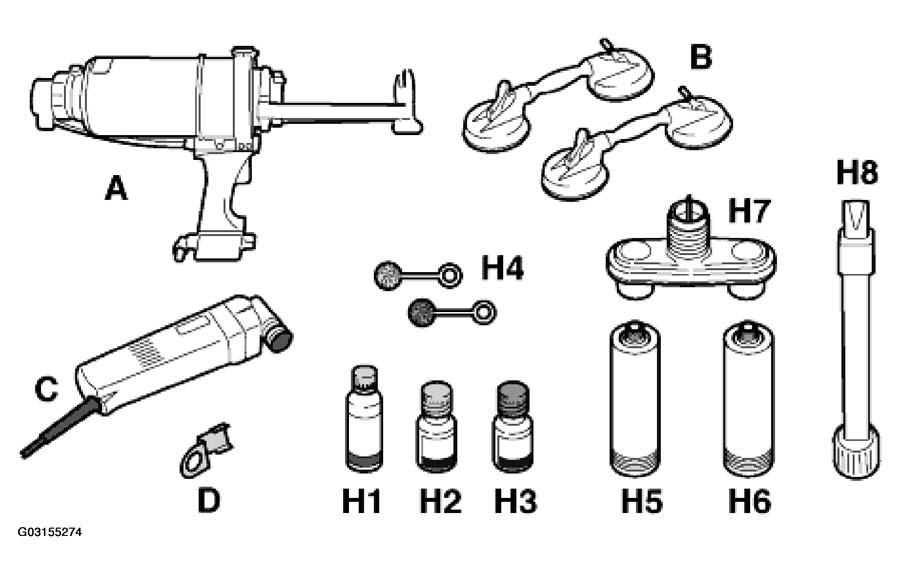

Fig 1: View Of Tools And Materials (1 Of 2)
G03155274Courtesy of PORSCHE OF NORTH AMERICA, INC.
COMPONENTS DESIGNATION (A, B, C, D, H)

Item Designation Source Remarks
-A-
-B-
-C-
-D-
-H-     Contains set components H1-H8
COMPONENTS DESIGNATION (H)

Item Designation Item Designation
-H1- Cleaning solution -H5- Cartridge, component A
-H2- Primer -H6- Cartridge, component B
-H3- Activator -H7- Mixing nozzle
-H4- Swab -H8- Processing nozzle

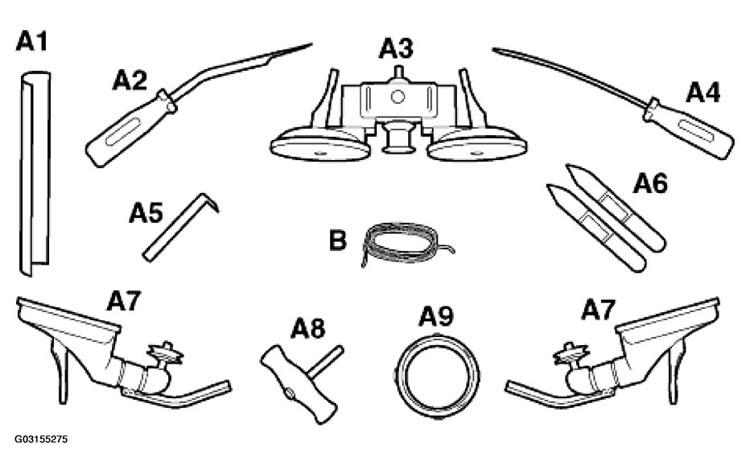

Fig 2: View Of Tools And Materials (2 Of 2)
G03155275Courtesy of PORSCHE OF NORTH AMERICA, INC.
COMPONENTS DESIGNATION (A, B)

Item Designation Remarks
-A-   Contains set components A1-A9
-B-
COMPONENTS DESIGNATION (A)

Item Designation Item Designation
-A1- Guide rails -A6- Filler
-A2- Cutting tool (wire holder) -A7- Steering roller with arm bracket
-A3- Spooling device -A8- Handle
-A4- Awl -A9- Square cutting wire
-A5- Guide rails
