Test and adjusting values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
TEST & ADJUSTING VALUES
| Designation | Dimension | Note | ||
|---|---|---|---|---|
| Adjustment dimension of the bumper to the holder | - | 190 | mm | |
| Adjustment dimension of the holder to the lower edge of the rear lid | - | 54 | mm | |
| Adjustment dimension of the rear lid to the lower edge of the rear spoiler | - | 39 | mm | |
| Correct assembly of the heat shields | - | |||

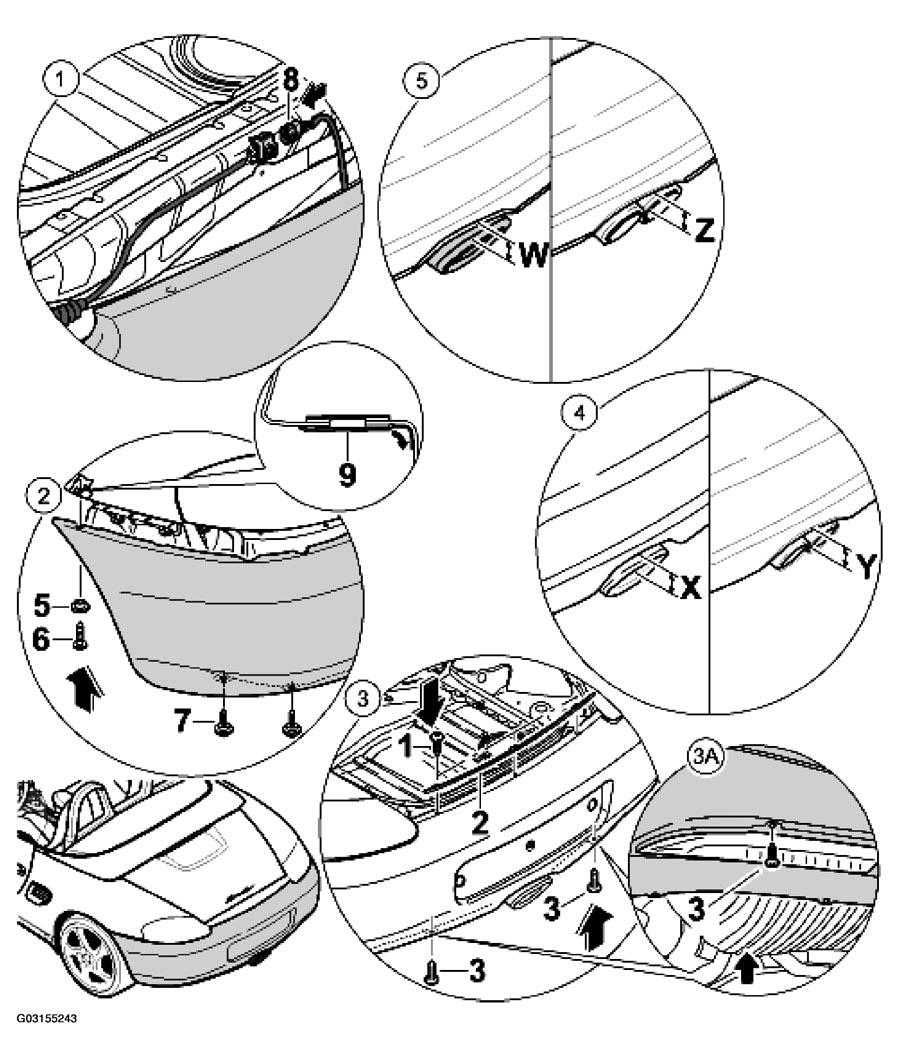

| Minimum distance of tailpipe to rear spoiler up to model year 2002 | -X, Y- in Figure | 30 | mm | Boxster S Boxster |
| Minimum distance of tailpipe to rear spoiler as of model year 2003 | -Z- in Figure | 30.8 | mm | Boxster S |
| -W- in Figure | 23.8 | mm | Boxster | |
