Installing rear bumper
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Damage will result if deformed heat shields are fitted!
- Damaged or distorted heat shields must be straightened or replaced.
- Check heat shields for deformation, bonding (detachment of the aluminium layers), tears and missing or damaged sealing strips.
- After assembling the bumper, check the heat shields for leaks.
INSTALLING REAR BUMPER PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

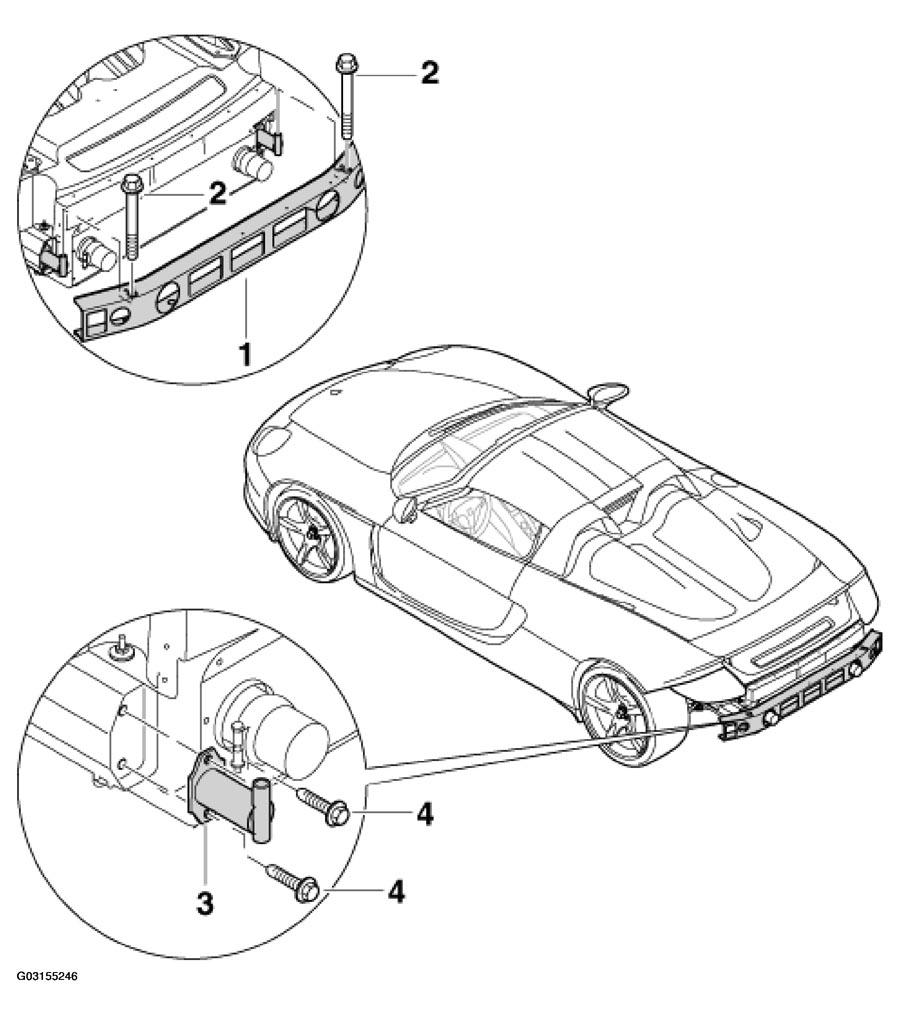

| 1 | Installing impact pipe -11-11 A- | Position impact pipe -11-11 A--12-12 A-10-10A- |
| 2 | Installing bottom exhaust system heat shield -14- | Screw on bottom exhaust system heat shield -14-8-7- |
| 3 | Installing rear bumper -6--(6A)- | Position rear bumper -13, (13A)--14-6, 6A- |
| 4 | Installing holders -4- | Position holder -4-3- |
| Check the adjustment dimensions of the rear bumper and the assembly of the heat shield and correct if necessary | ||
| 5 | Putting on anti-chafing film -1- | Put on sheetmetal nut -2-1-X = 8 mm- |
| Installing rear spoiler | See INSTALLING REAR SPOILER |
