Installing front spoiler
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING FRONT SPOILER PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

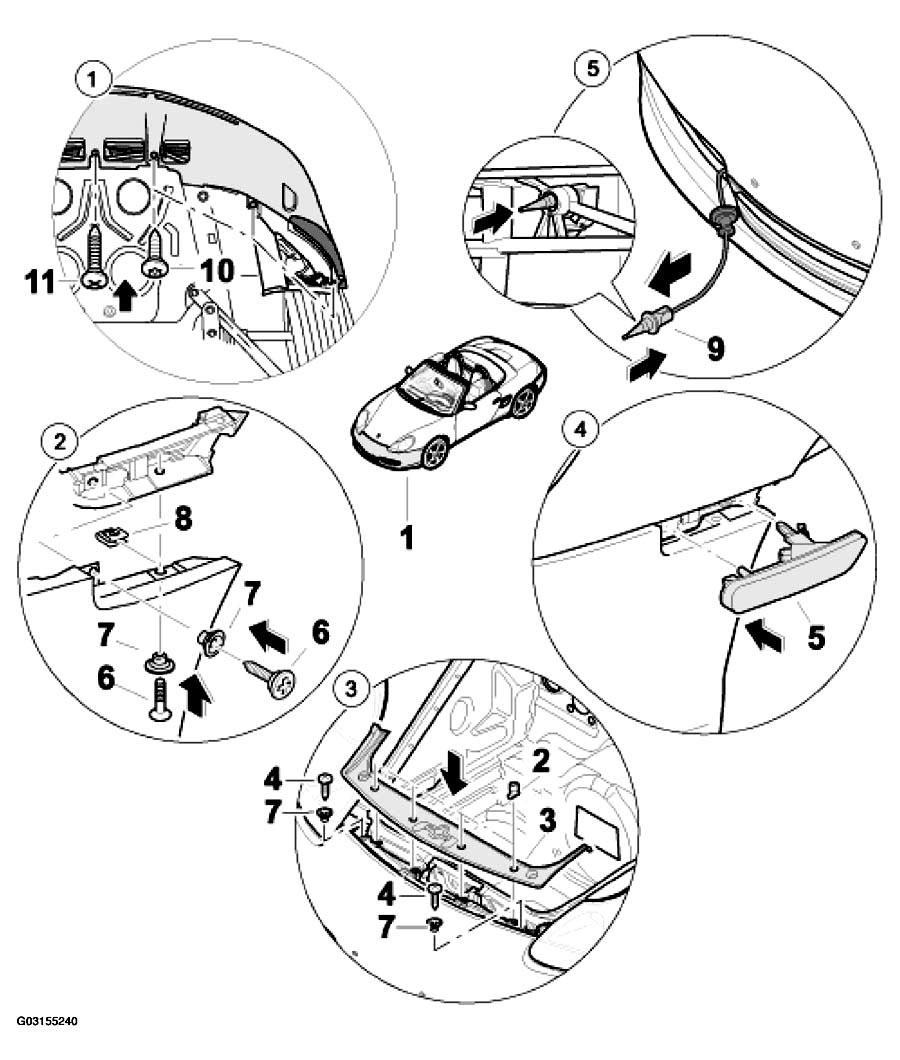

| 1 | Fitting front spoiler on the underbody | Position front spoiler over the bumper mount on the vehicle. Screw in the fastening screws onto the underbody -10- . See Fig 1 . |
| 2 | Fitting front spoiler at the sides | Affix front spoiler to the retaining strip and fasten it with the sheetmetal screw -6-7- . See Fig 1 . |
| 3 | Fitting cover | Fasten the front end -1-4-7-3-2- . See Fig 1 . |
| 4 | Fitting direction indicator light | Insert electrical plug connection of the direction indicator light -5-arrow-1- . See Fig 1 . |
| 5 | Pressing in temperature sensor | Press temperature sensor -9- . See Fig 1 . |
