Disassembling front spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

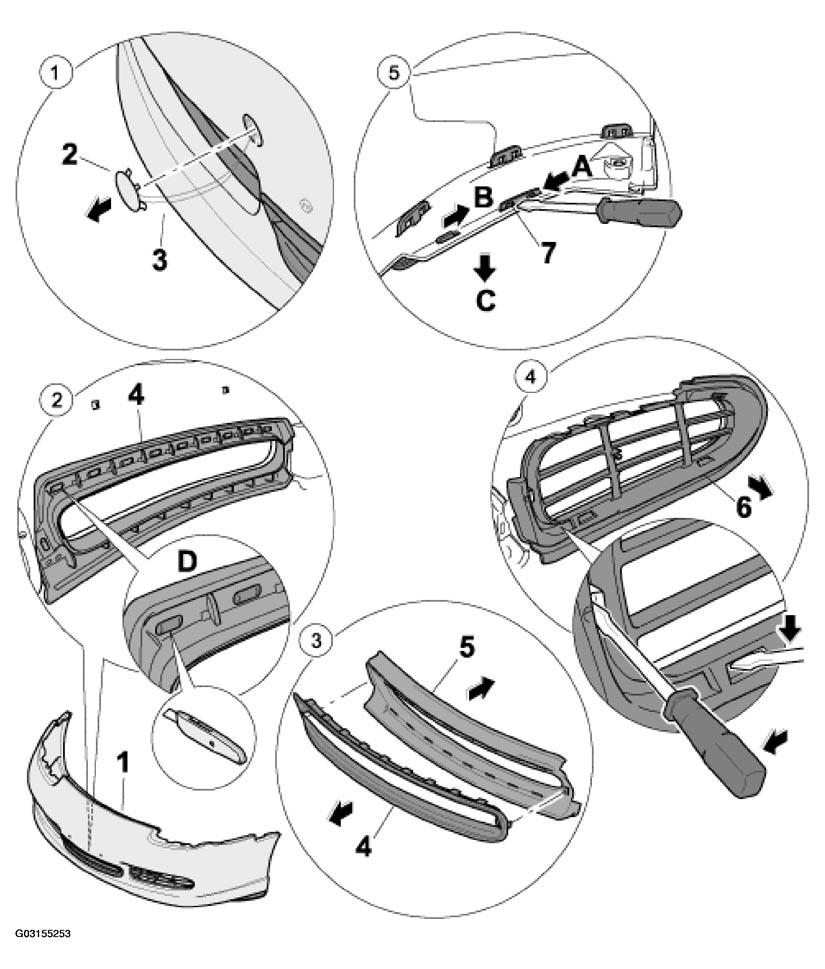

Fig 1: Disassembling Front Spoiler Components - Boxster S

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DISASSEMBLING FRONT SPOILER PROCEDURE - BOXSTER S

No.	Procedure	Instructions
1	Removing covering cap -2- . See Fig 1 .	Carefully press out covering cap -2-3-2-1- . See Fig 1 .
2	Outer middle frame -4- . See Fig 1 .	The outer middle frame -4-Inset D- . See Fig 1 .
3	Separating the frames from one another	Separate the outer middle frame -4-5- . See Fig 1 .
4	Removing grille frame -6- . See Fig 1 .	Carefully disengage the lugs of the grille frame -6- . See Fig 1 .
5	Removing covering frame -7- . See Fig 1 .	Carefully press in the lugs of the covering frame at the side -7--A-7--direction of arrow C-direction of arrow B--1- . See Fig 1 .
