Assembling front spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

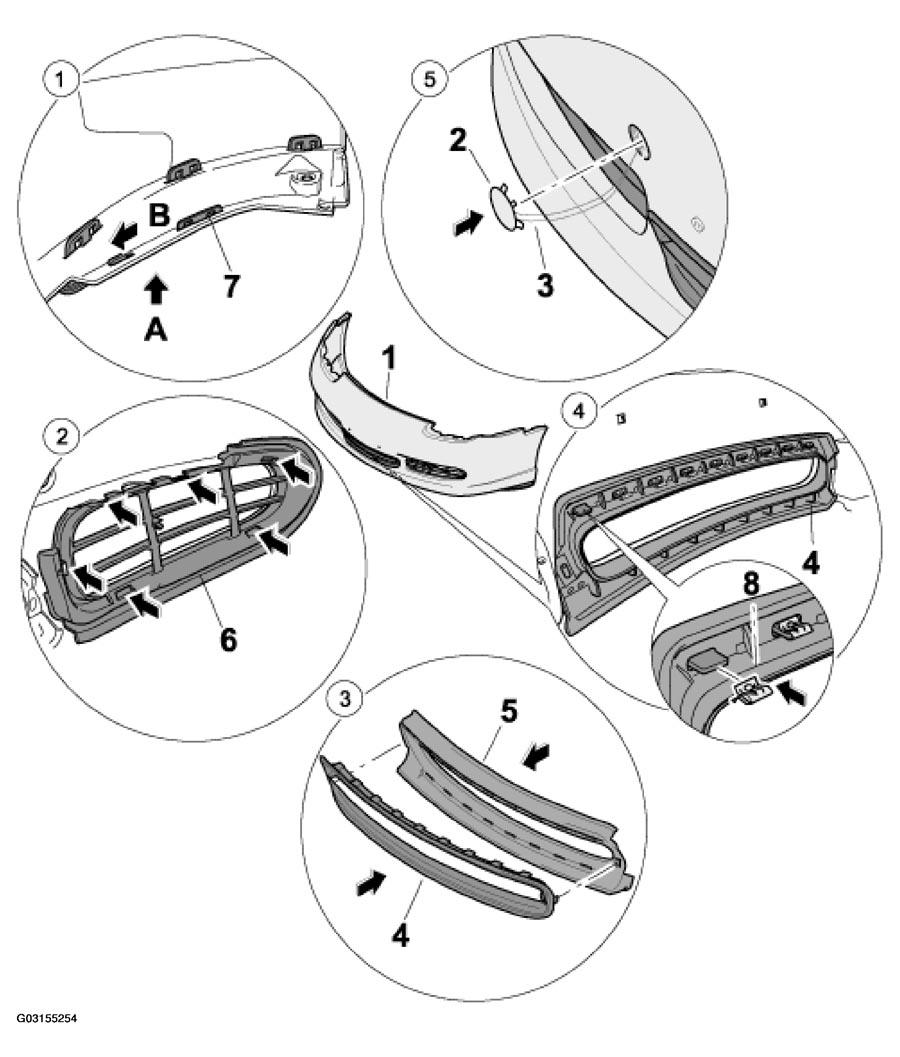

Fig 1: Assembling Front Spoiler Components - Boxster S

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ASSEMBLING FRONT SPOILER PROCEDURE - BOXSTER S

No.	Procedure	Instructions
1	Installing covering frame -7- . See Fig 1 .	Insert covering frame -7-direction of arrow B--7-direction of arrow B-direction of arrow A- . See Fig 1 .
2	Installing grille frame -6- . See Fig 1 .	Lock grille frame -6-1- . See Fig 1 .
3	Installing outer middle frame/inner frame -4, 5- . See Fig 1 .	Position the outer middle frame -4-5- . See Fig 1 .
4	Fitting fastening clips -8- . See Fig 1 .	Push on the fastening clips -8-4- . See Fig 1 .
5	Installing covering cap -2- . See Fig 1 .	Pull the securing cord -3-2-1-2-1- . See Fig 1 .
