Convertible top compartment lid micro-switch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

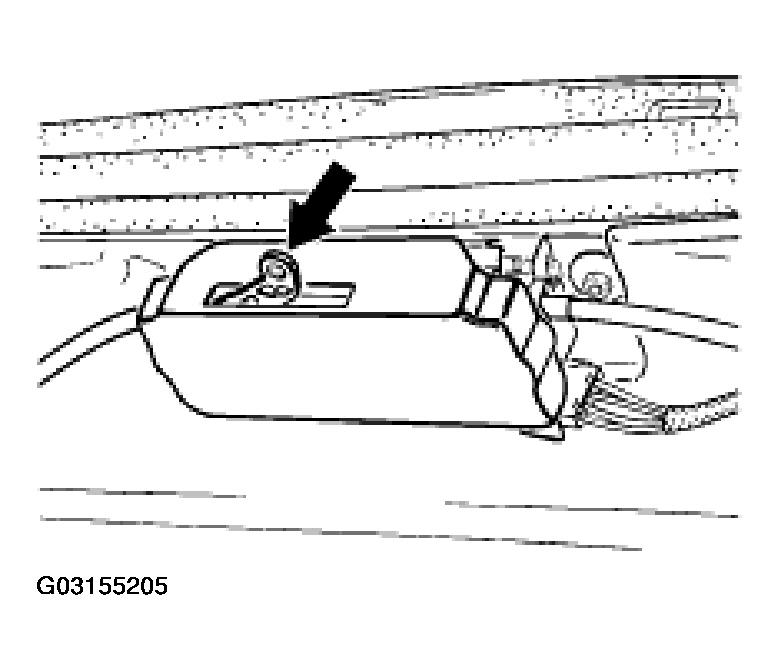

The micro-switch is riveted onto the drive-motor bracket. The drive motor with bracket can be removed by unscrewing the three M6 fastening nuts.
NOTE:
If it is not possible to open the convertible top compartment lid electrically (convertible top open), carefully press the ball socket of the push-bar springs (left and right) out of the ball head of the drive lever.
Manually open the convertible top compartment lid and remove the drive motor.
If the convertible top is closed, the drive motor can be removed from the inside by taking out the cover for the convertible top rest.
