Removing the tension cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

In order to replace the tension cable, the convertible-top covering must be detached to a certain extent on the relevant side!
To do so, undo the convertible-top covering at the front and the side of the roof frame. Refer to REPLACING CONVERTIBLE-TOP COVERING .

Disconnecting the tension cable from the main:
At the front B-pillar (main bow), undo the fastening screw -1- from the tension cable eye and clamping rail.

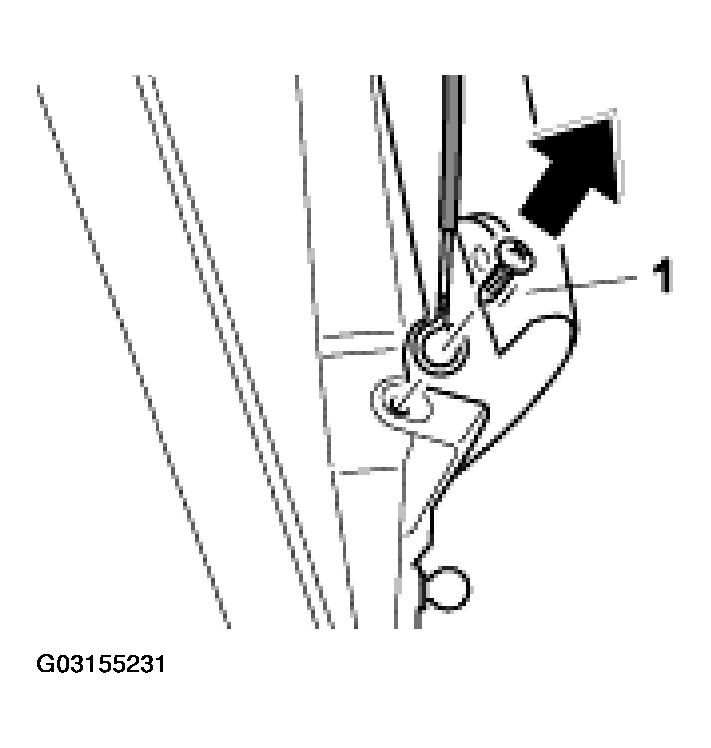

Fig 1: Disconnecting Tension Cable From Main
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disengaging the tension cable at the shaped sheetmetal part
1. Cut the plastic sleeve -2- open with a pair of scissors. See Fig 2 .
2. Disengage the tension cable -3- from the tension spring -4- at the shaped sheetmetal part. See Fig 2 .
3. Pull the tension cable -3- out of the seal -5- . See Fig 2 .

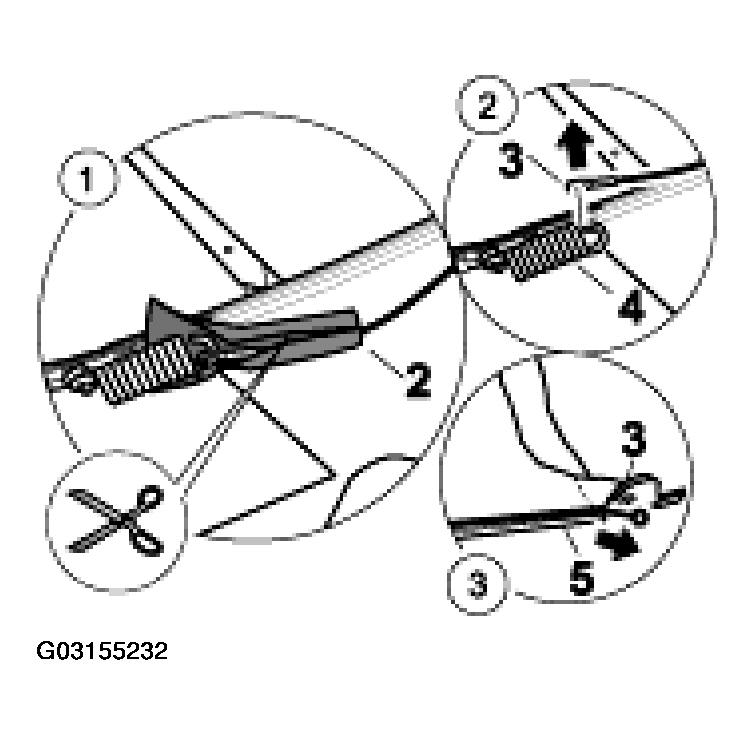

Fig 2: Disengaging Tension Cable At Shaped Sheetmetal Part

Courtesy of PORSCHE OF NORTH AMERICA, INC.
