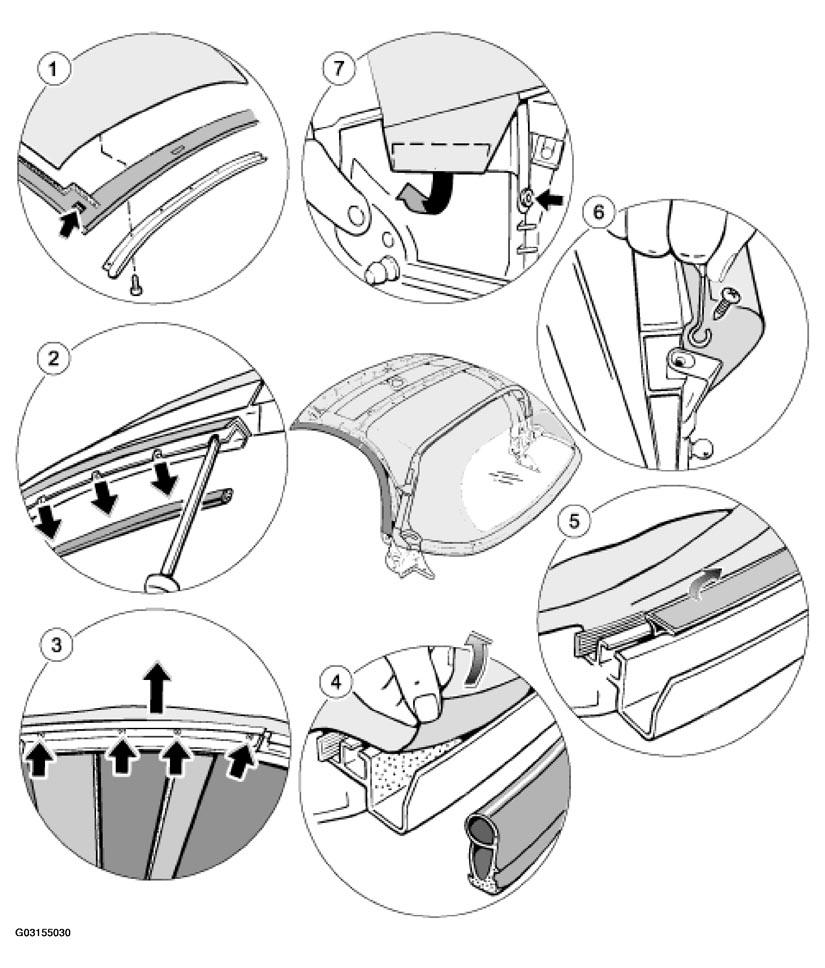

Removal overview of the convertible-top covering components, part 1
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The roof liner must be removed when replacing the convertible-top covering on the model version with roof liner! Refer to REMOVING AND INSTALLING ROOF LINER .
- Detaching retaining rail and convertible top seal on the roof frame
- Detaching seal at sides of roof frame
- Detaching shaped sheetmetal part with convertible-top covering
- Detaching rubber section and convertible-top covering on tension bow
- Pulling off additional seal
- Detaching cable of the convertible-top covering
- Detaching fold on convertible-top covering at the sides (convertible top half open)
