Replacing convertible-top covering: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The following convertible-top covering spare parts are required for replacement of the convertible-top covering!
  • The spare parts contained in the "convertible-top covering" scope of parts must always be replaced!
  • The convertible-top covering must be replaced at a room temperature of at least 15 degrees Celsius (59 Fahrenheit)!
  • The roof liner must be removed when replacing the convertible-top covering on the model version with roof liner!
  • The centre cover moulding is characterised by a second groove for the connection to the roof liner which must be ordered separately!

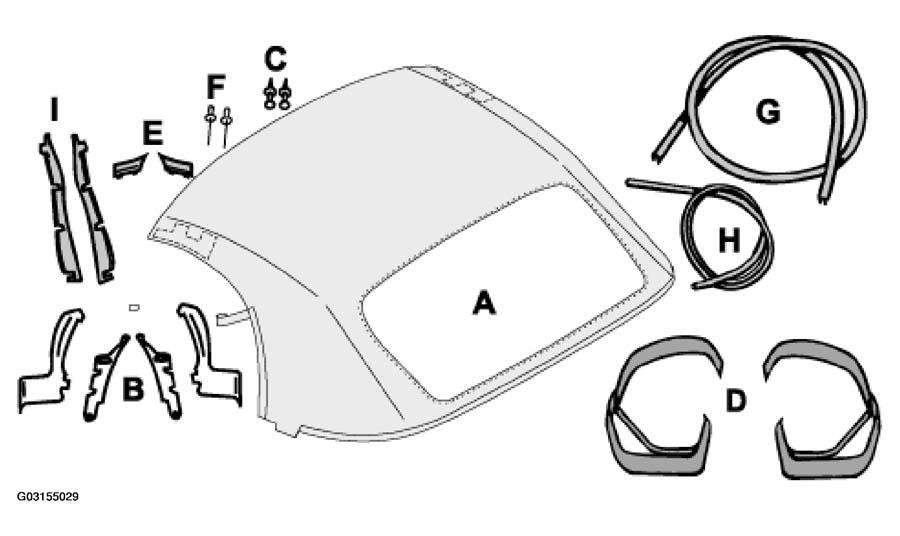

Fig 1: View Of Convertible-Top Covering Components
G03155029Courtesy of PORSCHE OF NORTH AMERICA, INC.
CONVERTIBLE-TOP COVERING SPECIFICATIONS

A = Convertible-top covering D = Tension strap G = Tension bow seal
B = Slider/rail E = Tension strap cover H = Seal
C= Plastic plug F = Tubular rivets I = Side sea
