Conversion measure on the tension bow for the tension strap in vehicles produced before 12.04.2000
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Introduction on 13.04.2000 of a new convertible-top covering with modified rear window and wider tension strap for improved setting down of the convertible-top covering!
- In vehicles with production date up to 12.04.2000, the holes for the tension strap connection must be re-measured and re-drilled!
- The rivet connection on the tension bow has changed from a 2-point to a 3-point rivet connection!

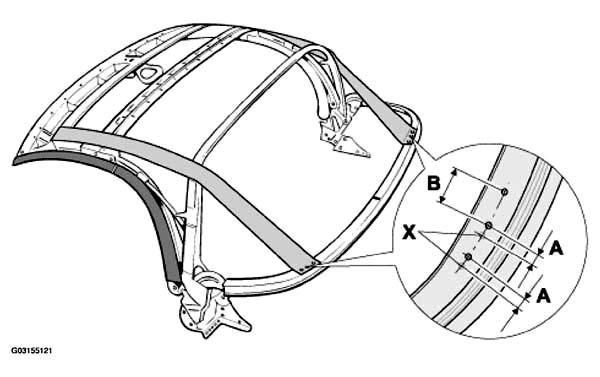

Fig 1: Identifying Rivet Holes Dimensions For Tension Bow For Tension Strap - Vehicles Produced Before 12.04.2000
- Measuring and drilling the rivet holes for the tension strap
- Measure the dimensions -A = 10 mm centrally starting from the old rivet holes -X- of the tension bow on the left and right. See Fig 1 .
- Measure the dimension -B = 30 mm- centrally starting from the measured dimension -A- of the tension bow on the left and right. See Fig 1 .
- Centre the measured dimensions using a prick punch. Drill the centrings with a drill bit 5 mm.
