Removing hardtop
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING HARDTOP INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| The requirement for installing the hardtop is that the pivot-pin locks are installed. | ||

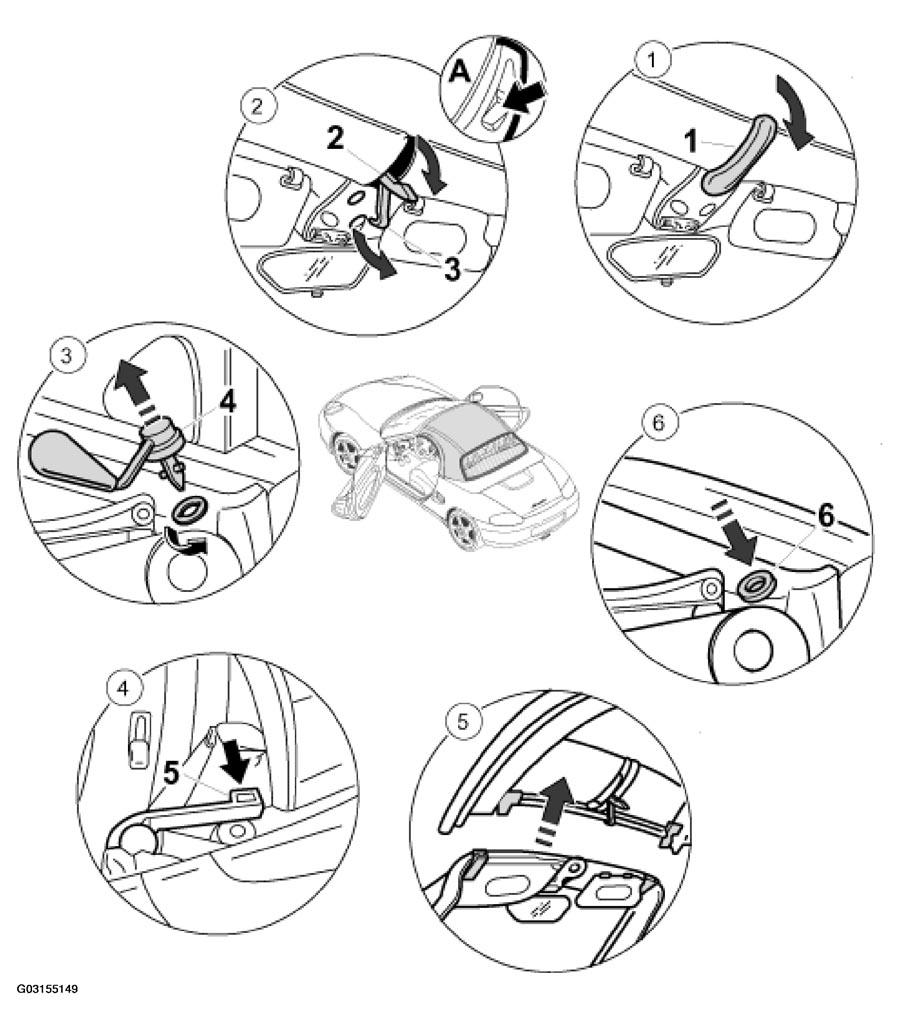

| 1 | Pull off cover for locking lever | Pull cover -1- . See Fig 1 . |
| 2 | Open the locking lever | Press locking button -A--2-3- . See Fig 1 . |
| 3 | Open latching lever at the rear | Swivel latching lever -4- . See Fig 1 . |
| 4 | Disconnect the electrical plug connection of the rear window heater | Disconnect the electrical plug connection -5- . See Fig 1 . |
| 5 | Remove the hardtop | Carefully lift the hardtop at the rear window and lift off to the rear. |
| 6 | Press in plastic cover | Press plastic cover -6- . See Fig 1 . |
