Overview of convertible top components up to model year 1999

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

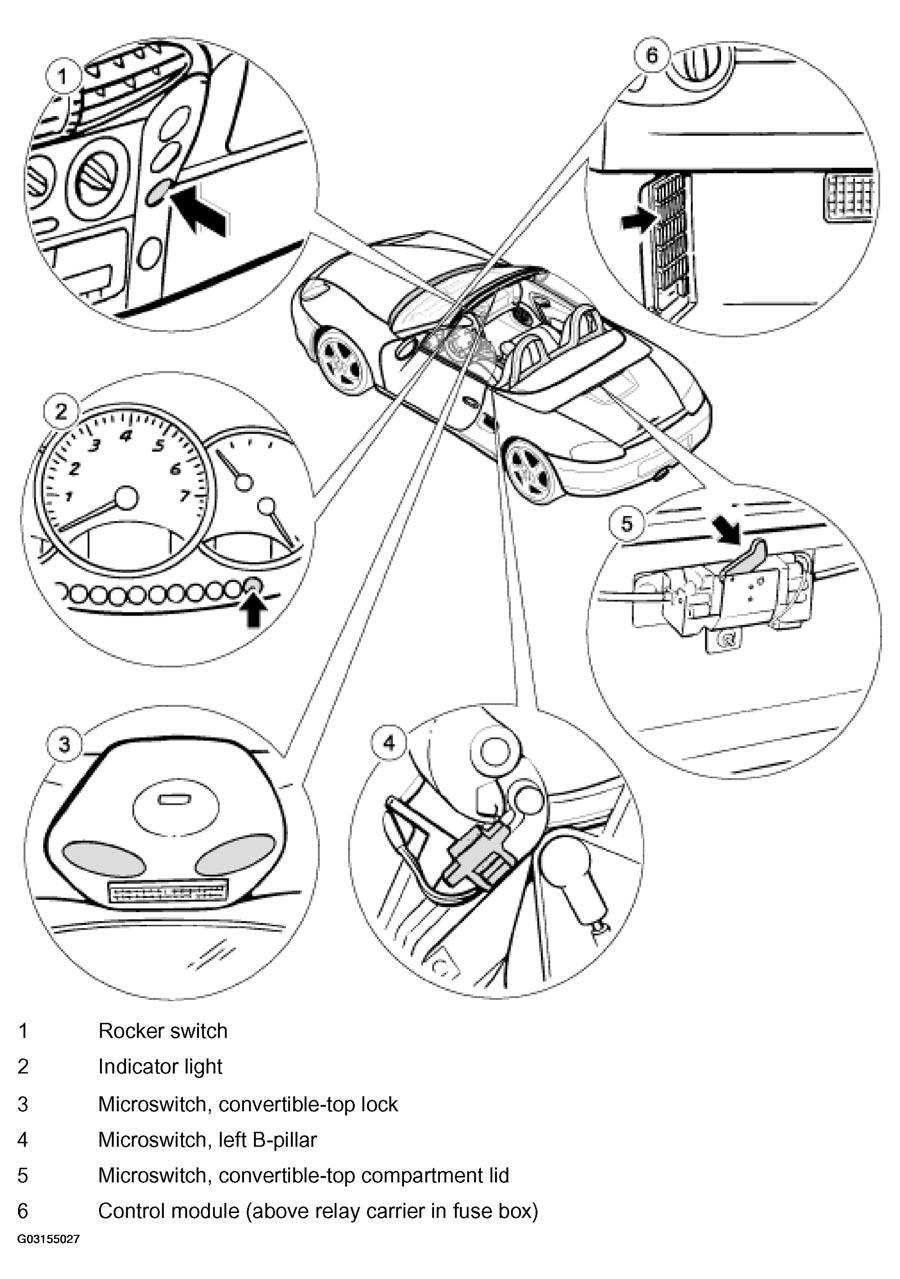

Fig 1: View Of Convertible Top Components - Up To Model Year 1999

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The motor is activated if:

No speedometer signals greater than 5 km/h (3 mph) are present.
The "convertible top locked" signal is not connected to ground.
Electric motor plug connection is plugged in
The "convertible top unlocked" signal is connected to ground.
Fuse B6 (Row B, Number 6) is OK.
Terminal 15 is connected via ignition lock.
The parking brake input is connected to ground (parking brake engaged).
