Installing convertible top

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

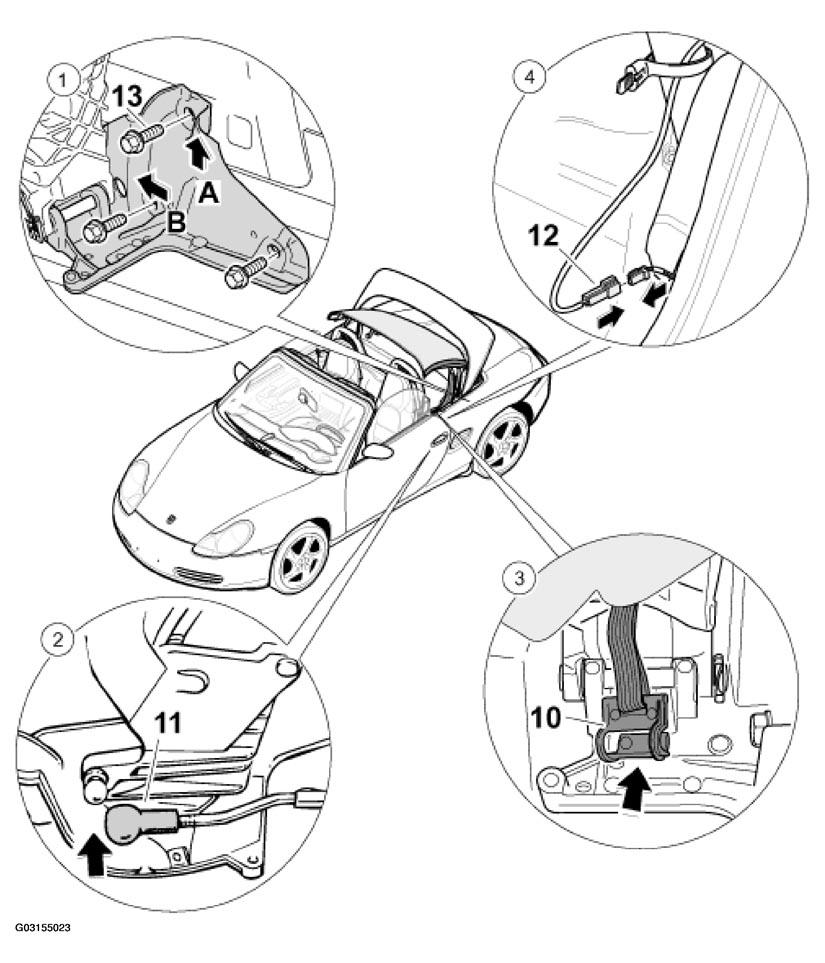

Fig 1: Installing Convertible Top Components (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING CONVERTIBLE TOP INSTRUCTIONS (STEPS 1-4)

No.	Procedure	Instructions
1	Screwing convertible top to the roll-over bar	Position the convertible-top support on the roll-over bar and fasten it with the fastening screws -13-A and B- . See Fig 1 .
2	Detaching push bar	At the main bow, press out the ball socket -11- . See Fig 1 .
3	Attaching restraining straps	On the cloth covering, engage the left and right restraining straps -10- . See Fig 1 .
4	Connecting micro switch	Connect the electrical plug connection at the microswitch -12- . See Fig 1 .

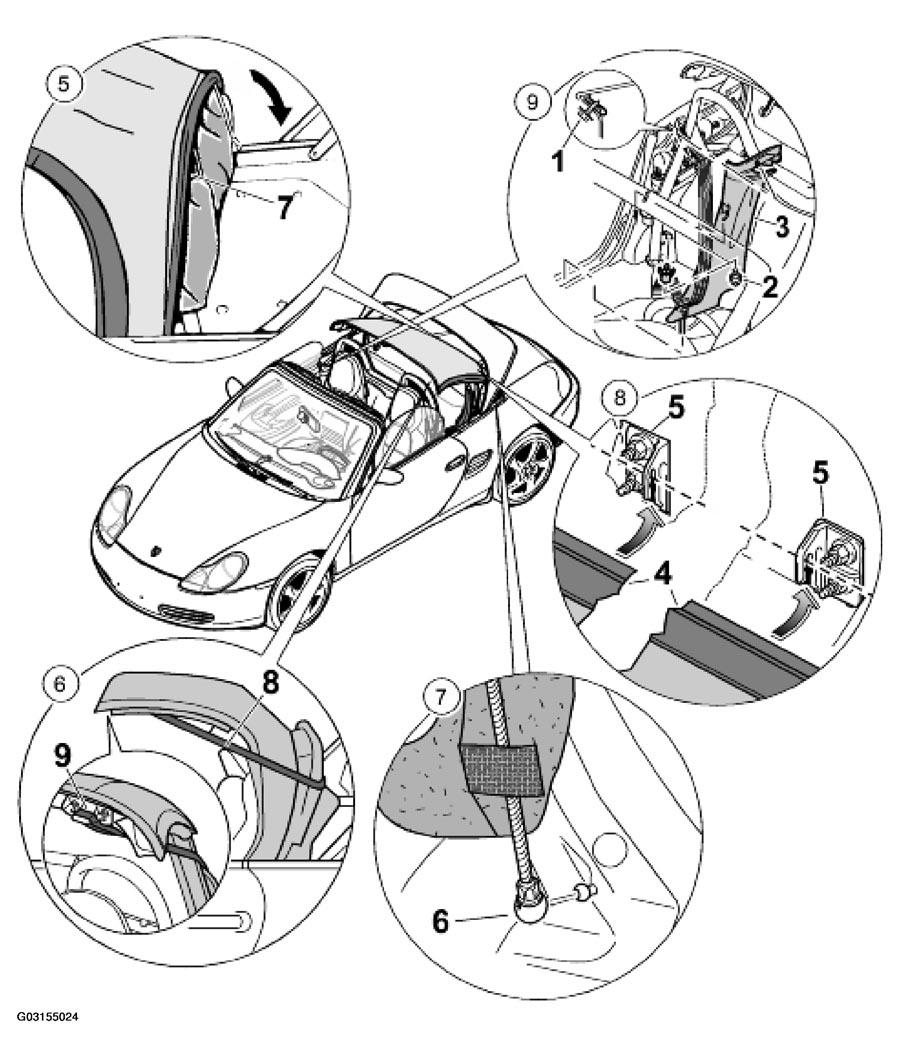

Fig 2: Installing Convertible Top Components (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING CONVERTIBLE TOP INSTRUCTIONS (STEPS 5-9)

No.	Procedure	Instructions
5	Exiting "Convertible top in service position" procedure	Press the tension bow -7- . See Fig 2 .
6	Convertible top in service position as of model year 2003	Detach holding strap -8-9- . See Fig 2 .
7	Pressing in tension cable	Press the ball socket -6- . See Fig 2 .
8	Attaching cloth covering	Engage the strip -4-5- . See Fig 2 .
9	Installing side-lining panels	Insert the left and right side-lining panels -3-1-2- . See Fig 2 .
