Changes to convertible-top frame as of model year 2003
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
The following components of the convertible-top frame have changed as of model year 2003.

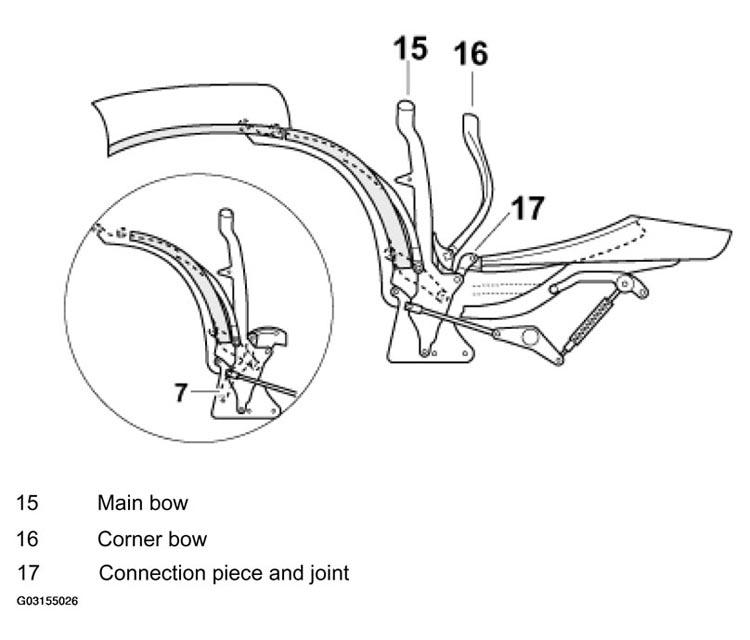

The tension bow steering lever -7- is deleted as of model year 2003 and replaced by the connection piece and joint -17-.
