Removing and installing convertible top gear: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Malfunction of convertible top gear or material damage to convertible top!
Introduction of new convertible top gears on 3 May 1999!
Introduction of new convertible top gears on 3 May 1999!
- The new convertible top gear can be installed together with an old convertible top gear. Ensure that the corresponding -component allocation (A)/(B)- is always maintained.
- Components -up to 2 May 1999 (A)- gear 9A, spacer pin 10A, shaft 11A left, friction plate 3A
- Components -from 3 May 1999 (B)- gear 9B, spacer pin 10B, friction plate 9B, shaft 11A
NOTE:
- After installing a convertible top gear, the convertible top gear must be put on a basic setting. See ADJUSTING CONVERTIBLE TOP GEAR .
- The specification -Quantity- refers to a convertible top gear.

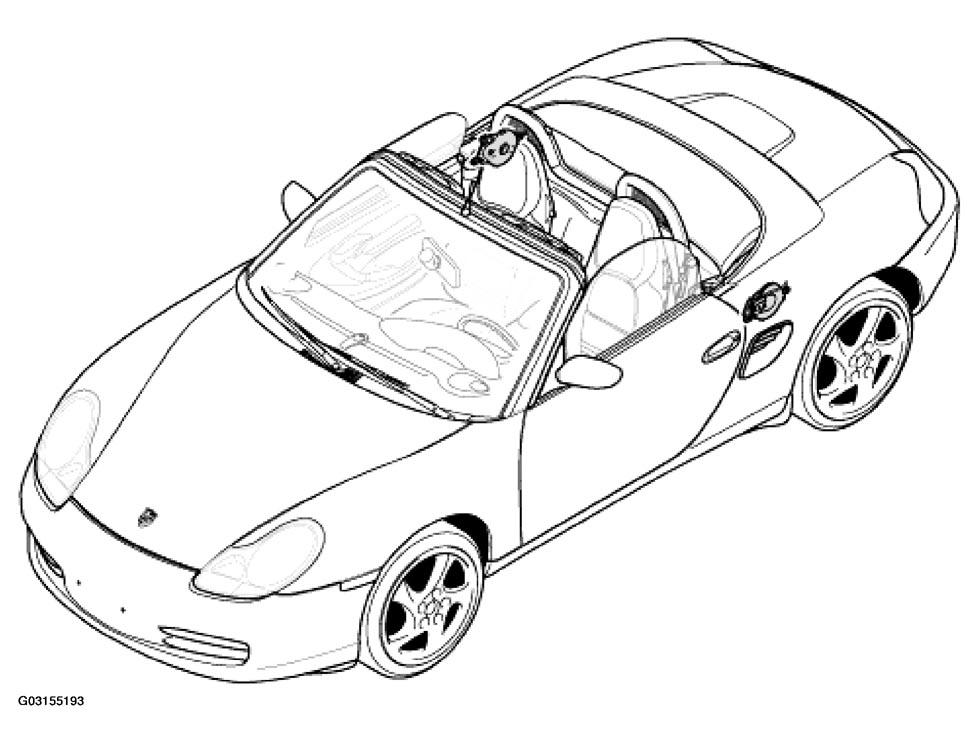

REMOVING AND INSTALLING CONVERTIBLE TOP GEAR (STEPS 1-7)

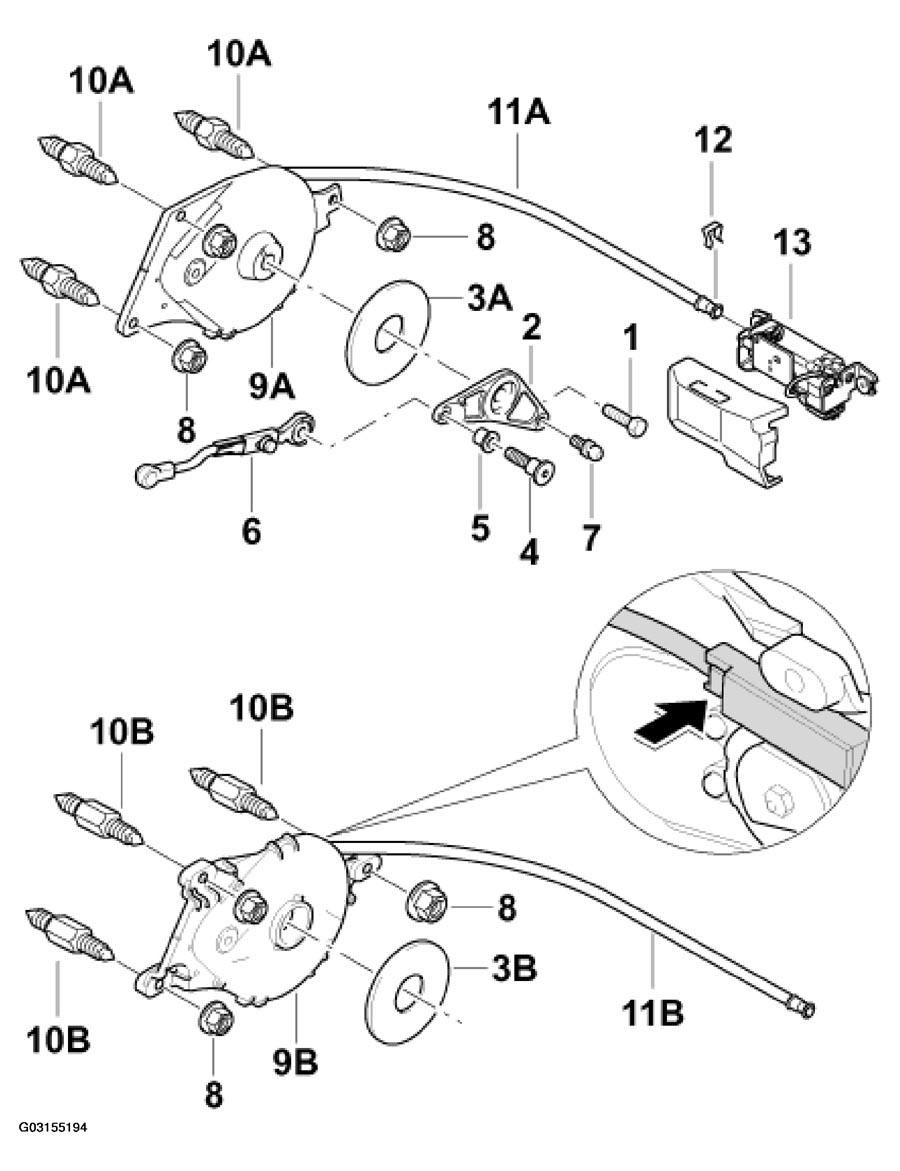

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screw | 1 | After loosening the fastening screw -1-243- . See Fig 2 . | |
| 2 | Drive lever | 1 | Position drive lever and screw into place with the fastening screw -2- . See Fig 2 . | |
| 3A | Install friction plates only in connection with the components -A- . See Fig 2 . | 1 | Install friction plate only in connection with gear -9A-10A-11A- . See Fig 2 . | |
| 3B | Install friction plate only in connection with the components -B- . See Fig 2 . | 1 | Install friction plate only in connection with gear -9B-10B-11B- . See Fig 2 . | |
| 4 | Fastening screw | 1 | Tightening torque: see TIGHTENING TORQUES | |
| 5 | Spacer sleeve | 1 | ||
| 6 | Push bar | 1 | ||
| 7 | Ball journal | 1 |
REMOVING AND INSTALLING CONVERTIBLE TOP GEAR (STEPS 8-13)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 8 | Collar nut | 3 | Tightening torque: See TIGHTENING TORQUES |
|
| 9A | Install gear only in connection with the components -A- . See Fig 2 . | 1 | Undo fastening screws -8- . See Fig 2 . | Position gear on the spacer pins -10A-8- . See Fig 2 . |
| 9B | Install gear only in connection with the components -B- . See Fig 2 . | 1 | Undo fastening screws -8- . See Fig 2 . | Position gear on the spacer pins -10B--8- . See Fig 2 . |
| 10A | Install spacer pins only in connection with the components -A- . See Fig 2 . | 3 | Tightening torque: see TIGHTENING TORQUES | |
| 10B | Install spacer pins only in connection with the components -B- . See Fig 2 . | 3 | Screw in the short thread length into the body. Tightening torque: see TIGHTENING TORQUES | |
| 11A | Left and right flexible shaft, identical parts. Install only in connection with the components -A- . See Fig 2 . | 1 | Pull the clip -12- . See Fig 2 . | 1. See
ADJUSTING CONVERTIBLE TOP GEAR
. 2. Insert flexible shaft on engine side and secure with clip -12- . See Fig 2 . |
| 11B | Left and right flexible shaft, identical parts. Install only in connection with the components -B- . See Fig 2 . | 1 | 1. Press lug -arrow- on transmission side and pull off shaft. 2. Pull the clip -12- off engine side and pull off flexible shaft. See Fig 2 . |
1. Push in shaft on transmission side until it engages. 2. See ADJUSTING CONVERTIBLE TOP GEAR 3. Insert flexible shaft on engine side and secure with clip -12- . See Fig 2 . |
| 12 | Clip | 1 | ||
| 13 | Engine | 1 |
