Turning hardtop

Place outer side of the hardtop on the assembly fixture.

1. Unclipping interior trim parts

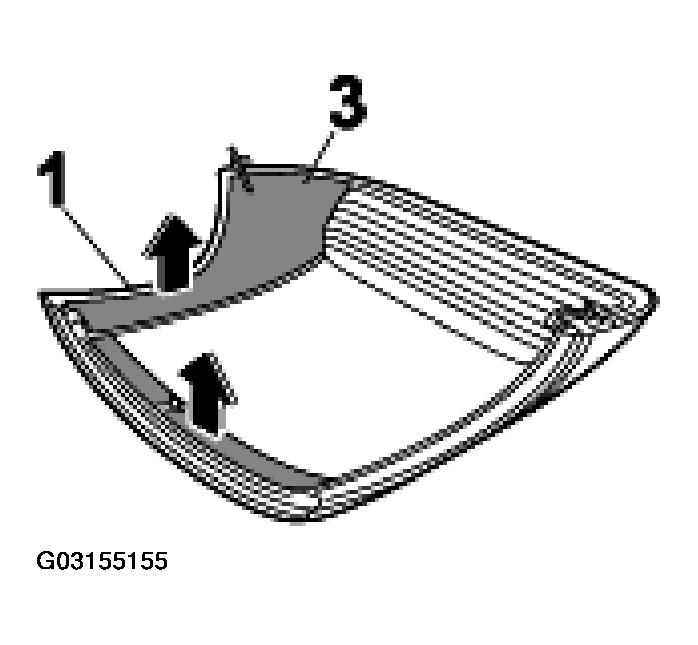

   Unclip interior trim parts -3-  at the sides, front and rear from the hardtop body -1-  .

Fig 1: Unclipping Interior Trim Parts From Hardtop Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Detaching seal at sides of roof frame

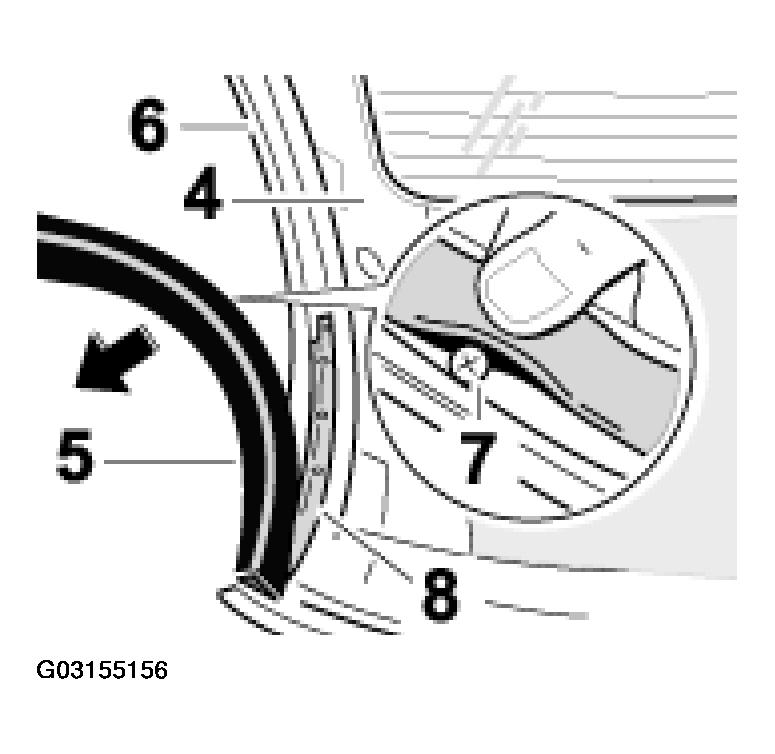

   1. The seal on the roof frame -4-  at the sides consists of two parts. Pull the upper seal -5-  out of the profile of the retaining rail -6-  . See Fig 2 .
   2. Unscrew fastening screws -7-  from the retaining rail -6-  . See Fig 2 .
   3. Remove the seal below it together with the retaining rail -8-  from the roof frame -4-  . See Fig 2 .
   Fig 2: Detaching Seal At Sides Of Roof Frame

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

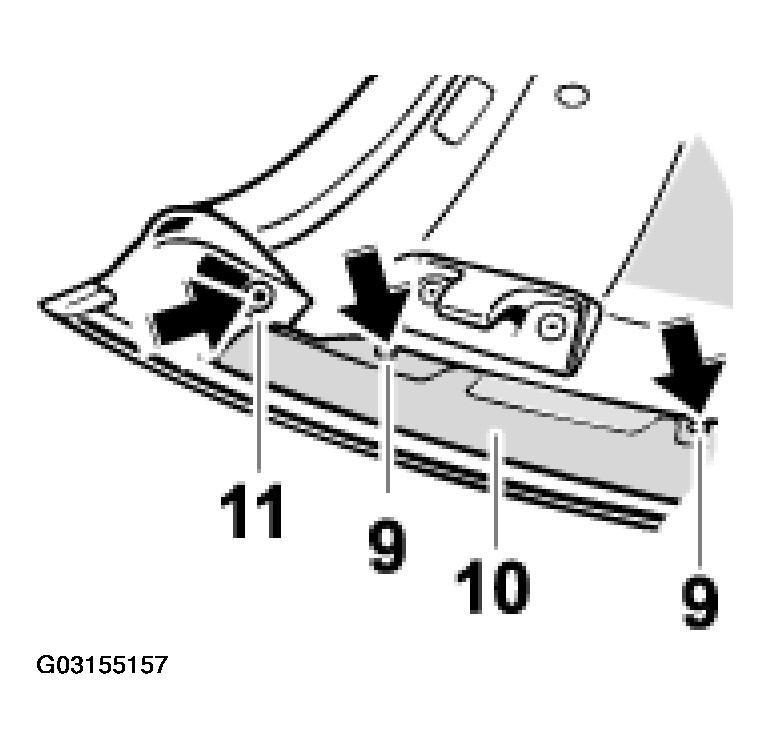

3. Undoing and detaching the retaining rail and roof frame seal
   1. Unscrew sheetmetal screws -9-  from the retaining rail -10-  .
   2. Unscrew fastening screws -11-  from the roof frame seal, detach the seal at the corners and remove it.
   Fig 3: Undoing And Detaching Retaining Rail And Roof Frame Seal

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
4. Pulling off rubber seal

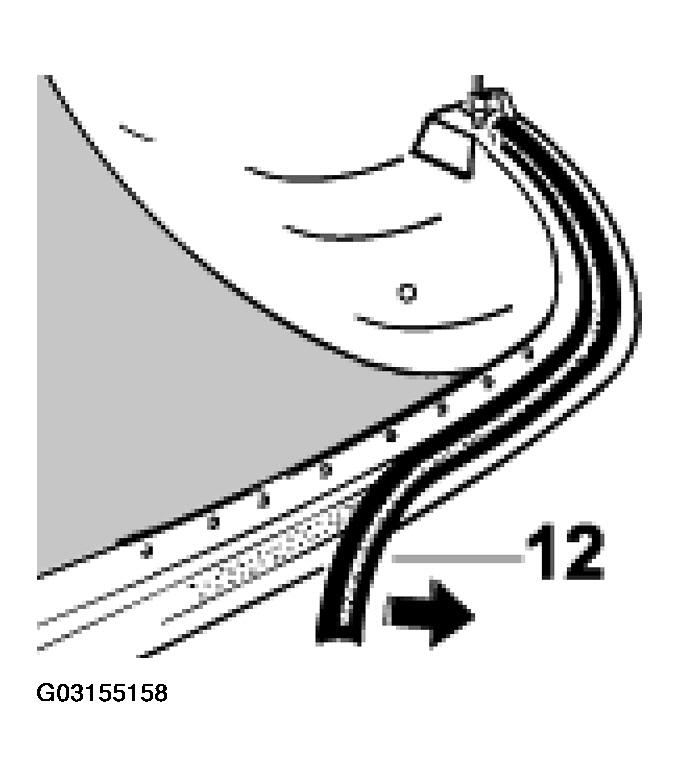

   Pull off the all-round rubber seal -12-  at the rear.

   Fig 4: Pulling Off Rubber Seal

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

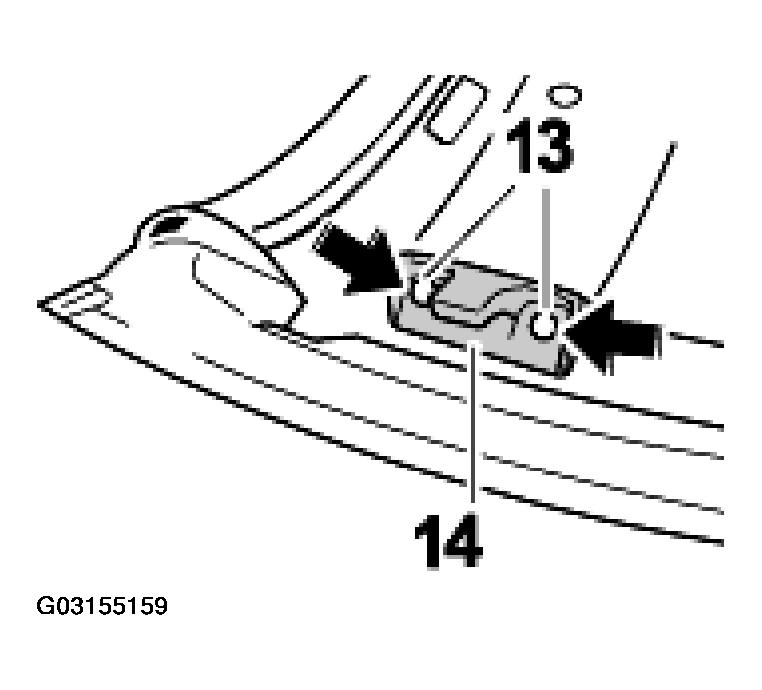

5. Removing centring peg

   Unscrew and remove fastening screws -13-  from the centring peg -14-  .

   Fig 5: Removing Centering Peg

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
6. Removing locking lever

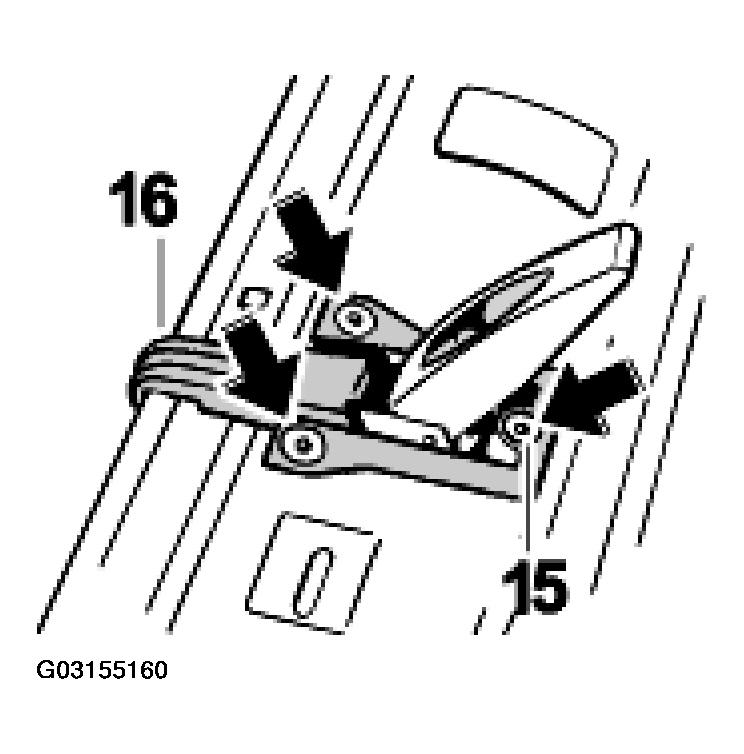

   Unscrew and remove fastening screws -15-  from the locking lever -16-  .

   Fig 6: Removing Locking Lever

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
7. Detaching roof liner at front

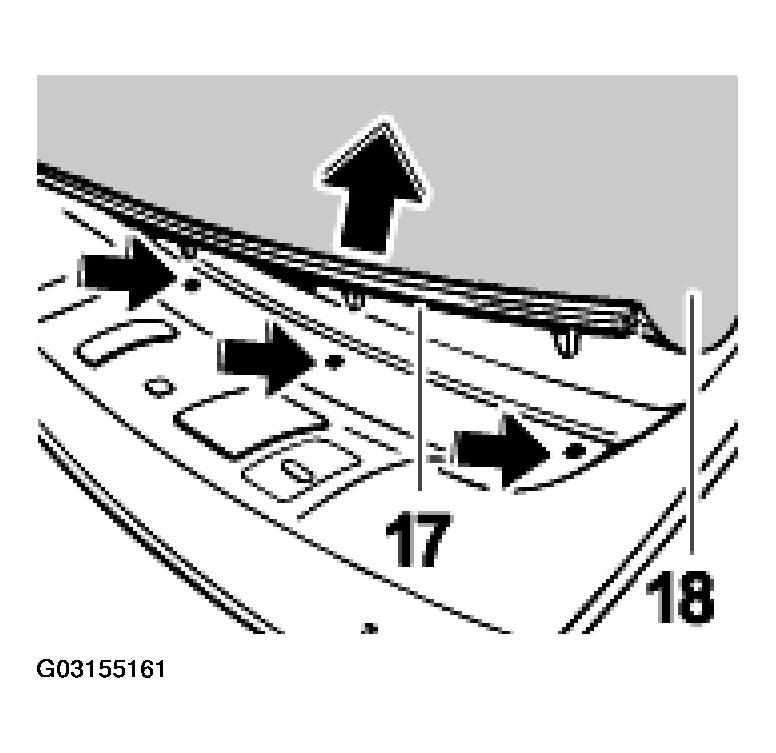

   Lift the front retaining rail -17-  of the roof liner -18-  with a plastic spatula and pull it off.

   Fig 7: Detaching Roof Liner At Front

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
8. Detaching roof liner at sides

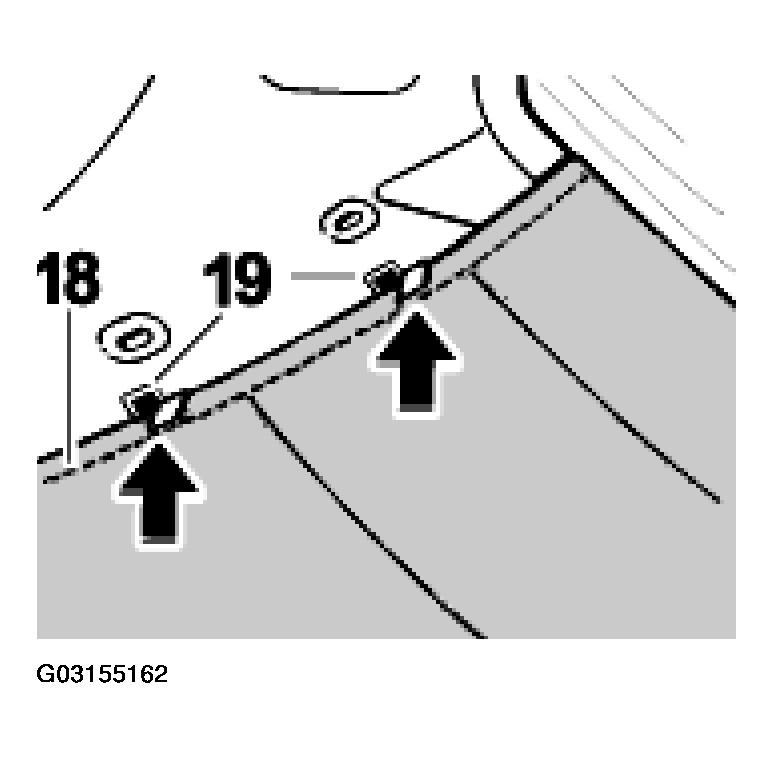

   Lift up the roof liner -18-  on the left and right sides with a plastic spatula and disengage from the sheetmetal clips -19-.

   Fig 8: Detaching Roof Liner At Sides

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

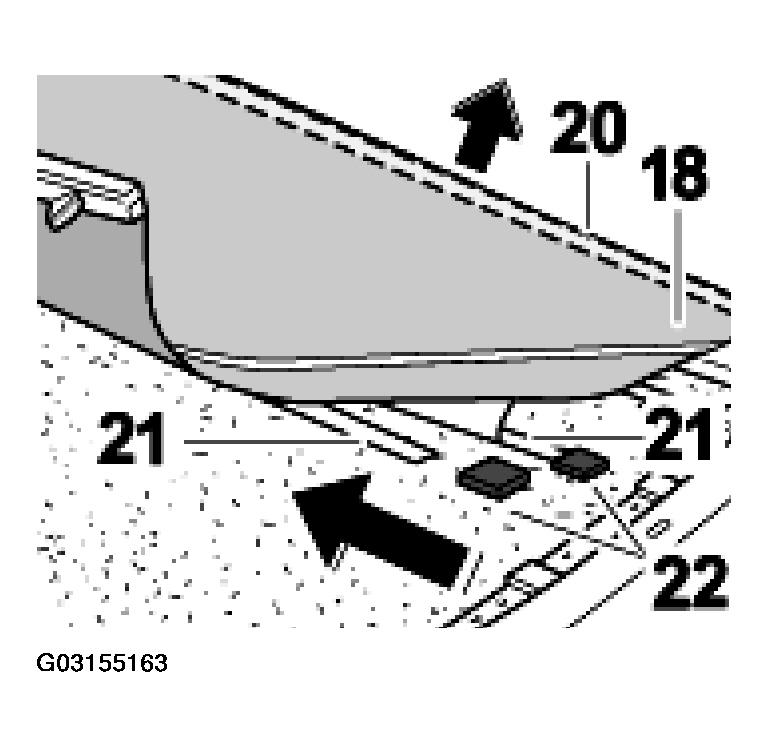

9. Detaching roof liner at rear and transverse struts
   1. Pull the plastic rail -20-  on the roof liner -18-  to the rear and detach it.
   2. Remove the transverse struts -21-  with the plastic sleeves -22-  and remove the roof liner -18-  .
   Fig 9: Detaching Roof Liner At Rear And Transverse Struts

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

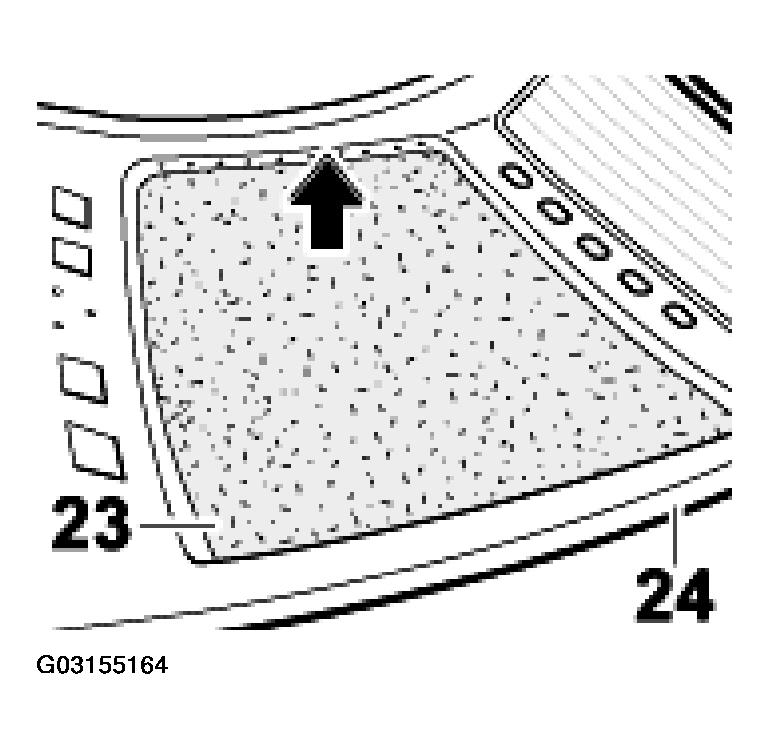

10. Detaching insulation from the hardtop body

    Undo the insulation -23-  of the hardtop body -24-  using a spatula.

    Fig 10: Detaching Insulation From Hardtop Body

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

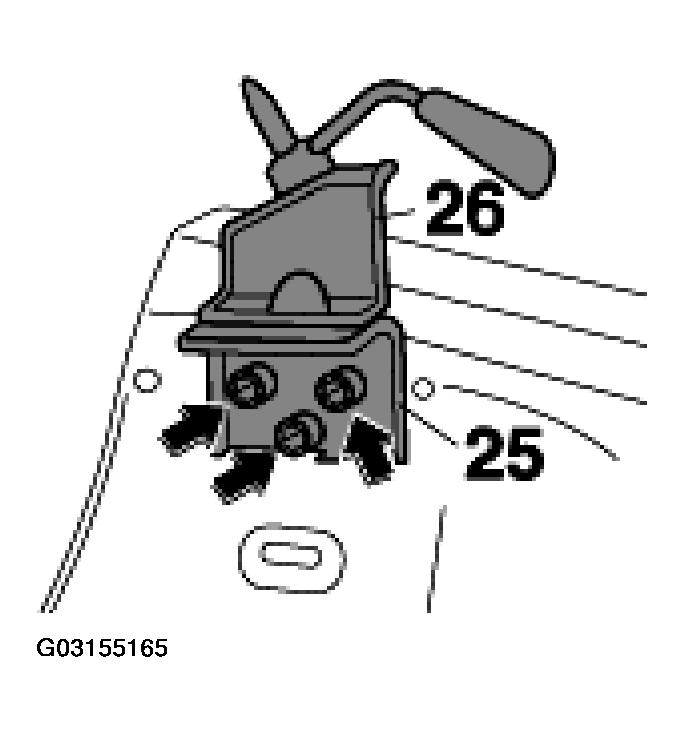

11. Removing hardtop locking element

    Unscrew and remove fastening screws -25-  from the hardtop lock -26-.

    Fig 11: Removing Hardtop Locking Element

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
12. Disconnecting wiring harness of the heated rear window

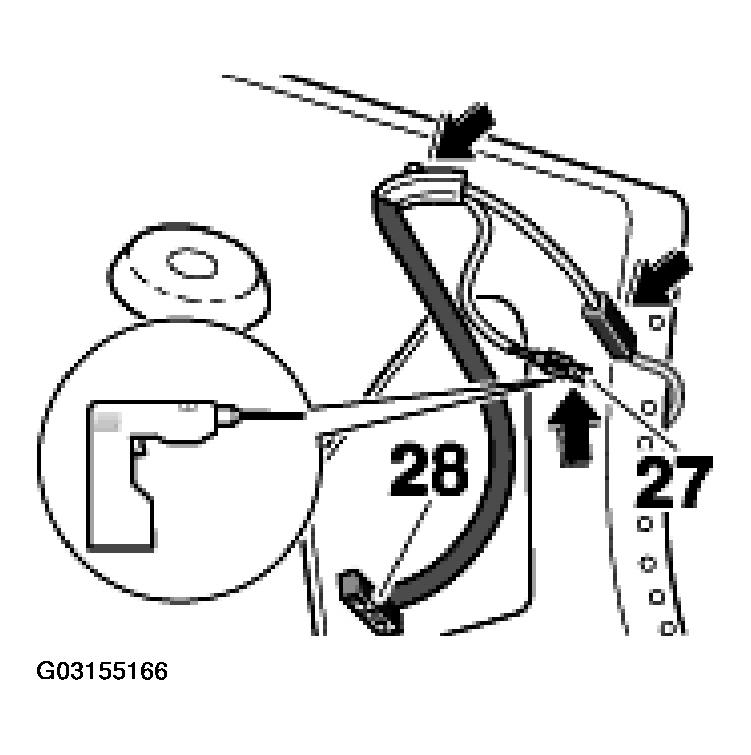

    Drill out the 3.2 mm -27-  tubular rivet. Disconnect electrical plug connection -28-  , remove wiring harness with the hardtop locking element from the hardtop body.

    Fig 12: Disconnecting Wiring Harness Of Heated Rear Window

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

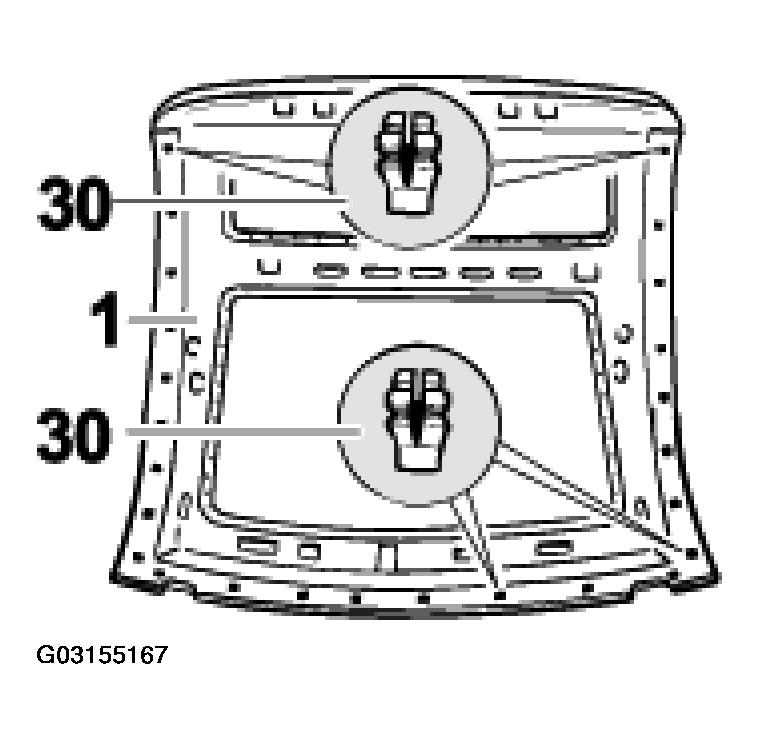

13. Pressing expanding nuts out of the hardtop body

    Press out expanding nuts -30-  at the sides and front of the hardtop body -1-  .

Fig 13: Pressing Expanding Nuts Out Of Hardtop Body
