Disassembling hardtop: Preparation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Place hardtop on the assembly fixture and lock with the latching levers and the locking lever at front.

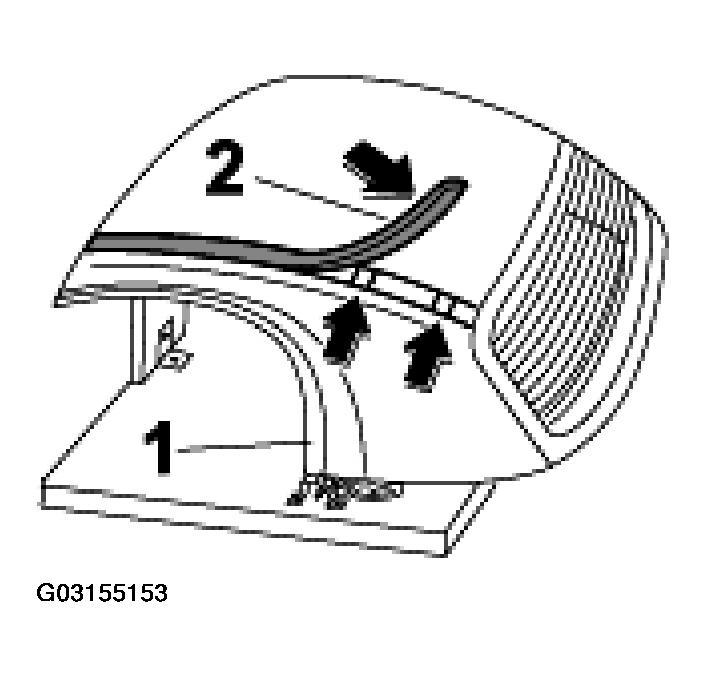

Detaching cover strips and roof strip clips
Lift up the cover strip to the left and right -2- using a plastic spatula and pull it out of the hardtop body -1- . The roof strip clips are destroyed when they are removed.

Fig 1: Detaching Cover Strips And Roof Strip Clips
Courtesy of PORSCHE OF NORTH AMERICA, INC.

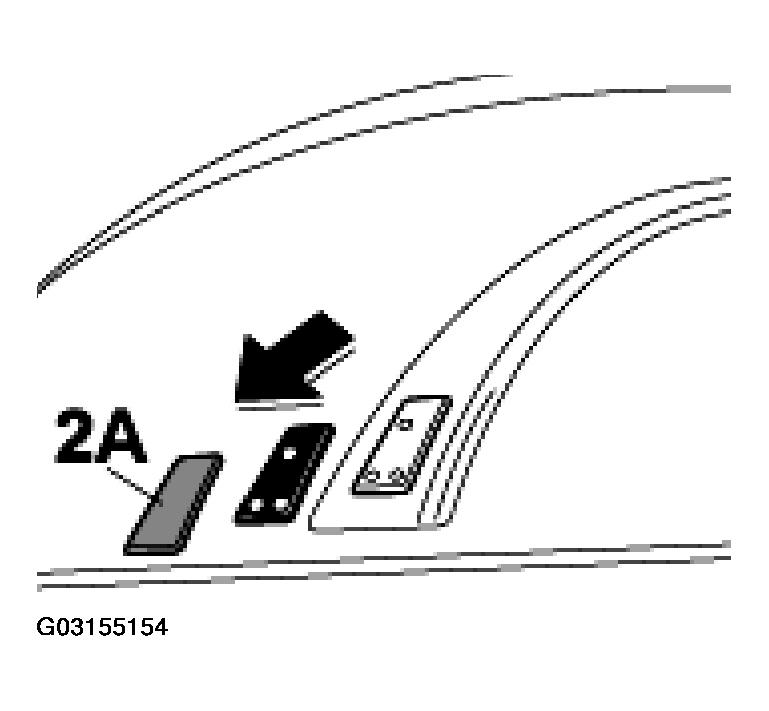

Removing cover and bracket
Pull off cover -2A- and press out the bracket at the top and bottom using a plastic spatula.

Fig 2: Removing Cover And Bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.
