Positioning the hardtop

Set the hardtop down on the assembly fixture on the outer side of the roof.

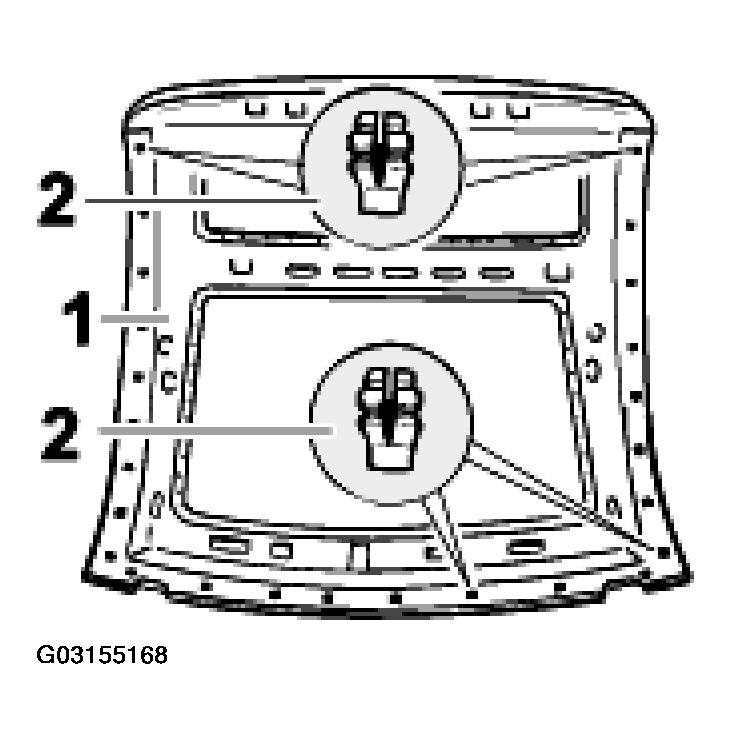

1. Pressing expanding nuts into the hardtop body

   Press in expanding nuts -2-  at the sides and front of the hardtop body -1-  until they engage.

Fig 1: Pressing Expanding Nuts Into Hardtop Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Fitting wiring harness of the rear window heater

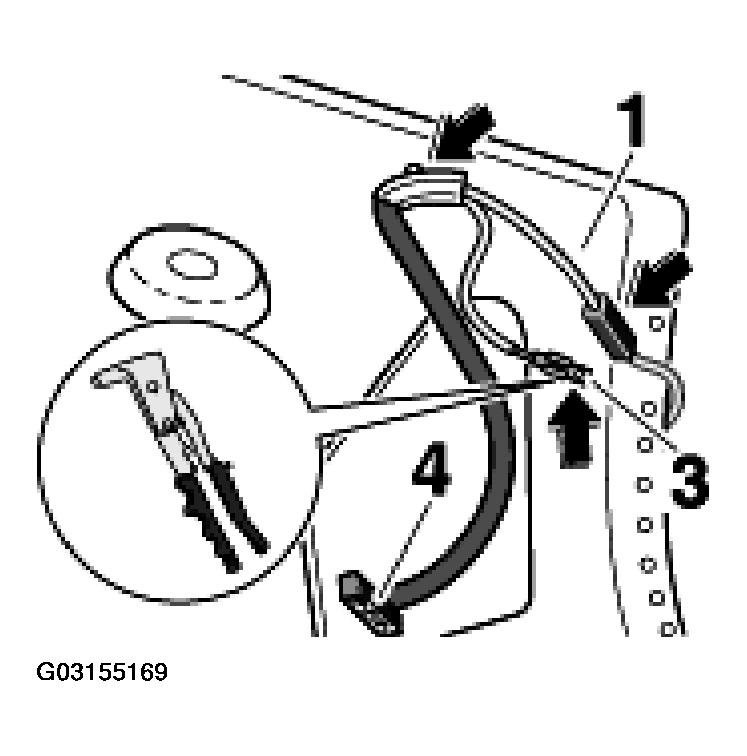

   Position wiring harness with the hardtop locking element, rivet the flat connector -3-  onto the hardtop body -1  with a 3.2 mm tubular rivet and connect the plug connection -4-  .

   Fig 2: Fitting Wiring Harness Of Rear Window Heater

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

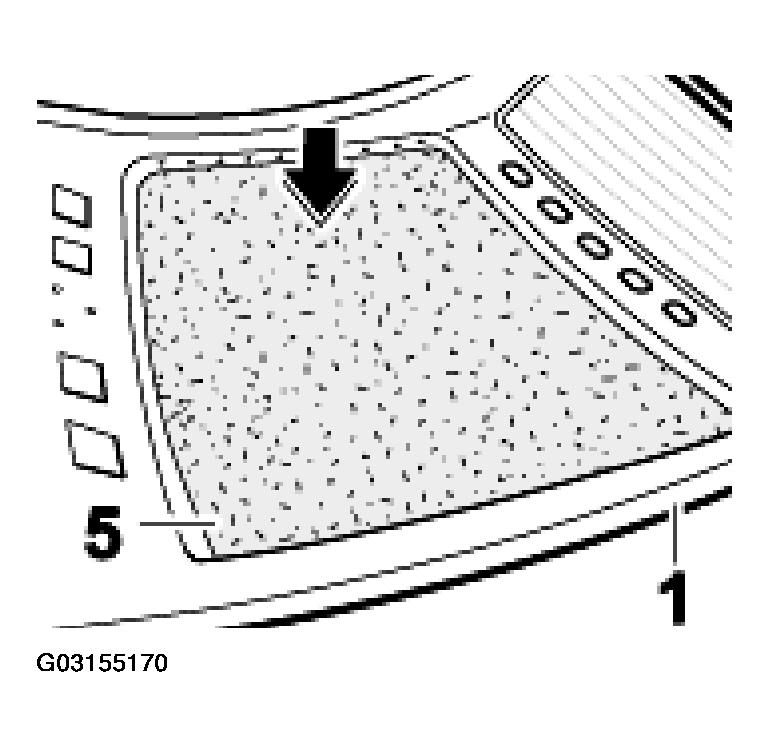

3. Sticking insulation on the hardtop body

   Position the self-adhesive insulation -5-  in the hardtop body -1-  and press firmly into place.

   Fig 3: Sticking Insulation On Hardtop Body

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
4. Engaging roof liner at rear and transverse struts

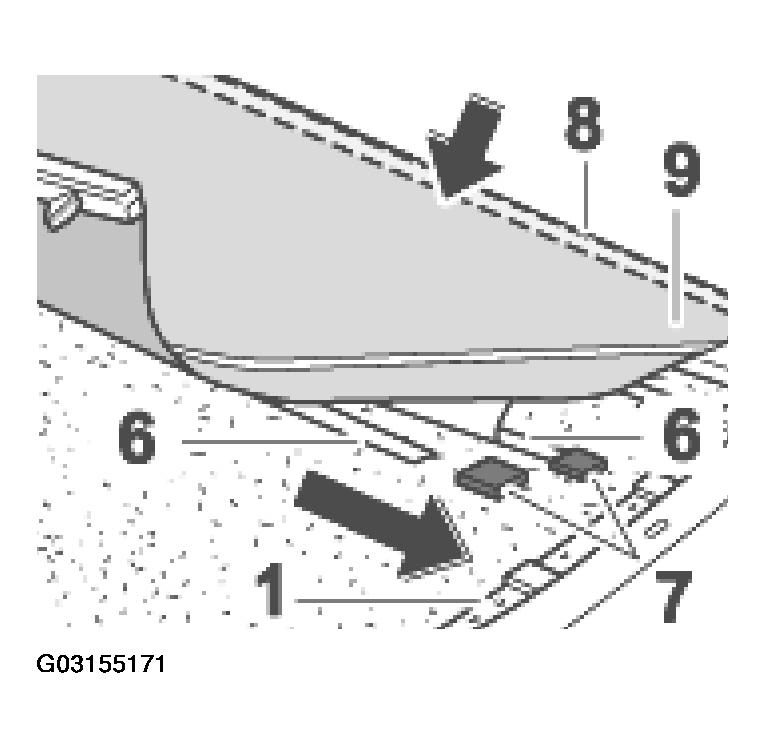

   1. Insert the transverse struts -6-  with the plastic sleeves -7-  into the hardtop body -1-  . See Fig 4 .
   2. Pull back the plastic rail -8-  of the roof liner -9-  and engage in the groove of the hardtop body -1-  . See Fig 4 .
   Fig 4: Engaging Roof Liner At Rear And Transverse Struts

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

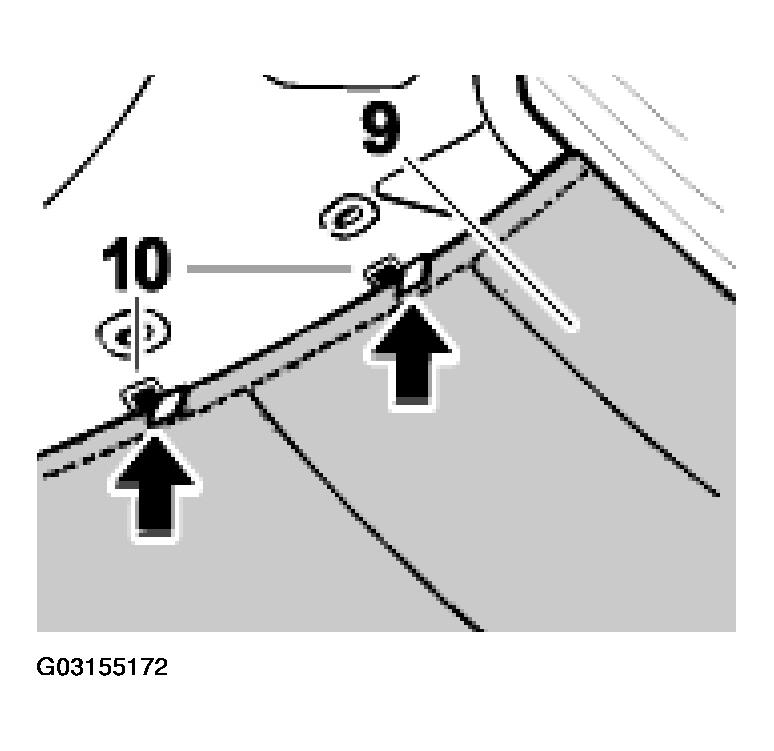

5. Engaging roof liner at sides

   Engage roof liner -9-  at the left and right sides in the sheetmetal clips -10-  .

   Fig 5: Engaging Roof Liner At Sides

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
   NOTE:

   • If the hardtop body is new, the sheetmetal clips on the left and right must be bent over to the outside using a plastic hammer.
6. Fitting roof liner at front

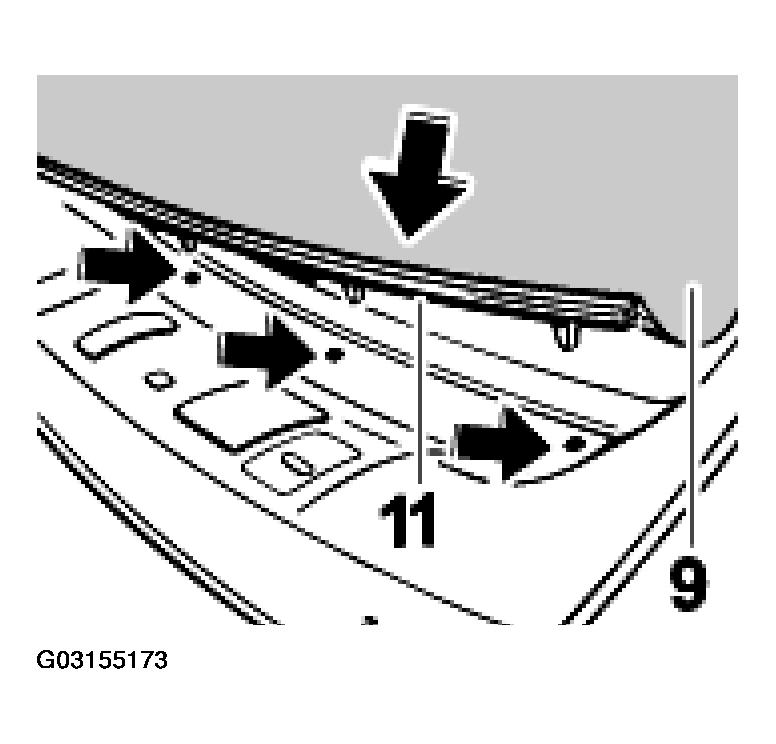

   Position the front retaining rail -11-  of the roof liner a -9-  and clip it in.

   Fig 6: Fitting Roof Liner At Front

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
7. Affixing Nitto tape to the hardtop body

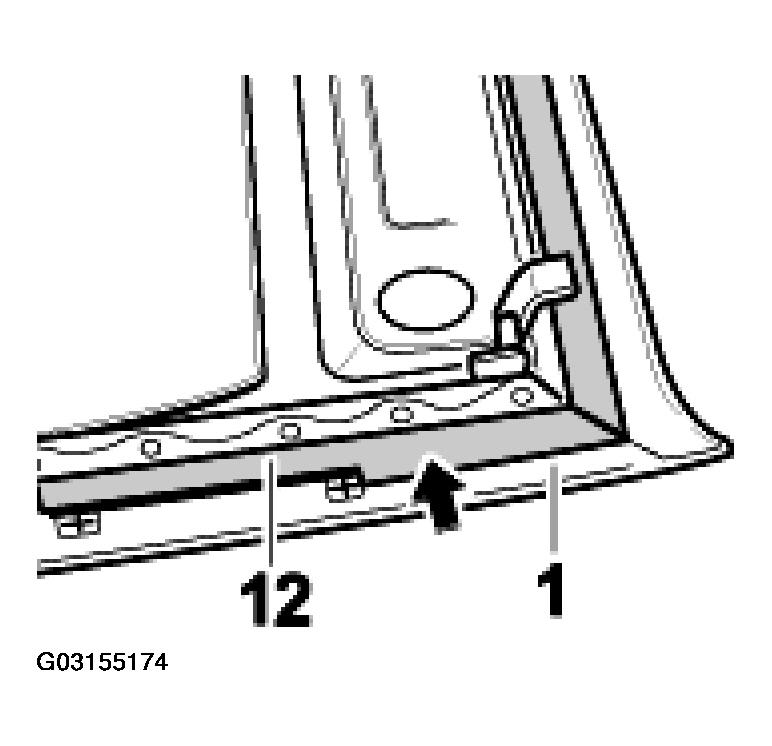

   Stick on a 2 cm wide strip of Nitto tape -12-  at the front left and right of the hardtop body -1-.

   Fig 7: Affixing Nitto Tape To Hardtop Body

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
8. Fitting roof frame seal and retaining rail

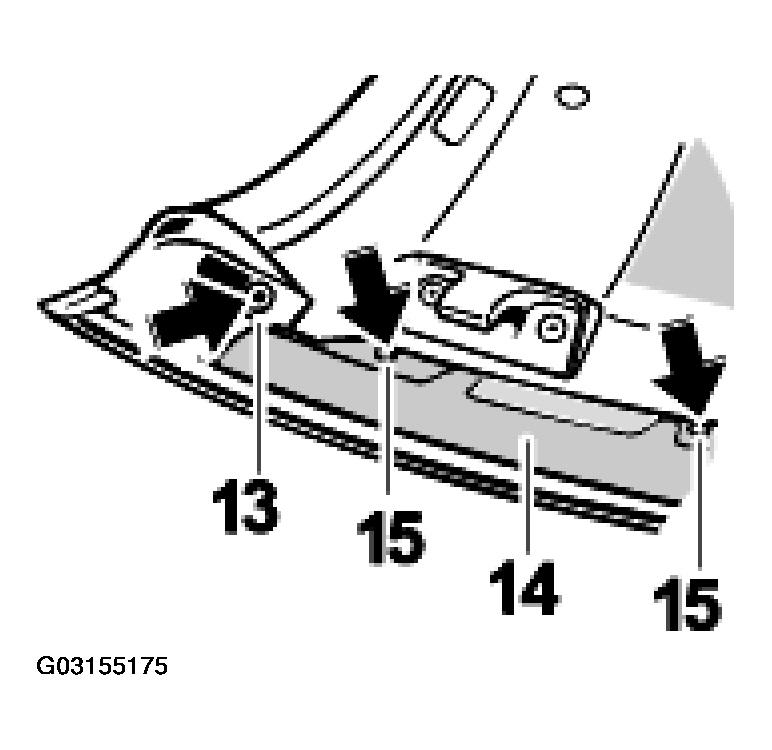

   1. Engage roof frame seal in the hardtop body -1-  at the corners and fasten with the fastening screw -13-  . See TIGHTENING TORQUES  .
   2. Position the retaining rail -14-  and tighten with the fastening screws -15-  .
   Fig 8: Fitting Roof Frame Seal And Retaining Rail

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
9. Fitting seal at sides of roof frame

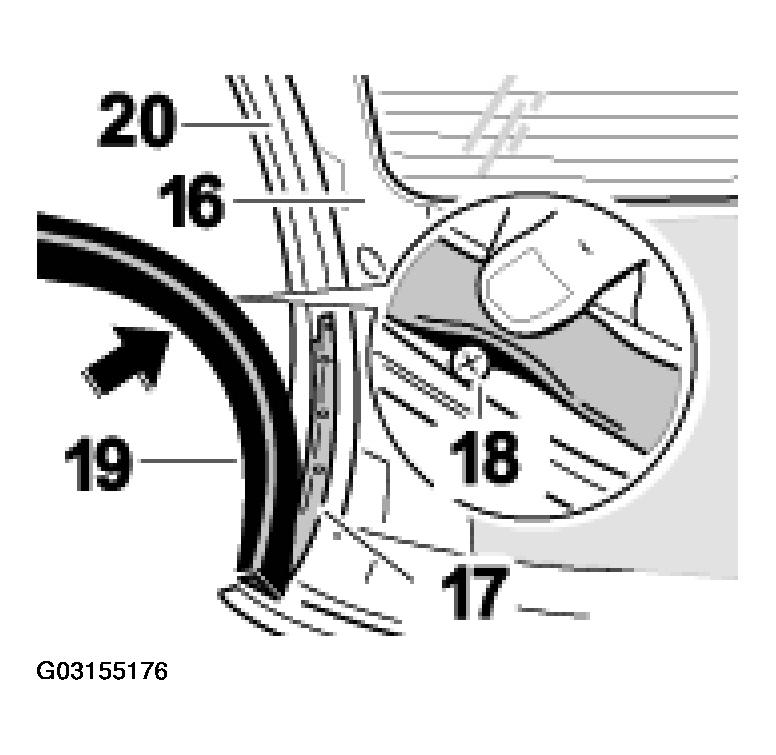

   1. The seal on the roof frame -16-  at the sides consists of two parts. Position the lower seal with the retaining strip -17-  on the roof frame -16-  and fasten with the fastening screws -18-  . See Fig 9 .
   2. Press the upper seal -19-  into the profile of the retaining rail -20-  . See Fig 9 .
   Fig 9: Fitting Seal At Sides Of Roof Frame

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

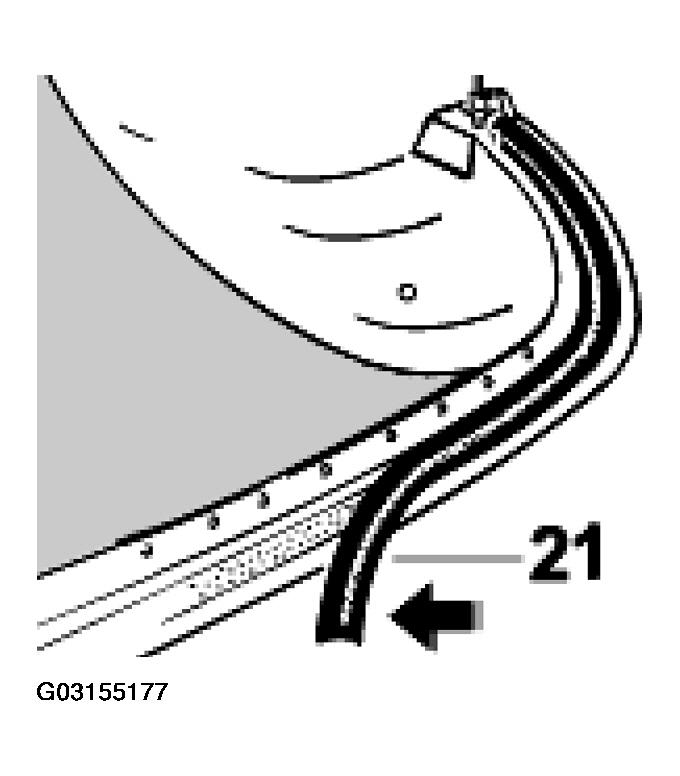

10. Fitting rubber seal
    1. Position the self-adhesive rubber seal -21-  at the rear and press firmly into place all around.
    Fig 10: Fitting Rubber Seal

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

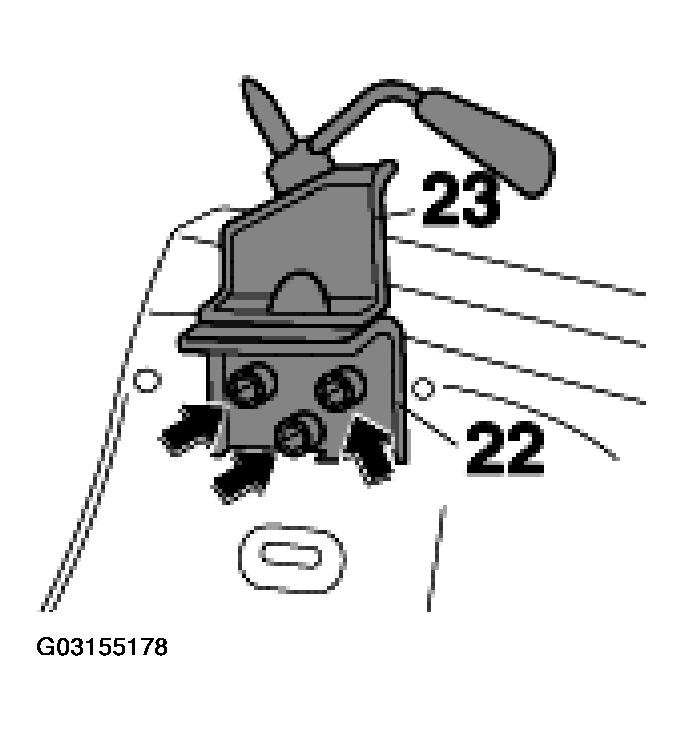

11. Fitting hardtop locking element
    1. Screw in and tighten fastening screws -22-  , see TIGHTENING TORQUES  , into the hardtop locking element -23-  .
    Fig 11: Fitting Hardtop Locking Element

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

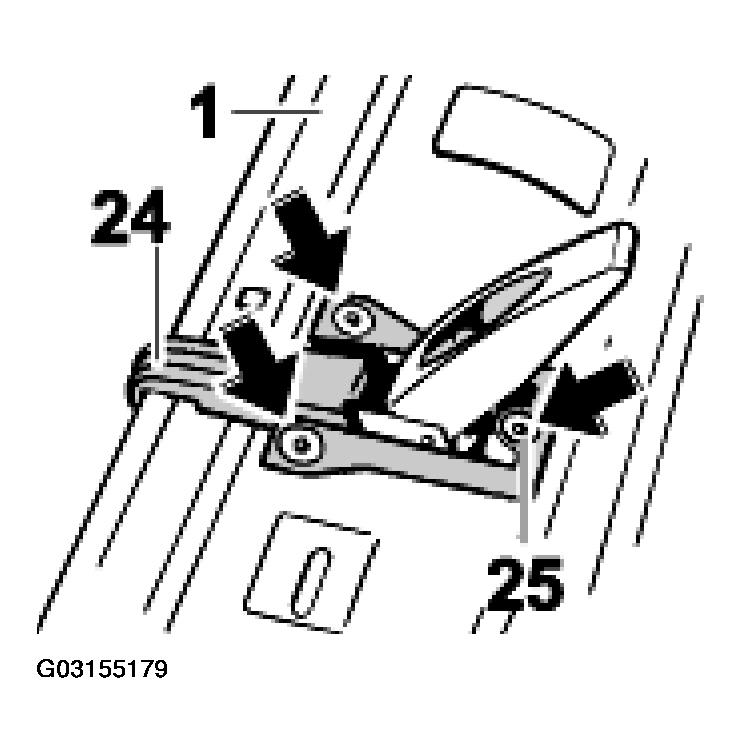

12. Fitting locking lever
    1. Position the locking lever -24-  on the hardtop body -1  and tighten with the fastening screws -25-  , see TIGHTENING TORQUES  .
    Fig 12: Fitting Locking Lever

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
13. Fitting centring pegs

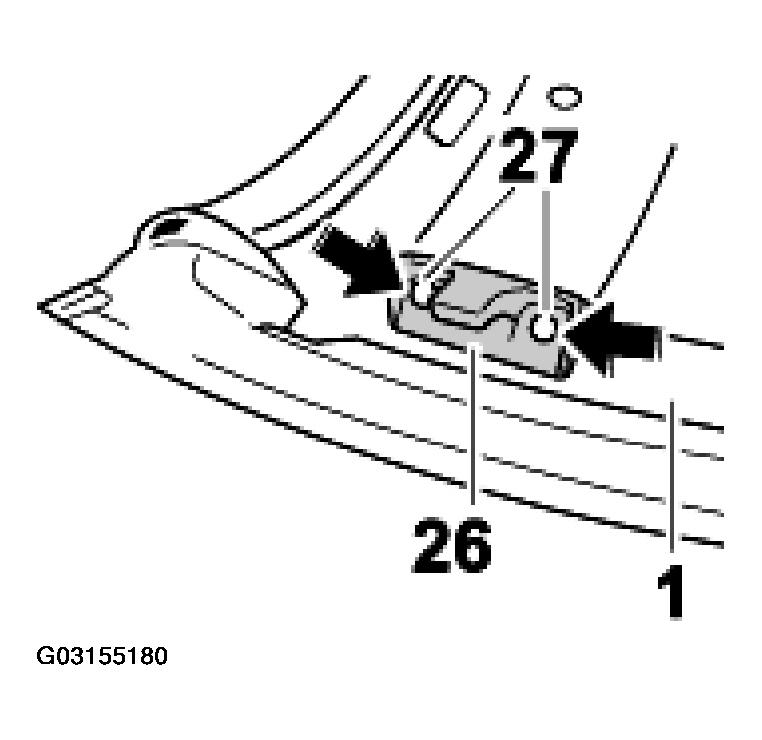

    1. Position the centring pegs -26-  on the hardtop body -1  and tighten with the fastening screws -27-  . See TIGHTENING TORQUES  .
    Fig 13: Fitting Centring Pegs
    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Turning hardtop

    Place hardtop on the assembly fixture and lock with the latching levers at the rear and the locking lever at front.

    Installing rear window

    Refer to REMOVING AND INSTALLING REAR WINDOW (HARDTOP) .

    Turning hardtop

    Place outer side of the hardtop on the assembly fixture.

14. Fitting interior trim parts
    NOTE:

    • Once an interior trim part has been clipped in once, the old plastic clips are no longer usable and must always be replaced.

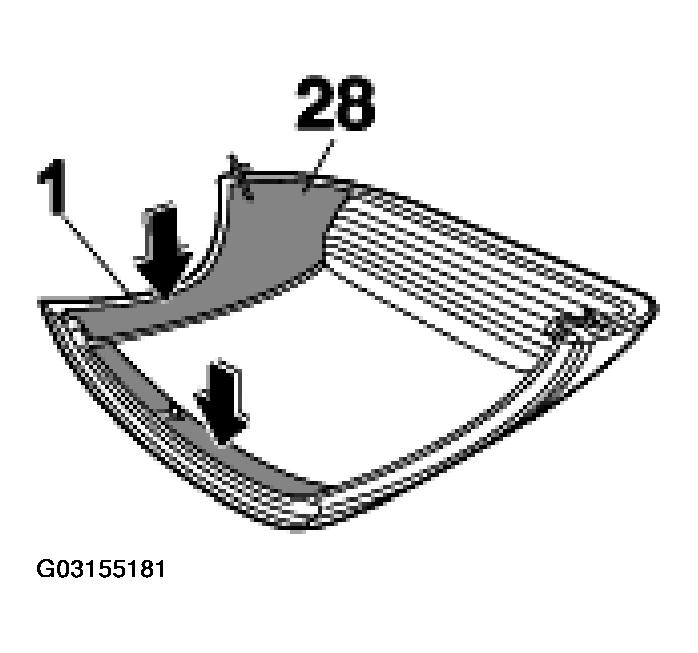

    1. Clip interior trim parts -28-  at the sides, front and rear into the hardtop body -1-  .
    Fig 14: Fitting Interior Trim Parts

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

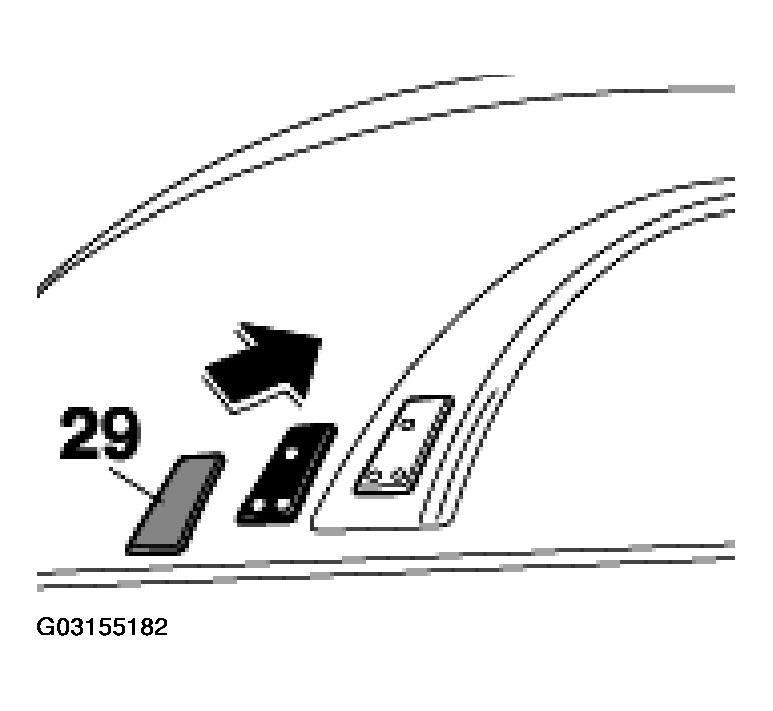

15. Fitting cover and bracket
    1. A self-adhesive strip is affixed on the bracket. Remove the backing paper from the adhesive strip and position and clip in the bracket on the hardtop body.
    2. Put the painted cover -29-  on the bracket.
    Fig 15: Fitting Cover And Bracket

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

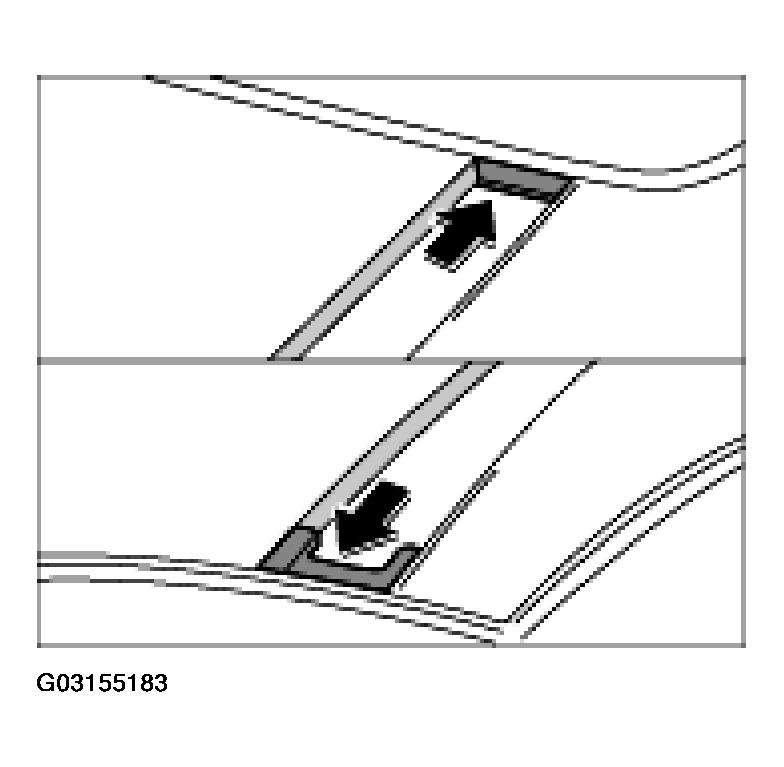

16. Applying putty on the roof ends
    1. Apply putty on the roof ends at the front and rear.
    Fig 16: Applying Putty On Roof Ends

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

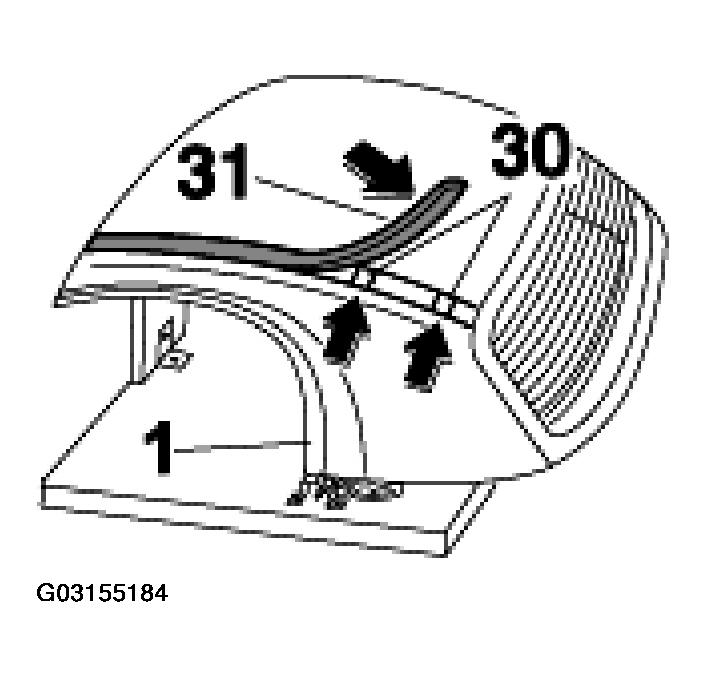

17. Clipping in roof strip clips and cover strips
    1. Fit the roof strip clip -30-  .
    2. Fit cover strip seal on the cover strip -31-  .
    3. Position cover strip on the hardtop body -1-  and press into the roof strip clips.

Fig 17: Clipping In Roof Strip Clips And Cover Strips

Courtesy of PORSCHE OF NORTH AMERICA, INC.
