Making swivel arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Make swivel arm -C- with basic material Multiplex plate 550 x 200 mm, 25 mm thick.

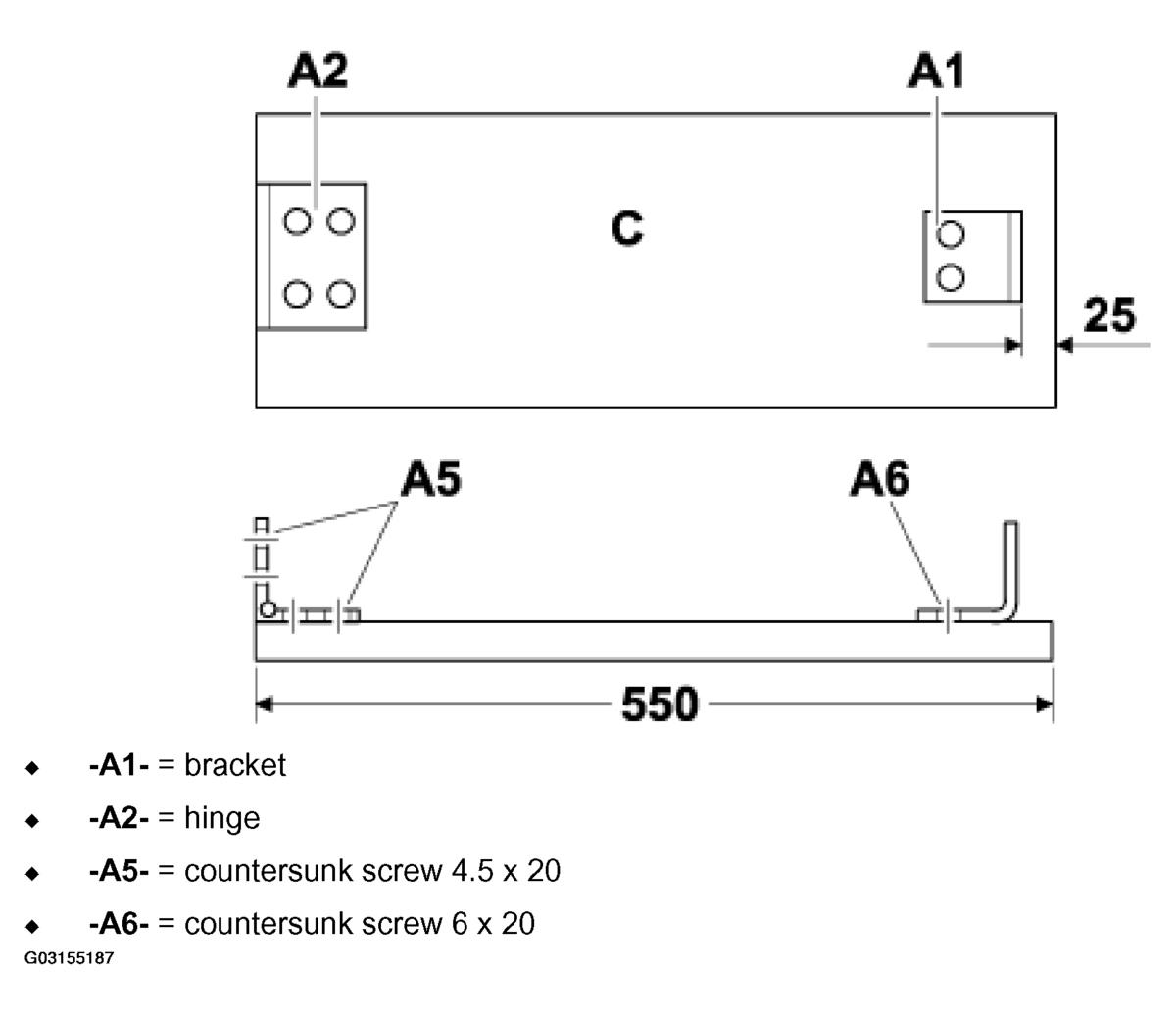

Fig 1: Identifying Swivel Arm Dimensions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Work procedure:
1. Fit bracket -A1- with 2 countersunk screws -A6- following the dimensions specified on the swivel arm -C- . See Fig 1 .
2. Fit hinge -A2- with 4 countersunk screws -A5- following the dimensions specified on the swivel arm -C- . See Fig 1 .
