Making support cheeks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Make support cheeks -B- with basic material Multiplex plate 600 x 120 mm, 25 mm thick.

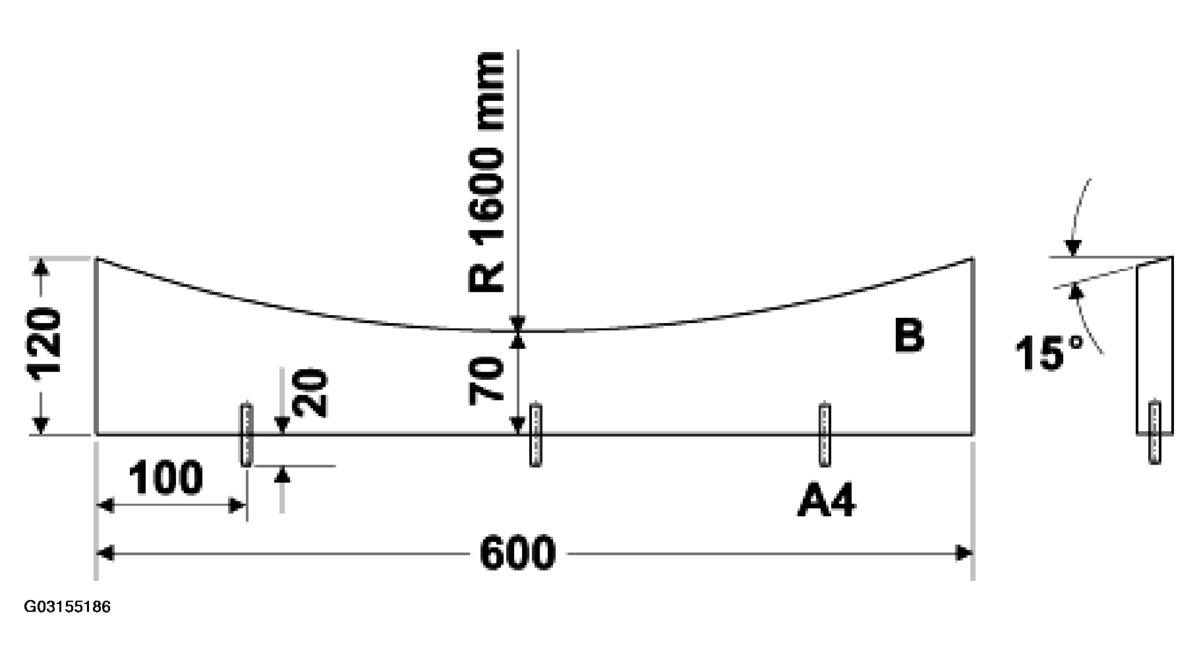

Fig 1: Identifying Support Cheeks Dimensions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A4 = Straight pin 6 M6 x 40 / B = Support cheek

Work procedure:
1. Transfer 160 mm radius to the multiplex plates.
2. Saw multiplex plates along the traced radius. The foot of the sabre saw must be tilted by 15° for this purpose.
3. Drill four 6 mm holes in the support radii of each support cheek to provide clearance for the Tucker bolts on the hardtop body. Obtain the dimensions from the hardtop body.
4. Drill three holes, 20 mm deep, 6 mm, per support to cheek to secure the support cheeks -B- to the base plate -D- with the straight pins -A4- 6 m6 x 40 from the set of fittings - attach support cheeks -B- . See Fig 1 .
