Fitting swivel and support cheeks on the basic plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Fit swivel arm -C- and support cheeks -B- on the ground plate -D- . See Fig 1 .

Basic material: Wood-core plywood 1500 x 900 mm, 19 mm thick

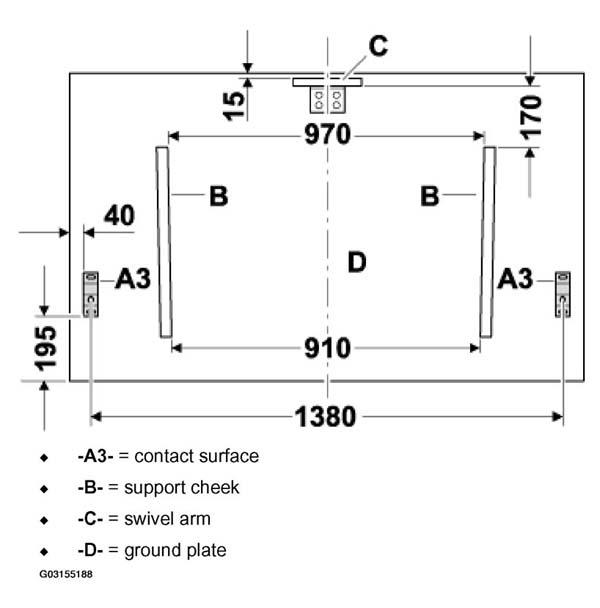

Fig 1: Fitting Swivel And Support Cheeks On Basic Plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Work procedure:
During assembly, all parts are positioned from the centre!
1. Measure and mark the ground plate -D- . See Fig 1 .
2. Fasten completed swivel arm -C- on the hinge -A2- with four 4.5 x 20 countersunk screws in accordance with the dimensions specified on the ground plate -D- . See Fig 1 .
3. Transfer hole pattern of the support cheeks -B- onto the base plate -D- in accordance with the specified dimensions, and drill holes using a 6-mm drill bit. See Fig 1 .
4. Fit support cheeks -B- over the prefitted straight pins -A4- onto the ground plate -D- . See Fig 1 .
