Fitting mounting points for the hardtop locking lever on the ground plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Fit mounting points -A3- for the hardtop locking lever on the ground plate -D- . See Fig 1 .

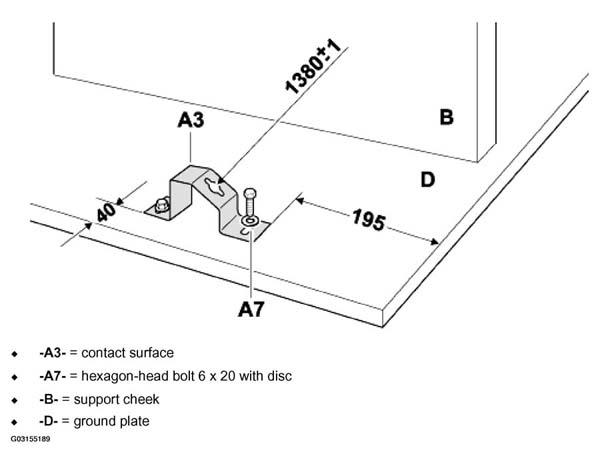

Fig 1: Fitting Mounting Points For Hardtop Locking Lever On Ground Plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Work procedure:
1. Fit mounting points -A3- both with hexagon-head bolts -A7- according to the dimensions specified on the ground plate -D- . See Fig 1 .
