Removing and installing rear emergency release - as of MY 2003

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

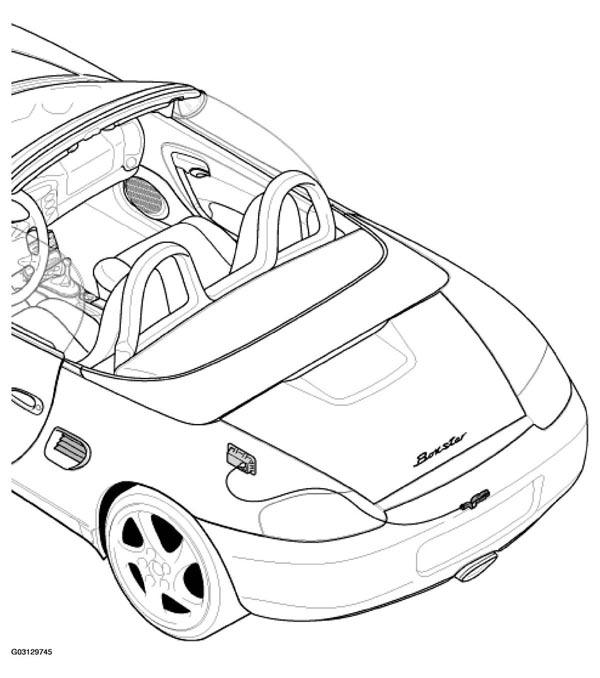

Fig 1: Identifying Rear Emergency Release - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

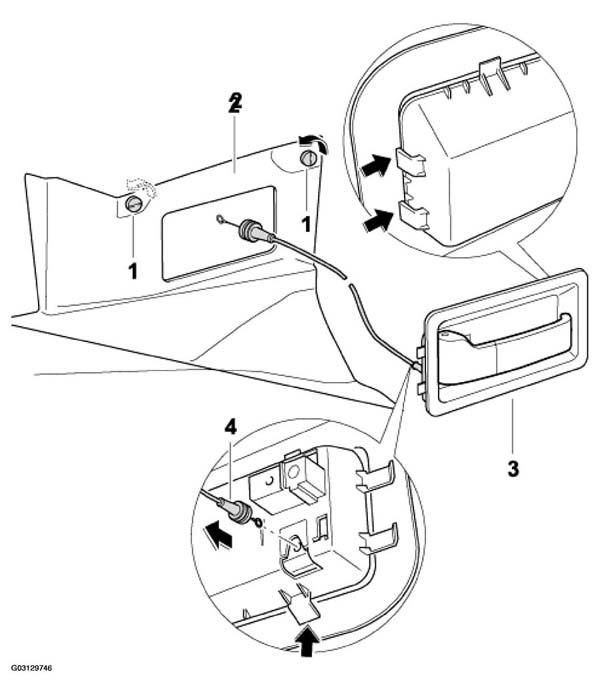

Fig 2: Removing And Installing Rear Emergency Release Components - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Only USA and Canada vehicles

REAR EMERGENCY RELEASE - AS OF MY 2003 REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Plugs	2	Twist plugs.	Twist plugs.
2	Carpet, Luggage compartment lining	1	Partly loosen luggage compartment lining carpet -2- . See Fig 2 .	Install luggage compartment lining carpet -2- . See Fig 2 .
3	Handle liner emergency release with bowden cable	1	Unclip handle liner -3-2-arrows- . See Fig 2 .	Clip in the handle liner -3-2- . See Fig 2 . Check the function of the emergency release. Engage the upper part of lid lock in the lower part of lid lock. Actuate the handle liner. The lower part of lid lock must unlock.
