Removing and installing lower part of lid lock at rear: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Observe the variant table of the installed bowden cables!
- See SURVEY OF INSTALLED BOWDEN CABLE VARIANTS

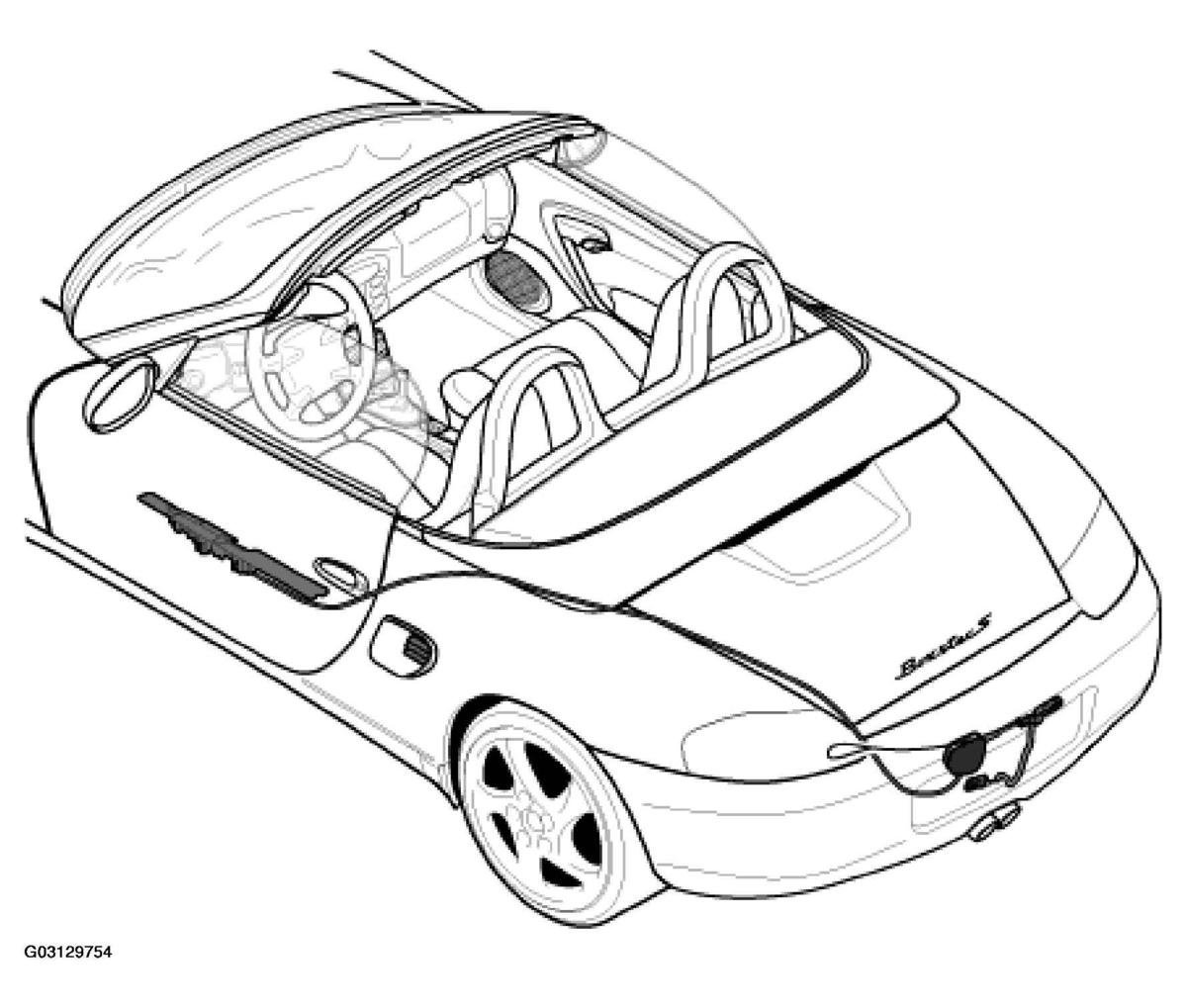

LOWER PART OF LID LOCK AT REAR REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|

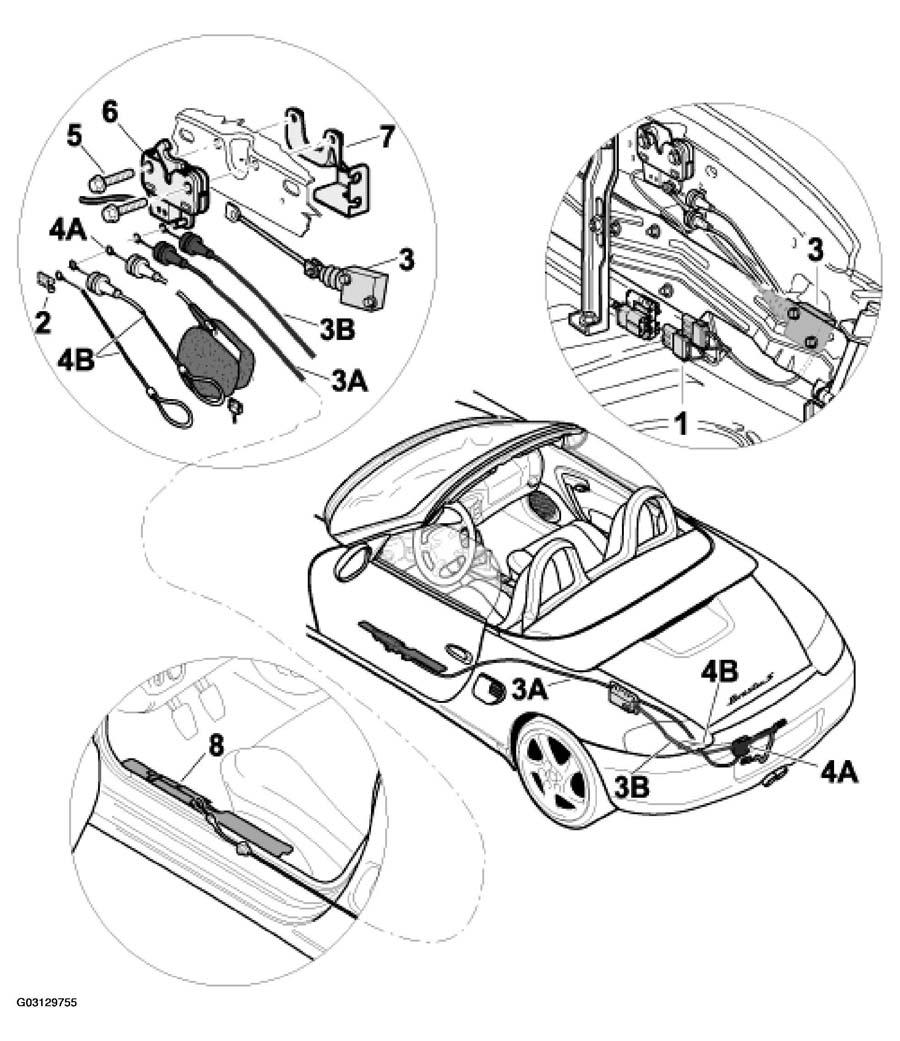

| 1 | Electrical plug connection, lower part of lock | 1 | Press the locking tabs on the let and right of the wiring harness plug connection -1- . See Fig 2 . | Connect wiring harness plug connection -1- . See Fig 2 . |
| 2 | Retainer | 1 | ||
| 3 | Guide rod with servo motor unit | 1 | See REMOVING AND INSTALLING LID RELEASE MOTOR | See REMOVING AND INSTALLING LID RELEASE MOTOR |
| 3A | Bowden cable | 1 | Press the bowden cable -3A-7- . See Fig 2 . | Press the bowden cable -3A-7- . See Fig 2 . |
| 3B | Bowden cable emergency release, only USA vehicles As of model year 2003 | 1 | Press the bowden cable -3B-7- . See Fig 2 . | Press the bowden cable -3B-7- . See Fig 2 . |
| 4A | Bowden cable with servo motor unit | 1 | Press or pull the bowden cable with servo motor unit -4A-7- . See Fig 2 . | Press the bowden cable with servo motor unit -4A-7- . See Fig 2 . |
| 4B | Bowden cable emergency operation | 1 | ||
| 5 | Fastening screws | 2 | Unscrew. | Screw the lower part of the lock -6-7-5-10 Nm (7.5 ftlb.)- . See Fig 2 . |
| 6 | Lower part of lock | 1 | Screw lower part of lock in place with the holder -7- . See Fig 2 . | |
| 7 | Holder | 1 | ||
| 8 | Sill cover with handle liner | 1 | See Disassembling and assembling release for the front cover - up to model year 2000 | See Disassembling and assembling release for the front cover - up to model year 2000 |
