Removing and installing bowden cable for lock actuation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

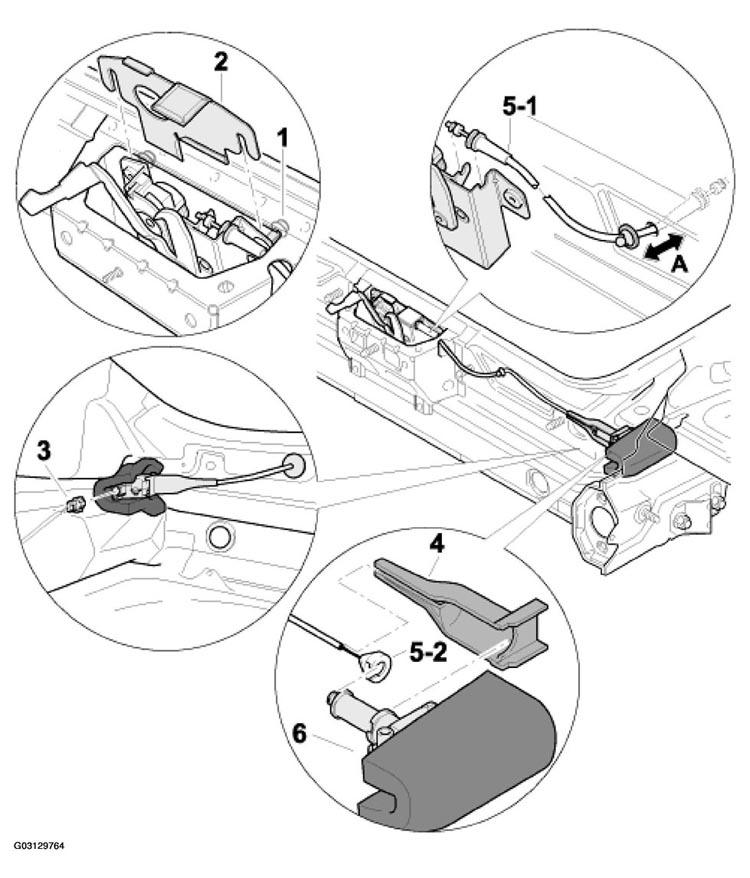

BOWDEN CABLE FOR LOCK ACTUATION REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head bolt | 2 | Back off by 2 turns. | Tightening torque:-10 Nm (7.5 ftlb.) |
| 2 | Cover panel | 1 | Lift out of the lower part of the lid lock. | Position on lower part of lid lock. |
| 3 | Electrical plug connection | 1 | Disconnect. | Connect. |
| 4 | Guide for bowden cable | 1 | Pull off. | Push on. |
| 5-1 5-2 |
Bowden cable | 1 | Disengage nipple of bowden cable -5-1-arrow A- . See Fig 1 . | Pull the rubber sleeve -arrow A-6-1-arrow A-5-1- . See Fig 1 . |
| 6 | Servo motor for hood release | 1 | Extend bowden cable -5-2- . See Fig 1 . | Insert bowden cable -5-2- . See Fig 1 |
