Removing and installing front lower part of lid lock - as of MY 2001: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

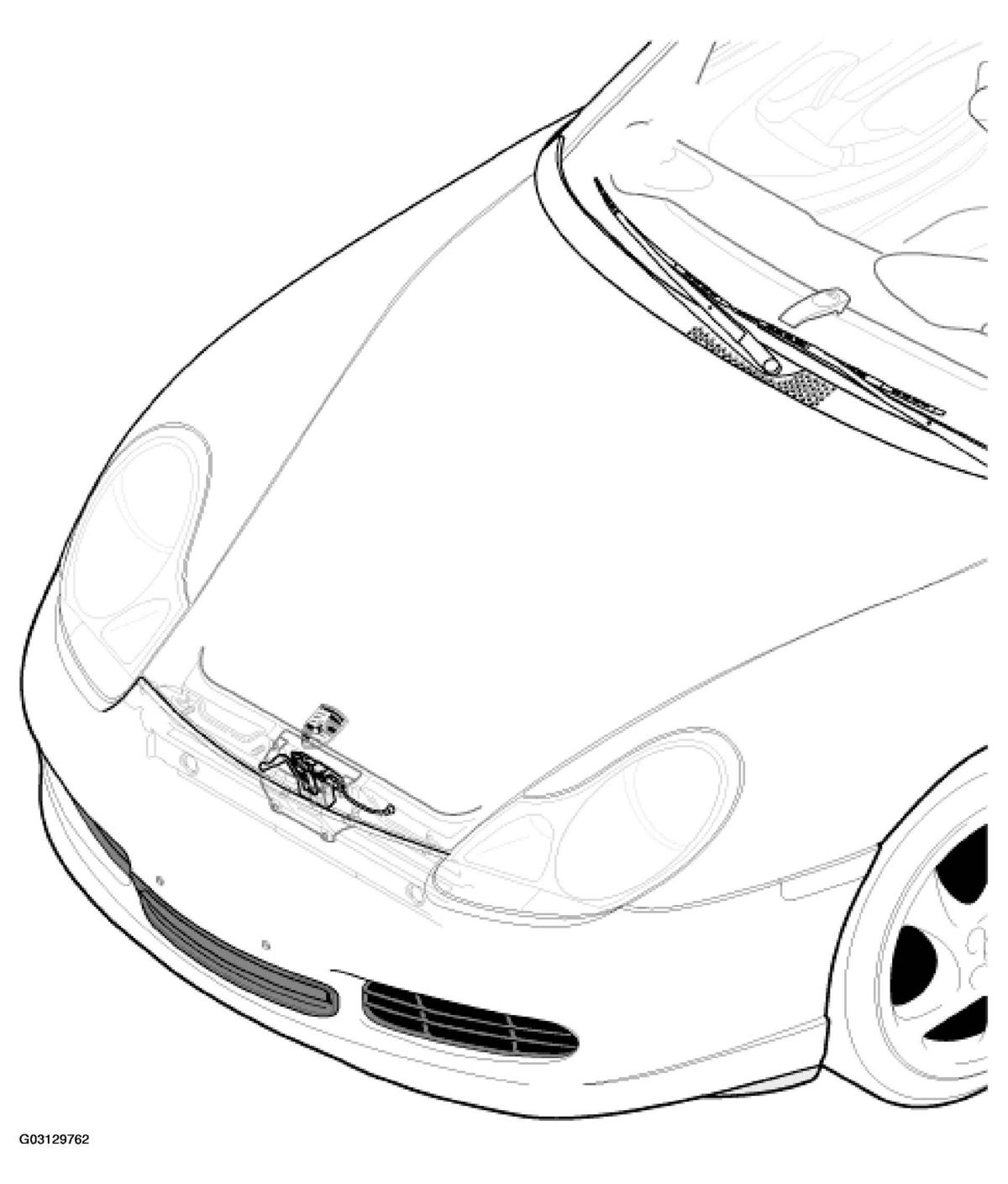

Fig 1: Identifying Front Lower Part Of Lid Lock - As Of MY 2001

Courtesy of PORSCHE OF NORTH AMERICA, INC.

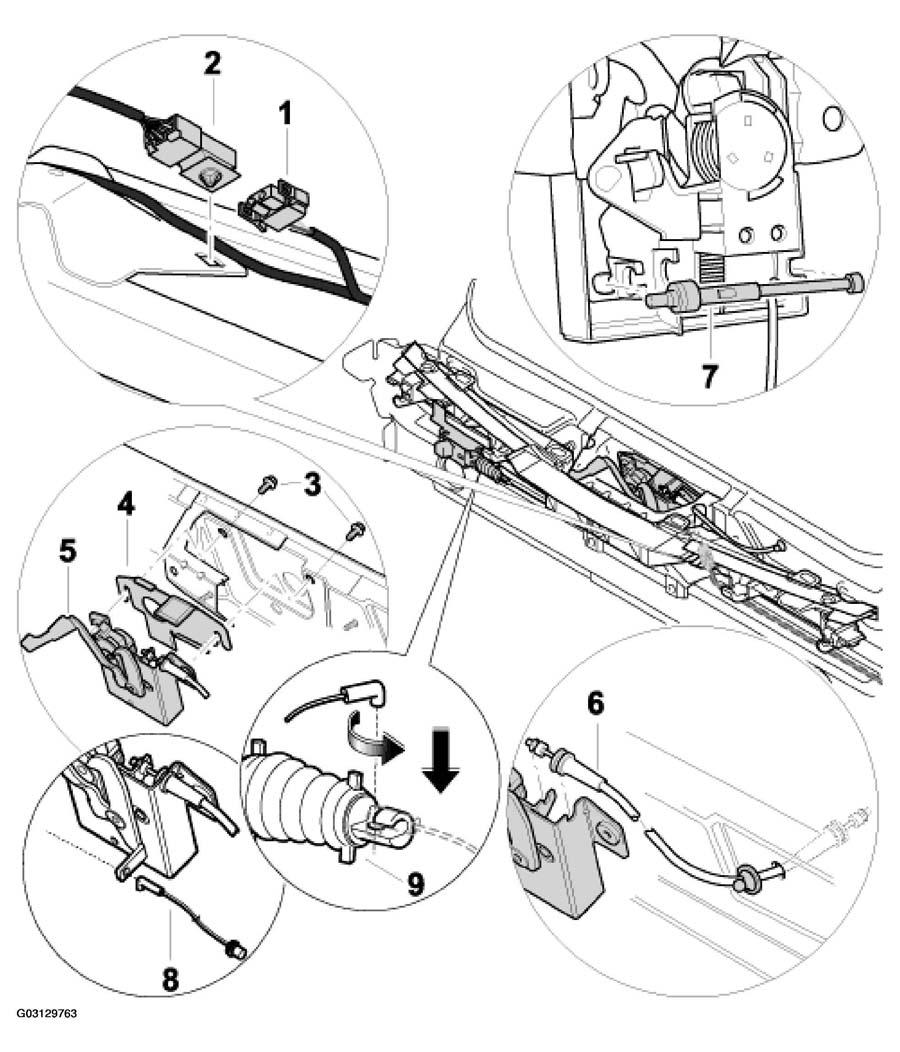

Fig 2: Removing And Installing Front Lower Part Of Lid Lock Components (As Of MY 2001)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LOWER PART OF LID LOCK REMOVING AND INSTALLING PROCEDURE (AS OF MY 2001)

No.	Designation	Qty.	Removal	Installation
1	Electrical plug connection lock side	1	Turn in -direction of arrow A- . See Fig 2 .	Position electrical plug connection on the lock panel and turn in -direction of arrow B- . See Fig 2 .
2	Electrical plug connection	1	At -arrow C- . See Fig 2 .	Plug in the electrical plug connection.
3	Hexagon-head bolt	2	Undo.	Screw in. -10 Nm (7.5 ftlb.)- Tightening torque: -10 Nm (7.5 ftlb.)-
4	Cover panel	1	Separate from lower part of lid lock.	Position on lower part of lid lock.
5	Lower part of lid lock	1	Undo.	Position on closing panel.
6	Bowden cable	1	Disengage nipple of the bowden cable -6- . See Fig 2 .	Press in bowden cable cover -6- . See Fig 2 .
7	Bowden cable Emergency release	1	Press bowden cable -7- . See Fig 2 .	Press bowden cable -7- . See Fig 2 .
8	Bowden cable emergency release Only USA and Canada vehicles	1	Twist the bowden cable -8- direction of the arrow-9- . See Fig 2 .	See CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT)
9	Servo motor emergency release Only USA and Canada vehicles	1	See REMOVING AND INSTALLING LID RELEASE MOTOR	See CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT)
