Removing and installing front lid hinge

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

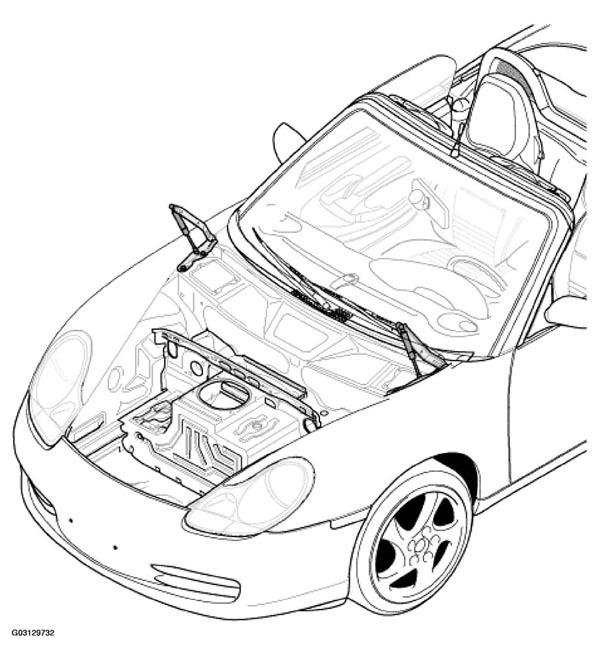

Fig 1: Identifying Front Lid Hinge

Courtesy of PORSCHE OF NORTH AMERICA, INC.

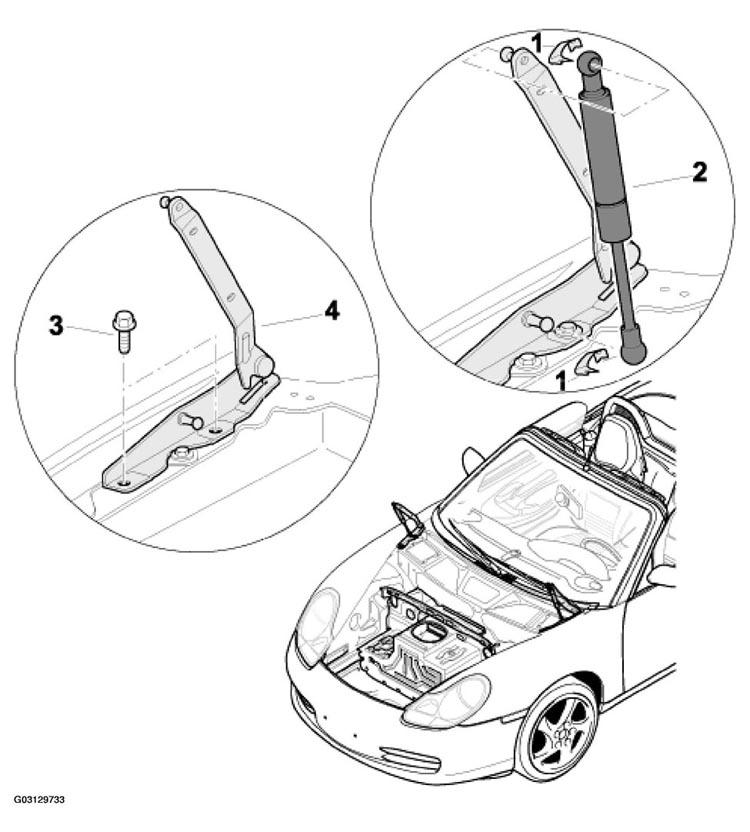

Fig 2: Removing And Installing Front Lid Hinge Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LID HINGE REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Clip	4	Press out with a narrow screwdriver.	Press in.
2	Pneumatic spring	4
3	Combination screw M6 x 14 Hinge	4	Undo fastening screws -3-4- . See Fig 2 .	Position hinge -4-3-10 Nm (7.5 ftlb.)- . See Fig 2 .
4	Hinge	1
