Removing and installing front emergency release - as of MY 2003: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Shown on 911 Carrera (996).

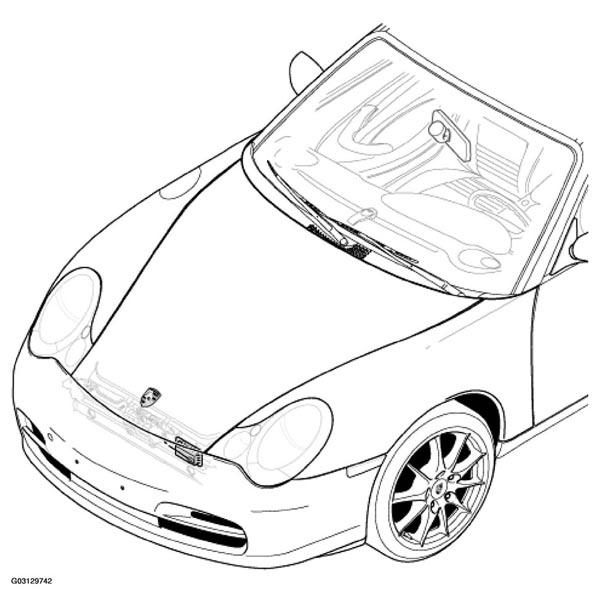

Fig 1: Identifying Front Emergency Release - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

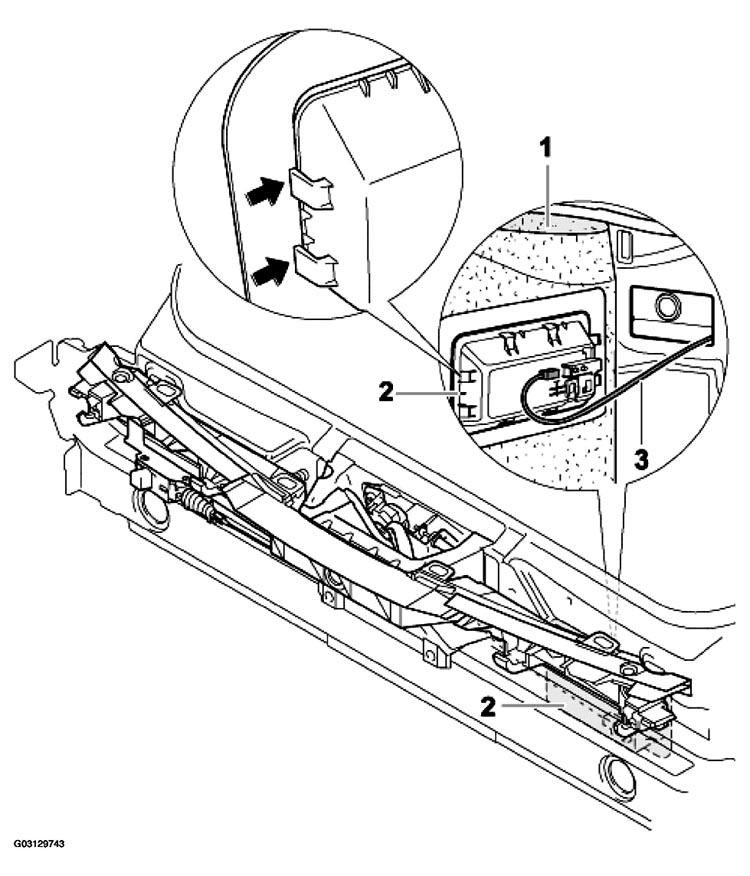

Fig 2: Removing And Installing Front Emergency Release Components - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Only USA and Canada vehicles

FRONT EMERGENCY RELEASE - AS OF MY 2003 REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Luggage compartment lining	1	Partly loosen luggage compartment lining.	Install luggage compartment lining.
2	Handle liner emergency release	1	Unclip handle liner -2-1-arrows- . See Fig 2 .	Clip handle liner -2-1- . See Fig 2 .
3	Electrical plug connection	1	Disconnect electrical plug connection -3- . See Fig 2 .	Plug in electrical plug connection -3- . See Fig 2 . See CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT)
