Removing and installing filler flap: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

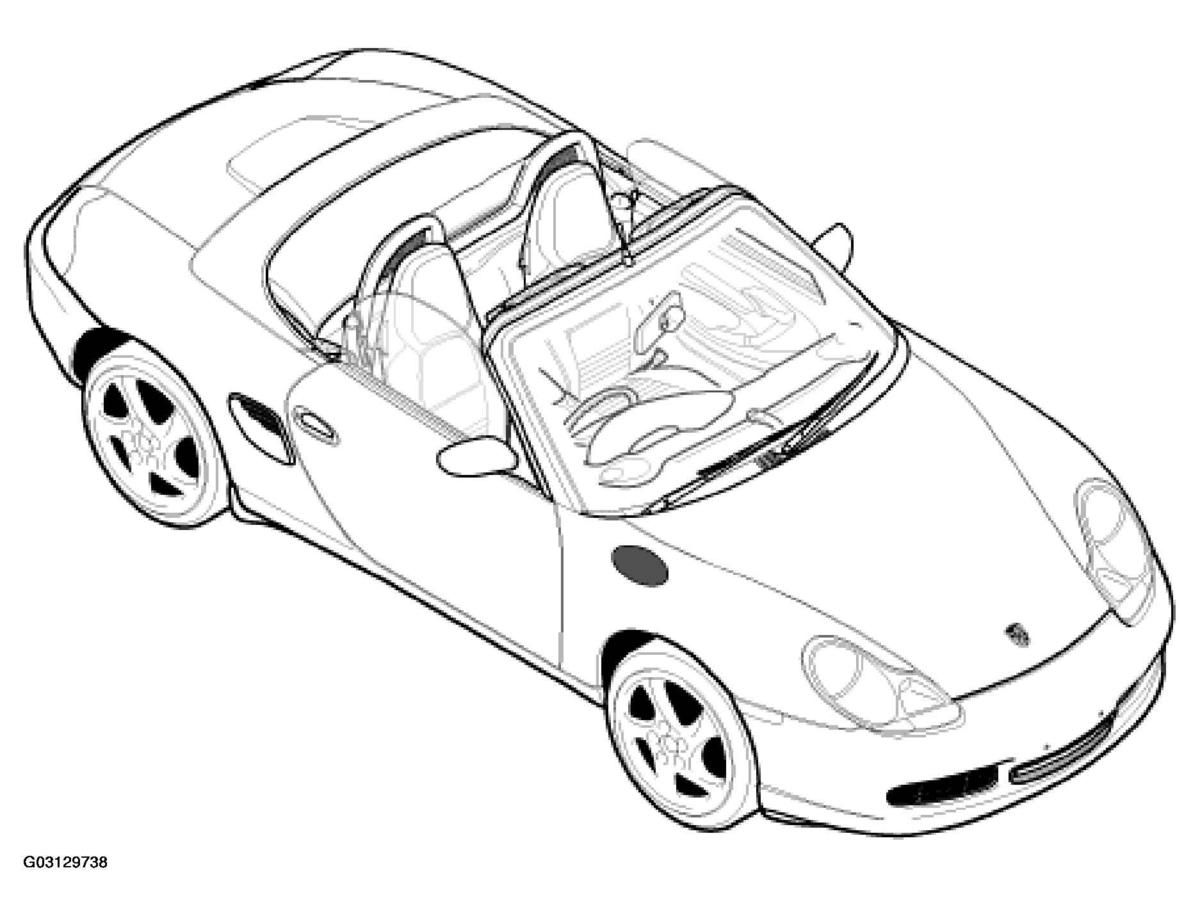

Fig 1: Identifying Fuel Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Removing And Installing Fuel Filler Flap Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FILLER FLAP REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Filler flap	1	Insert a narrow screwdriver from above in front of the clip -arrow A-direction of arrow B-1- . See Fig 2 .	Position the filler flap -1- . See Fig 2 .
2	Plastic hinge	1	Insert the removal tool at the locking lugs on the left and right -2-direction of arrow C-1- . See Fig 2 . -2-direction of arrow C-1- . See Fig 2 . and lift via the locking lugs, remove the plastic hinge -2-direction of arrow C-1- . See Fig 2 .	Position the plastic hinge -2-1-direction of arrow D- . See Fig 2 .
