Removing and installing support for cap release
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- In order to remove the support for the cap release, the front seat must be removed. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .

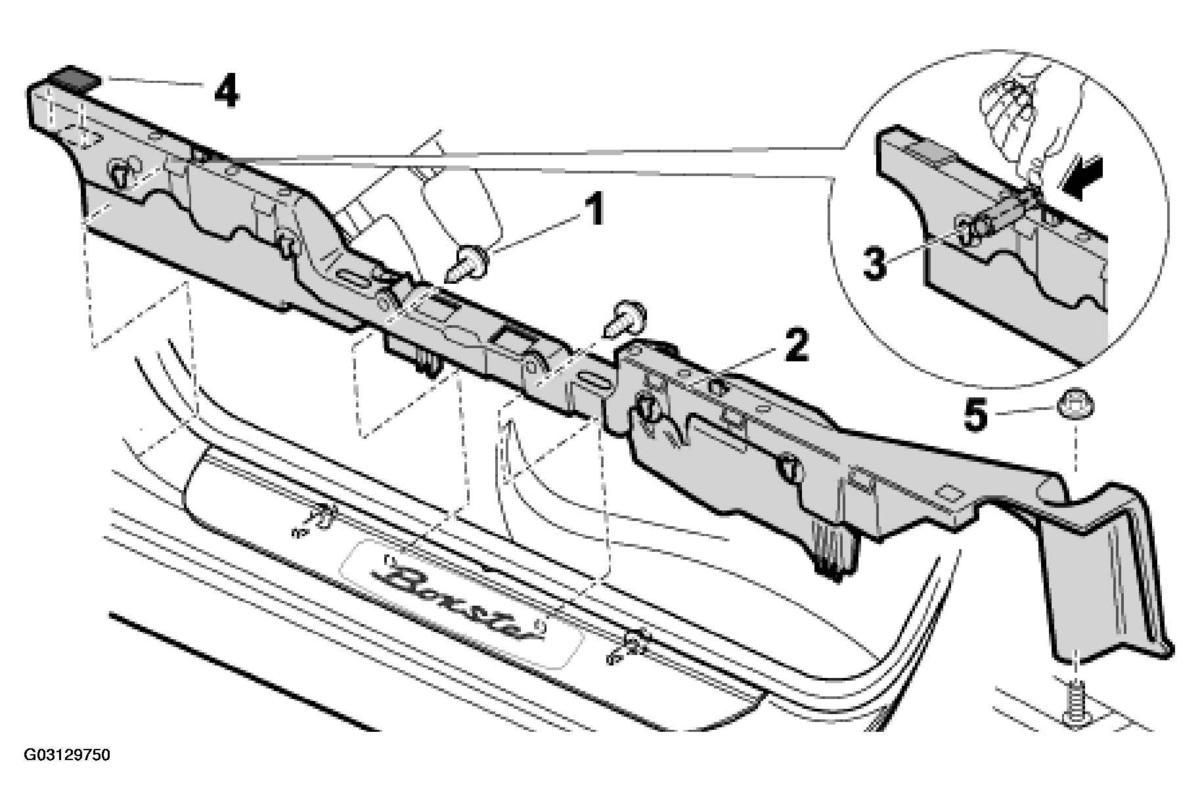

SUPPORT FOR CAP RELEASE REMOVING AND INSTALLING PROCEDURE (UP TO MY 2000)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screw | 2 | Unscrew. | Screw in. |
| 2 | Support for cap release | 1 | Preassembled dowel pin -3-2- . See Fig 1 . | |
| 3 | Locating pin | 1 | Pull out the pin. | Press in the pin. |
| 4 | Felt support | 1 | Pull off. | Check, if necessary, replace. |
| 5 | Plastic nut | 1 |
