Disassembling release for front cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

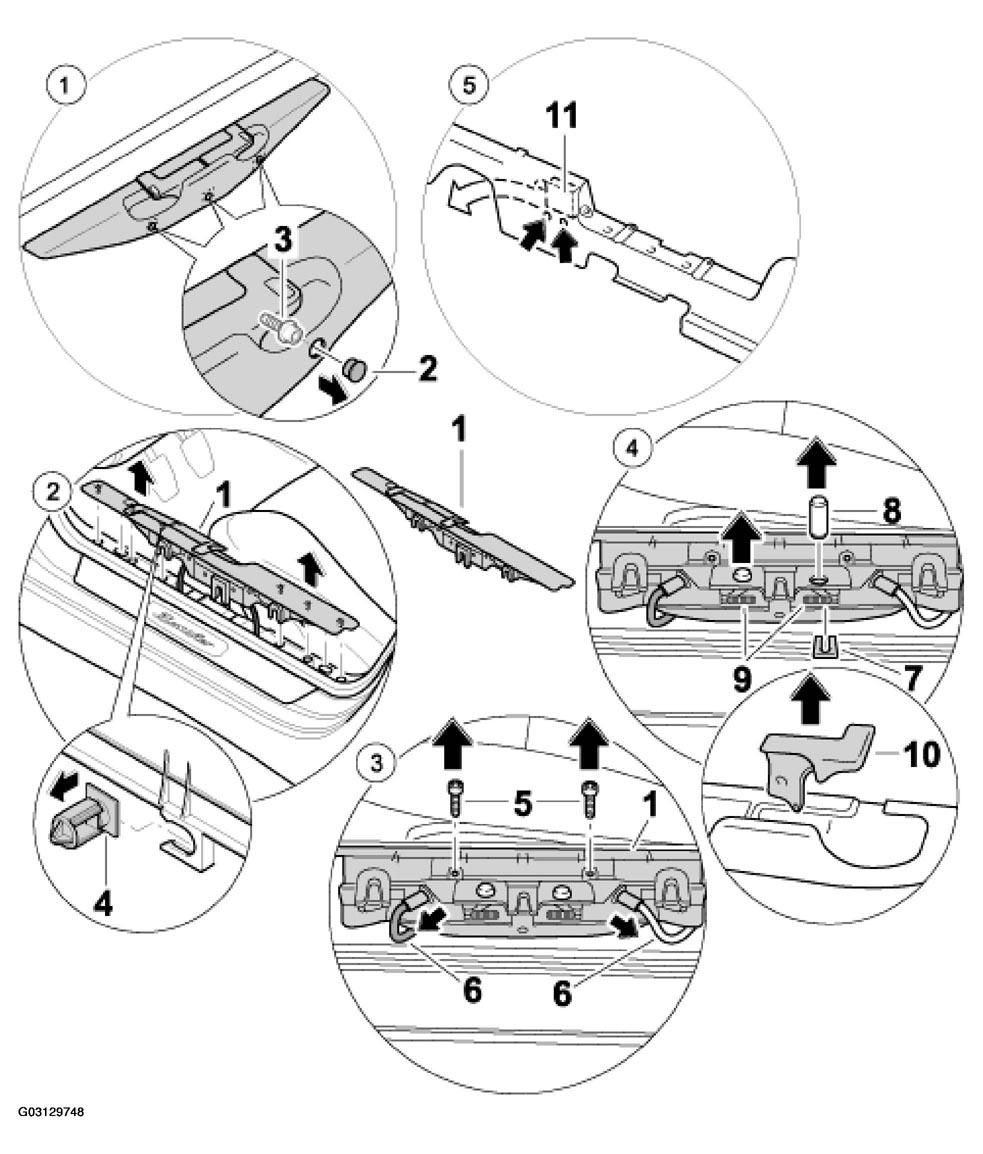

Fig 1: Disassembling Release For Front Cover Components (Up To MY 2000)
G03129748Courtesy of PORSCHE OF NORTH AMERICA, INC.
RELEASE FOR FRONT COVER DISASSEMBLING PROCEDURE (UP TO MY 2000)

No. Procedure Instructions
1 Unscrewing bolts hexagon socket head bolts -3-  . See Fig 1 . Remove plastic plugs -2-3-1-  . See Fig 1 .
2 Removing sill -1-  . See Fig 1 . Lift sill -1-4-  . See Fig 1 .
3 Removing bowden cables -6-  . See Fig 1 . Unscrew fastening screws -5-6-1-  . See Fig 1 .
4 Remove actuating levers -10-  . See Fig 1 . Press retainer SLB 6 -7-8-8-10-1-10-1-  . See Fig 1 .
5 Remove actuating element -11-  . See Fig 1 . Unscrew fastening screws from the actuating element -8-  . See Fig 1 .
