Assembling release for front lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

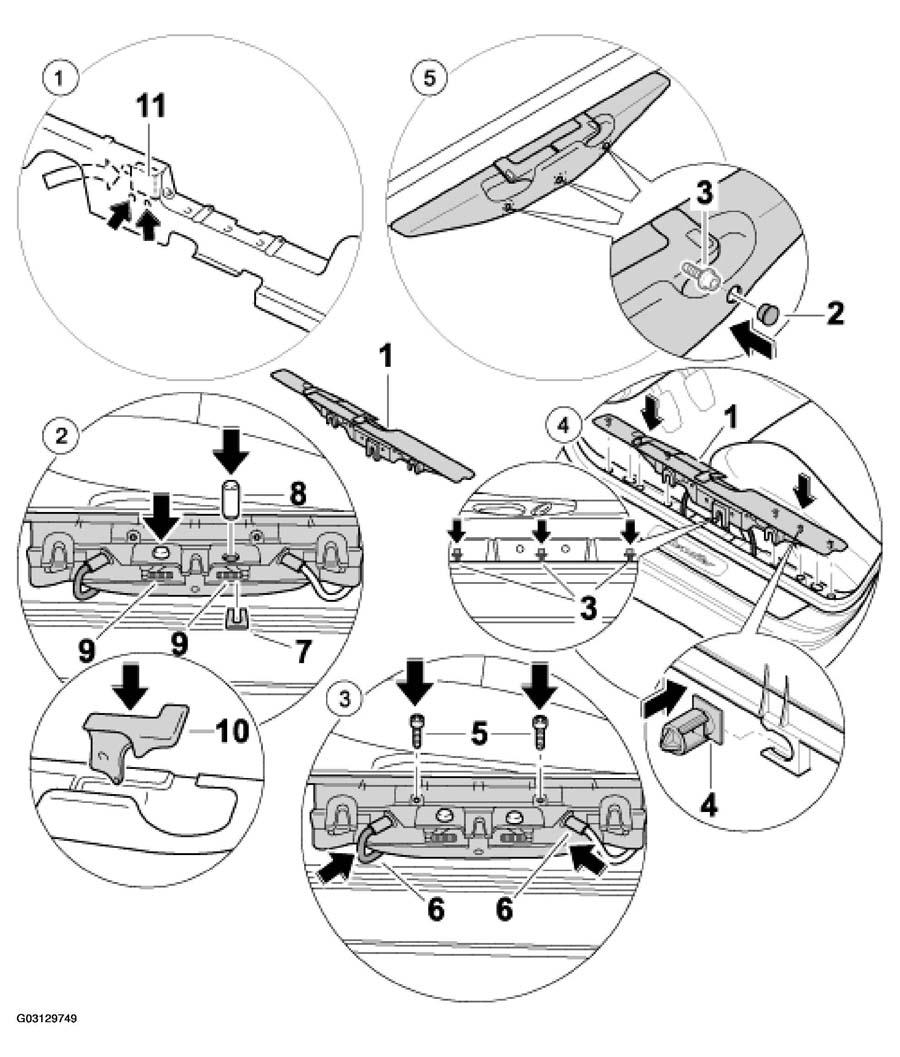

Fig 1: Assembling Release For Front Lid Components (Up To MY 2000)
G03129749Courtesy of PORSCHE OF NORTH AMERICA, INC.
RELEASE FOR FRONT LID ASSEMBLING PROCEDURE (UP TO MY 2000)

No. Procedure Instructions
1 Install actuating element -11-  . See Fig 1 . Insert the electrical plug connection from the actuating element. Position the actuating element -11-  . See Fig 1 .
2 Install actuating levers -10-  . See Fig 1 . Position the actuating lever -10-1-9-8-10-7-  . See Fig 1 .
3 In stall bowden cables -6-  . See Fig 1 . Insert the bowden cable -6-1-6-5-  . See Fig 1 .
4 Install sill -1-  . See Fig 1 . Clip in new fastening clips -4-1-  . See Fig 1 .
5 Screw down sill -1-  . See Fig 1 . Screw down the fastening screws -3-2-  . See Fig 1 .
