Disassembling release for rear lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

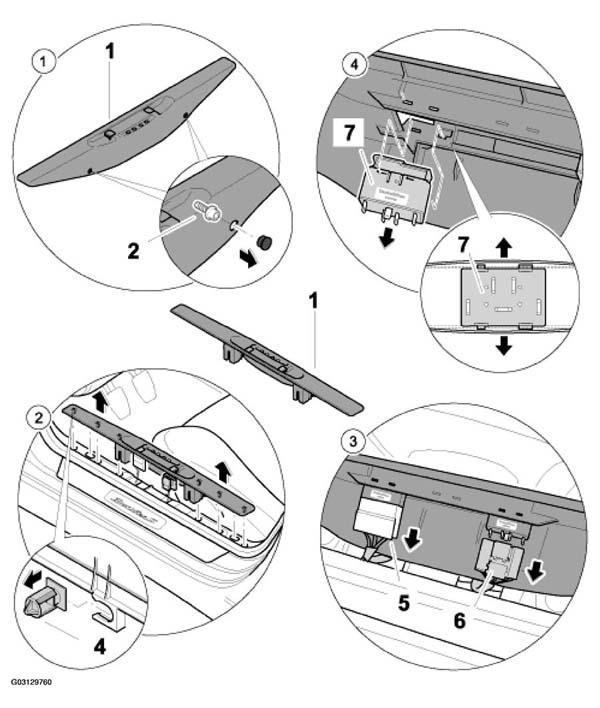

Fig 1: Disassembling Release For Rear Lid Components (As Of MY 2001)
G03129760Courtesy of PORSCHE OF NORTH AMERICA, INC.
RELEASE FOR REAR LID DISASSEMBLING PROCEDURE (AS OF MY 2001)

No. Procedure Instructions
1 Undoing hexagon socket head bolts -2-  . See Fig 1 . Remove plastic plugs -3-2-  . See Fig 1 .
2 Removing sill -1-  . See Fig 1 . Lift sill -1-4-  . See Fig 1 .
3 Pulling off plug connections -5, 6-  . See Fig 1 . Pull off plug connections -5, 6-  . See Fig 1 .
4 Removing actuating switches of rear lid -7, 8-  . See Fig 1 . Press the fastening ribs of the sill -arrows-7-  . See Fig 1 .
