Assembling release for front lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

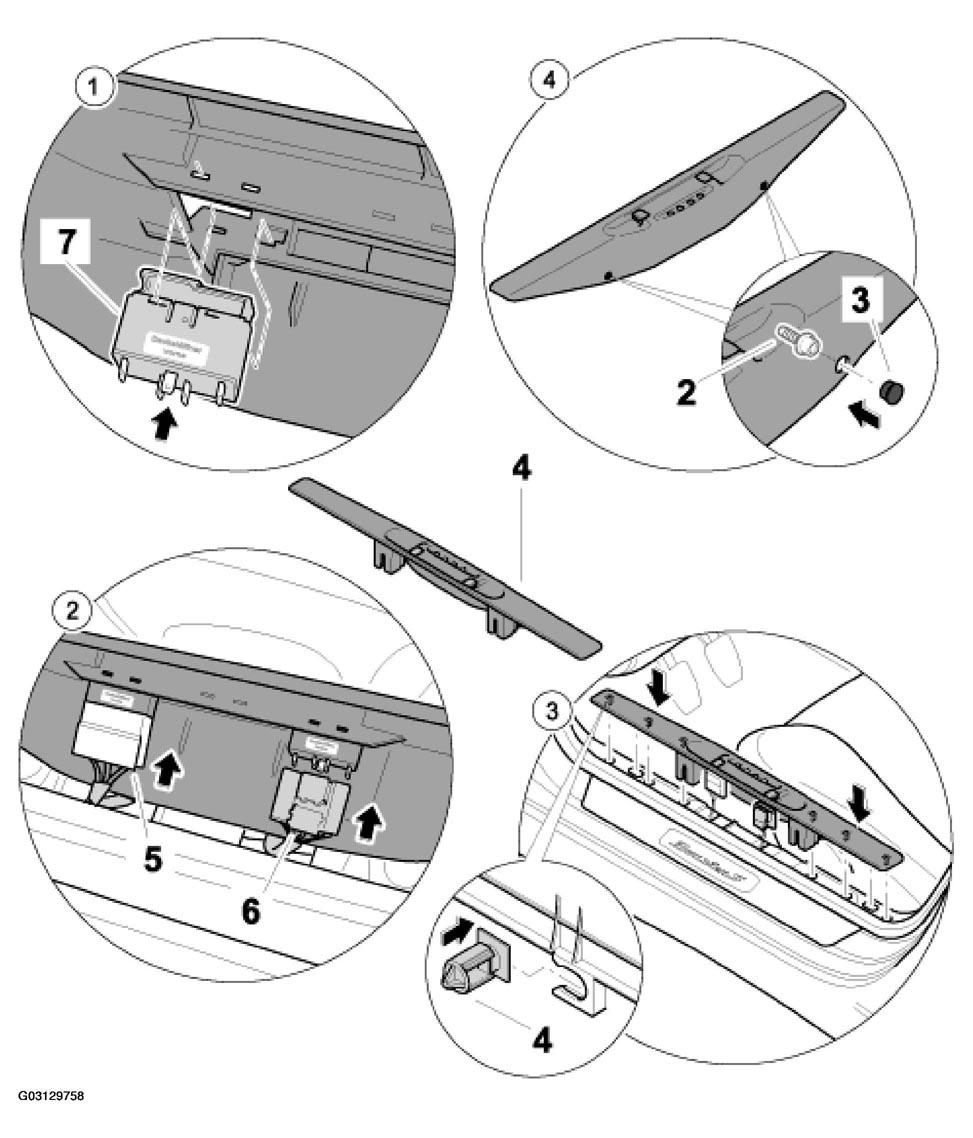

Fig 1: Assembling Release For Front Lid Components (As Of MY 2001)
G03129758Courtesy of PORSCHE OF NORTH AMERICA, INC.
RELEASE FOR FRONT LID ASSEMBLING PROCEDURE (AS OF MY 2001)

No. Procedure Instructions
1 Installing actuating switch of front lid -7-  . See Fig 1 . Clip locking tabs of the actuating switch of the front lid -7-  . See Fig 1 .
2 Joining plug connections -5, 6-  . See Fig 1 . Push plug connections -5, 6-  . See Fig 1 .
3 Attaching sill -1-  . See Fig 1 . Clip in new fastening clips -4-1-  . See Fig 1 .
4 Tightening hexagon socket head bolts -2-  . See Fig 1 . Screw in hexagon socket head bolts -2-3-  . See Fig 1 .
