Replacing the Boxster model logo

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

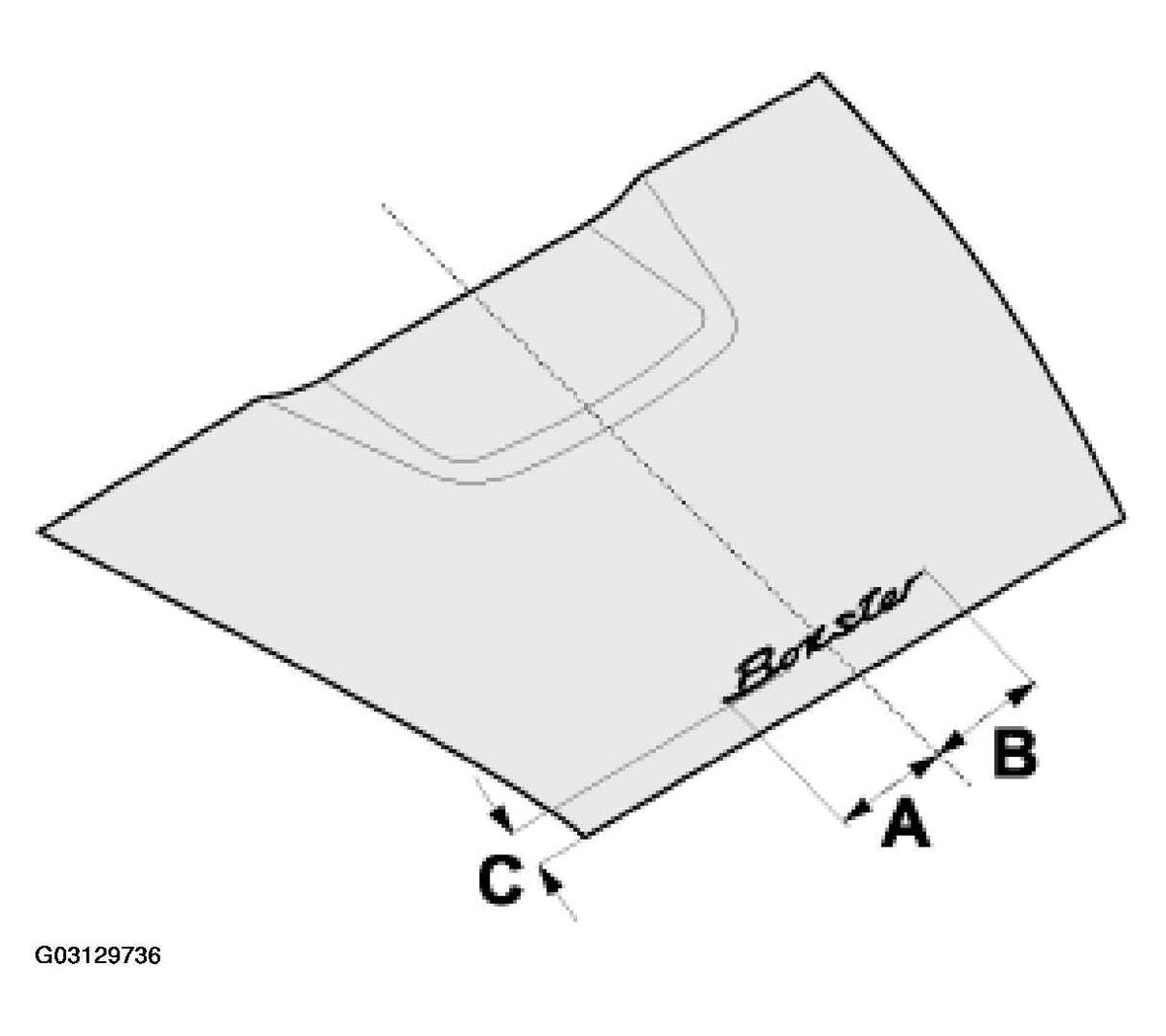

Fig 1: Replacing Boxster Model Logo
G03129736Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Determine the middle of the cover.
  2. Position the -Boxster-  logo with the dimensions -A and B = 141 mm-  in Fig 1 and -C = 45+/-1 mm-  in Fig 1 on the rear cover and affix.
